9sjs

Cryo-EM structure of Human Apoferritin at pH 4

Method: ELECTRON MICROSCOPY D_max: 131.5 Å Quality: GOOD

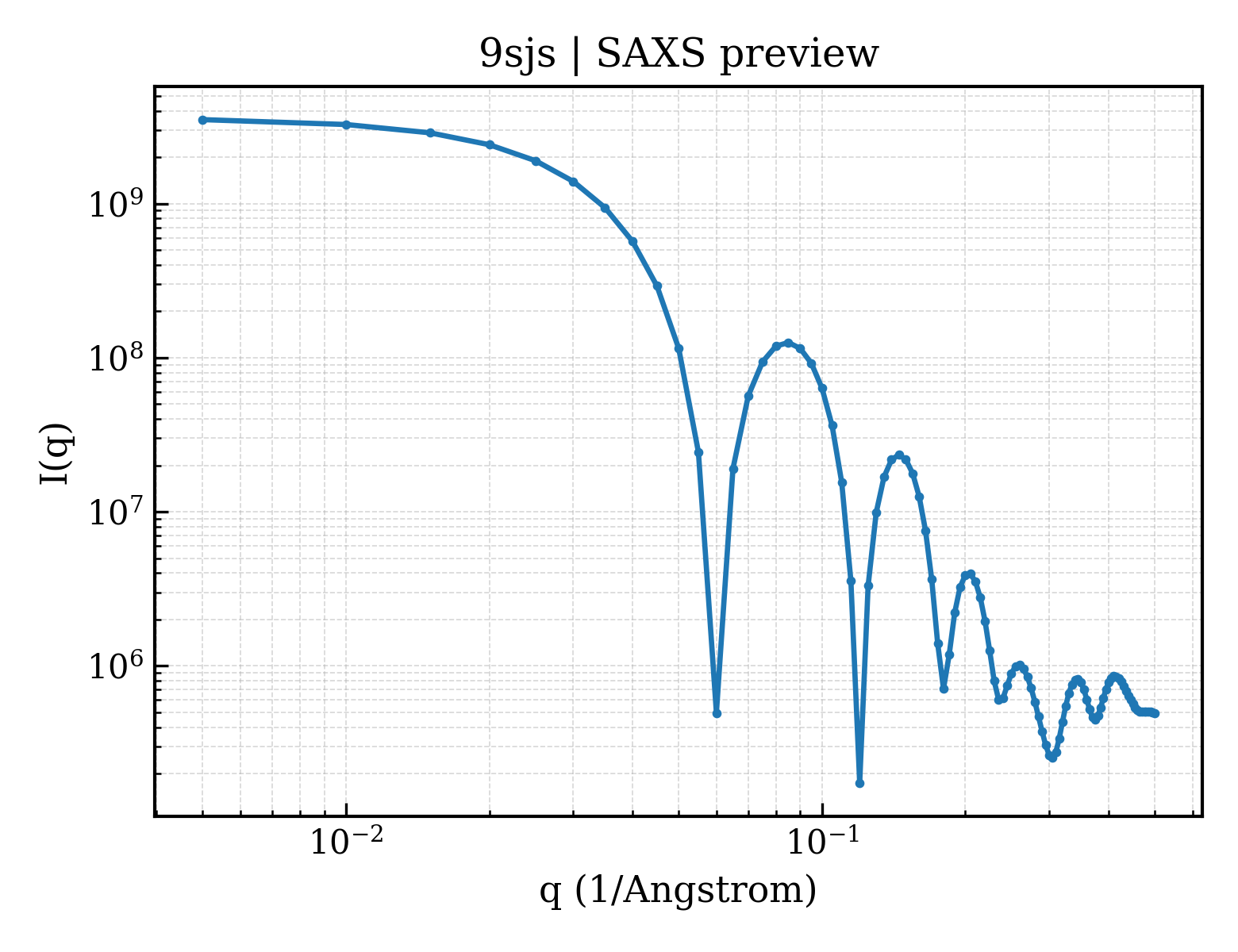

SAXS Profile

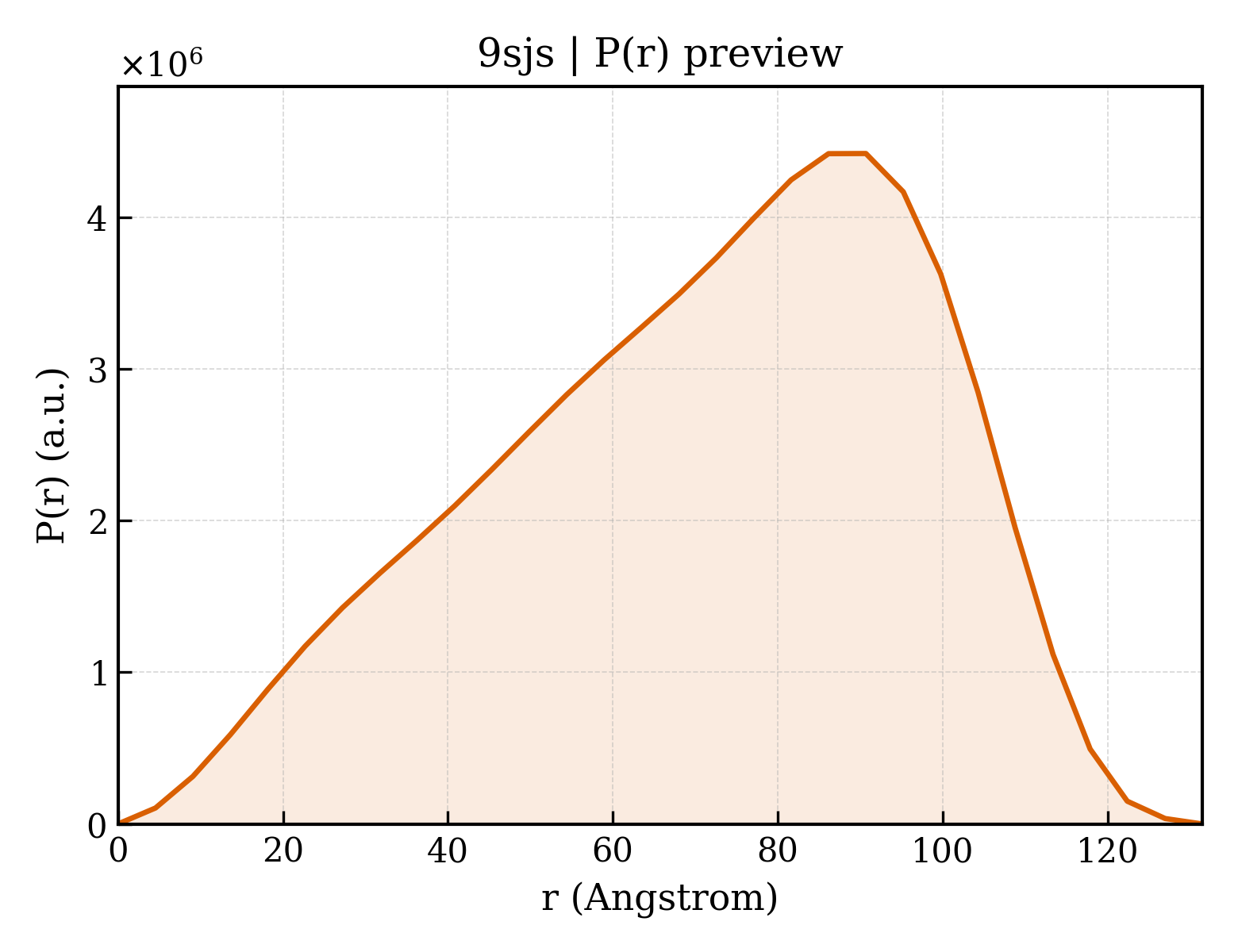

P(r) Distribution

▼

1. Structure Basics

entry_id	9sjs
deposition_date	2025-09-01
title	Cryo-EM structure of Human Apoferritin at pH 4
keywords	Apoferritin, Ferritin, Metal storage, Low pH, METAL BINDING PROTEIN; METAL BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	54.22 Å
rg_electron	53.21 Å
i0	3586130000.00
molecular_weight	484840.0 kDa
excluded_volume	598790 Å³
envelope_volume	974530 Å³
shell_volume	149270 Å³
envelope_diameter	135.4 Å
shell_rg	63.92 Å
envelope_rg	47.96 Å
shape_rg	53.21 Å
total_rg	53.53 Å
total_atoms	34056
n_residues	4152
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	131.5 Å
rg_real	53.66 Å
rg_real_error	0.26 Å
i0_real	3.5860e+09
i0_real_error	4.9030e+07
rg_reciprocal	54.66 Å
i0_reciprocal	3591000000.0000
total_estimate	0.7933
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	90.7 Å
skewness	-0.390
kurtosis	-0.640
angular_range	— – 0.1450 Å⁻¹
current_alpha	0.0000
highest_alpha	192700000000.0000
n_real_points	30
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.677; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Ferritin heavy chain, N-terminally processed
formula_weight	20176.6 kDa
src_method	man
entity_count	24

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,V,W,X,Y
atom_count	35088

STSQVRQNYHQDSEAAINRQINLELYASYVYLSMSYYFDRDDVALKNFAKYFLHQSHEEREHAEKLMKLQNQRGGRIFLQDIKKPDCDDWESGLNAMECALHLEKNVNQSLLELHKLATDKNDPHLCDFIETHYLSEQVKAIKELGDHVTNLRKMGAPESGLAEYLFDKHTLG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	FE (III) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	24

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	24

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1032

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.06 Å
resolution_method	—
num_particles	267457

fit	/app/data/saxs_computation/sj/9sjs/9sjs.fit
pddf	/app/data/pr_computation/sj/9sjs/9sjs.pr.out
profile	/app/data/saxs_computation/sj/9sjs/9sjs.dat
