9slr
Solution structure of the conotoxin conkazal-M1

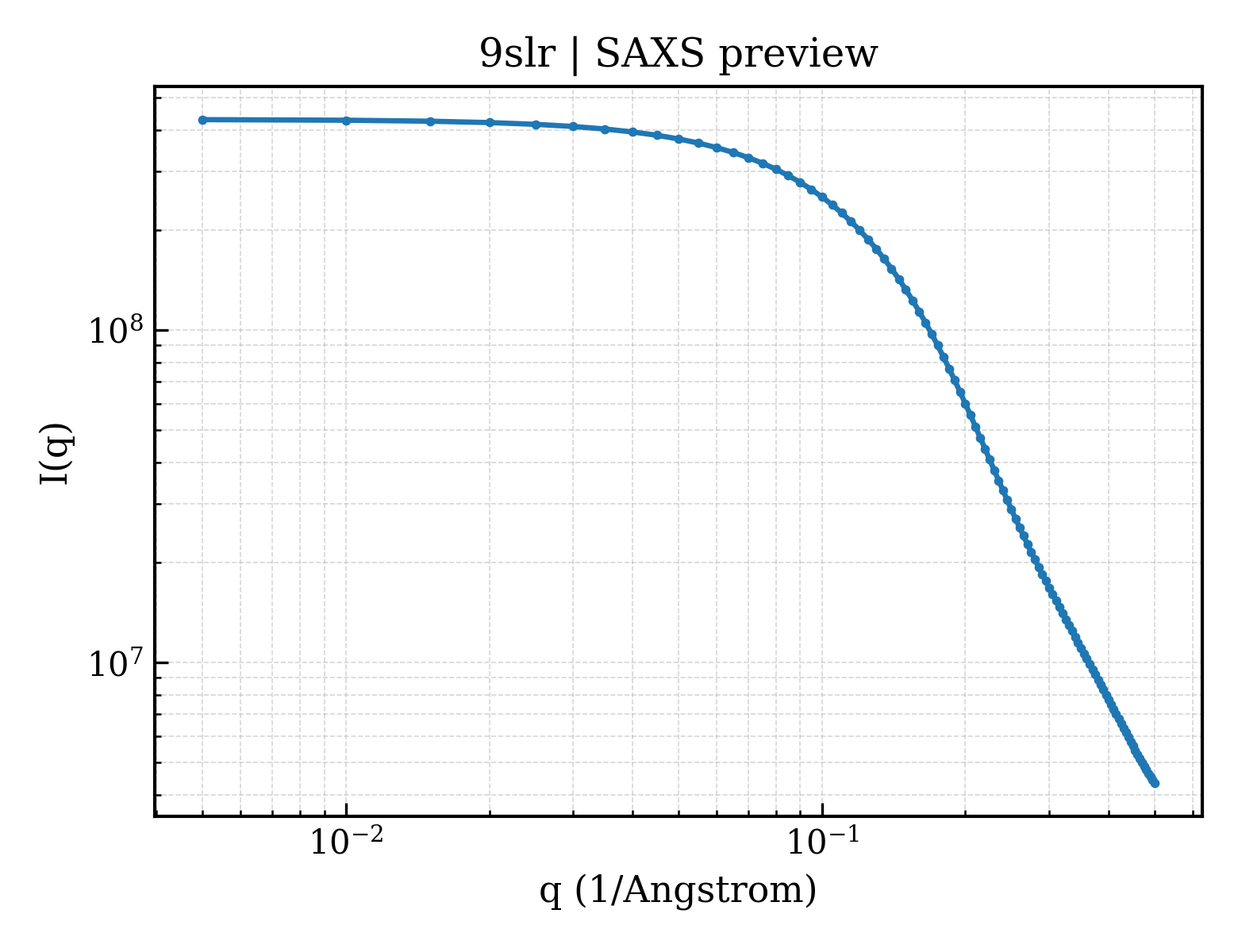

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9slr |
| deposition_date | 2025-09-05 |
| last_revision | 2026-05-27 |
| title | Solution structure of the conotoxin conkazal-M1 |
| keywords | Cone snails, conotoxin, protease inhibitor, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.72 Å |
| rg_electron | 12.81 Å |
| i0 | 429908000.00 |
| molecular_weight | 160120.0 kDa |
| excluded_volume | 194070 ų |
| envelope_volume | 20514 ų |
| shell_volume | 12011 ų |
| envelope_diameter | 48.7 Å |
| shell_rg | 20.02 Å |
| envelope_rg | 15.19 Å |
| shape_rg | 12.85 Å |
| total_rg | 12.80 Å |
| total_atoms | 21440 |
| n_residues | 1460 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.4 Å |
| rg_real | 12.75 Å |
| rg_real_error | 0.45 Å |
| i0_real | 4.2990e+08 |
| i0_real_error | 5.2780e+06 |
| rg_reciprocal | 12.74 Å |
| i0_reciprocal | 429900000.0000 |
| total_estimate | 0.8575 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.8 Å |
| skewness | 0.345 |
| kurtosis | -0.336 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 111400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.809; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.789; Smooth: 0.932 |
