9soj
Protein with novel 3_1 knotted solenoid fold
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9soj |
| deposition_date | 2025-09-13 |
| title | Protein with novel 3_1 knotted solenoid fold |
| keywords | 3_1 Knot, Novel Fold, Solenoid, Brevundimonas sp., UNKNOWN FUNCTION; UNKNOWN FUNCTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.88 Å |
| rg_electron | 28.12 Å |
| i0 | 49256000.00 |
| molecular_weight | 55312.0 kDa |
| excluded_volume | 69473 ų |
| envelope_volume | 89012 ų |
| shell_volume | 27557 ų |
| envelope_diameter | 101.1 Å |
| shell_rg | 33.97 Å |
| envelope_rg | 28.18 Å |
| shape_rg | 28.09 Å |
| total_rg | 28.83 Å |
| total_atoms | 7681 |
| n_residues | 526 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

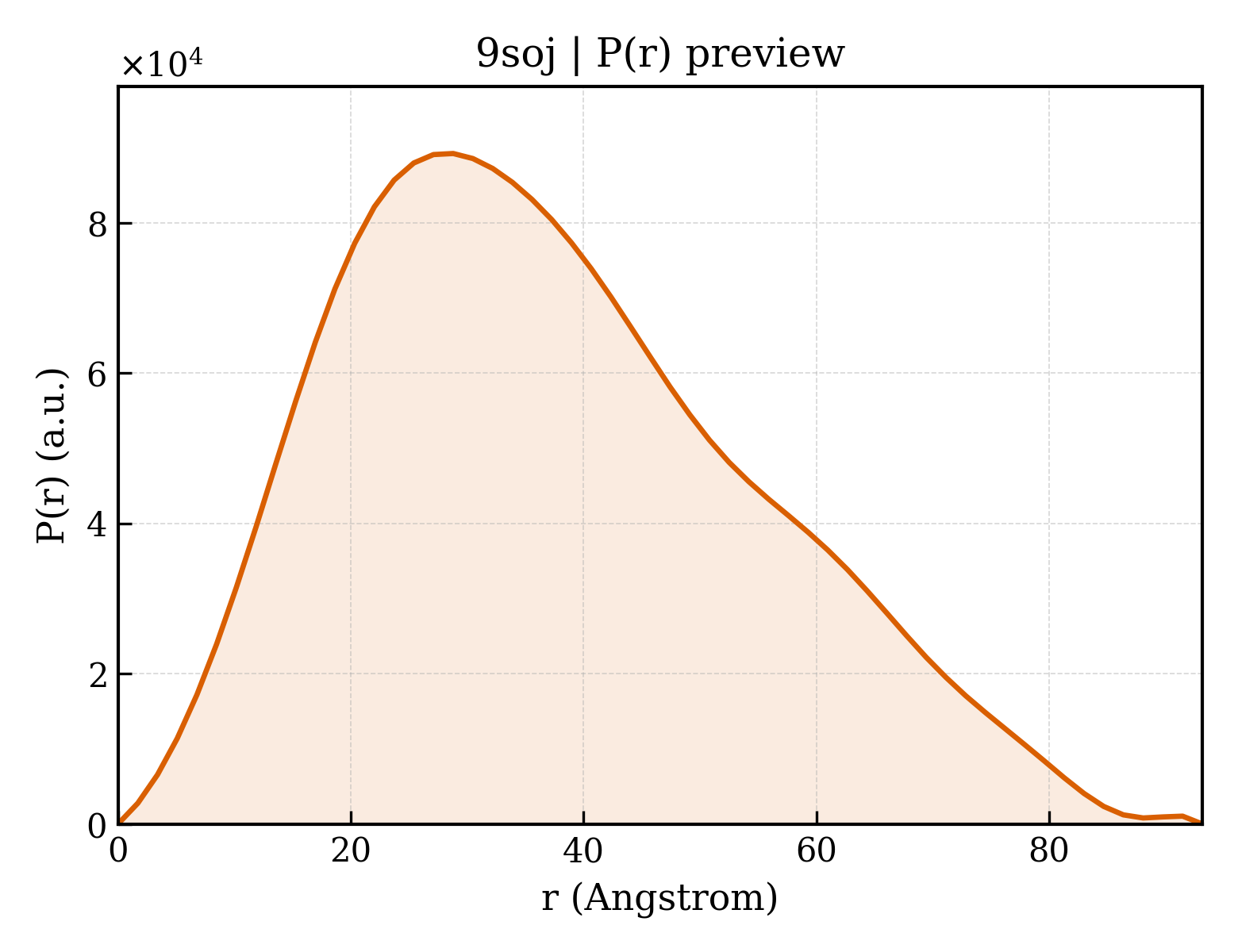

3. P(r) Analysis (GNOM)
| dmax | 93.2 Å |
| rg_real | 29.00 Å |
| rg_real_error | 0.60 Å |
| i0_real | 4.9260e+07 |
| i0_real_error | 7.2640e+05 |
| rg_reciprocal | 28.95 Å |
| i0_reciprocal | 49250000.0000 |
| total_estimate | 0.8820 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 28.8 Å |
| skewness | 0.441 |
| kurtosis | -0.436 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10240000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.884; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.893; Smooth: 0.917 |
