9sy5

Engineering the ADDomer Nanoparticle Vaccine Scaffold for Improved Assembly and Enhanced Stability.

Method: ELECTRON MICROSCOPY Dmax: 210.7 Å Quality: GOOD

SAXS Profile

SAXS profile for 9sy5

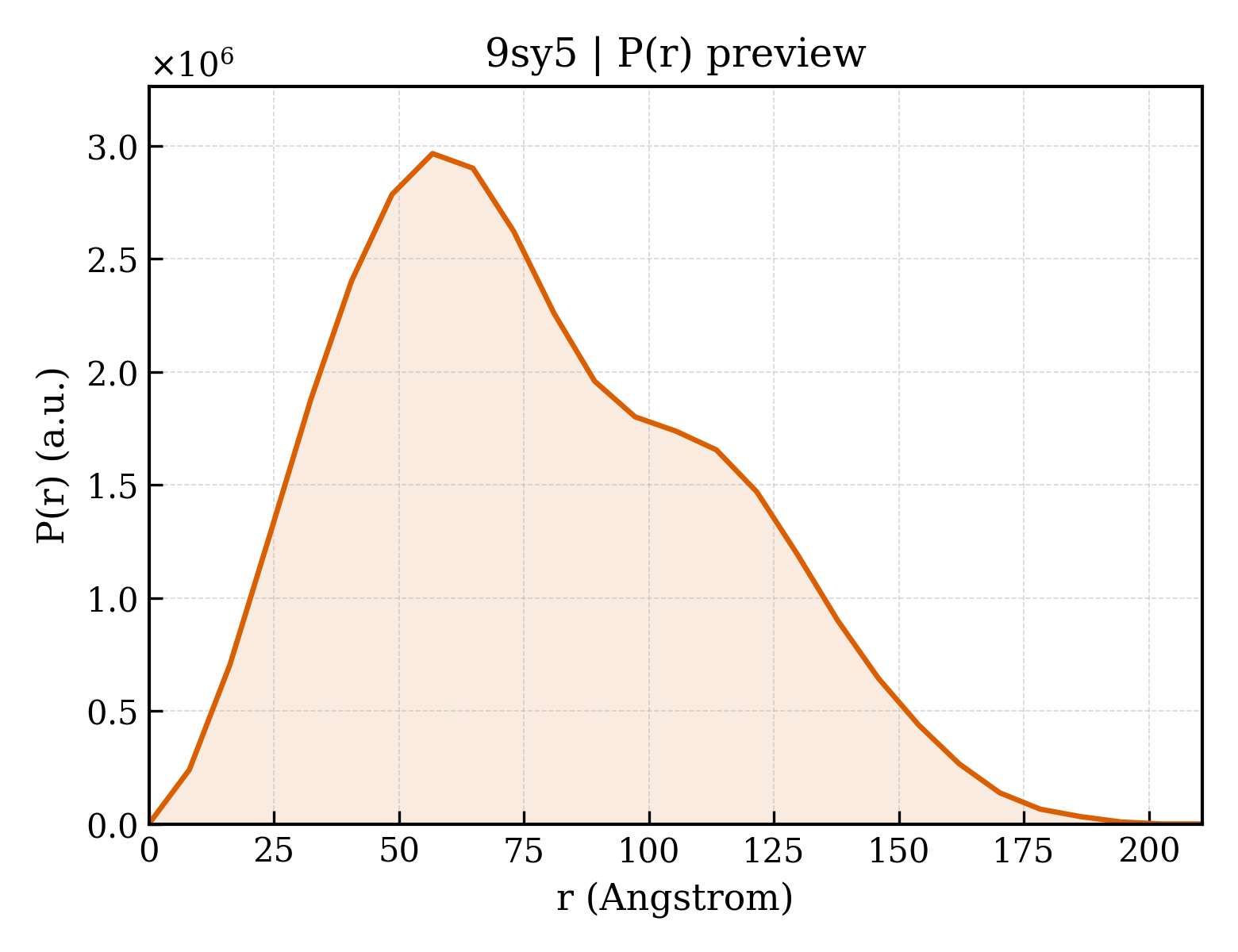

P(r) Distribution

P(r) distribution for 9sy5
▼

1. Structure Basics

entry_id9sy5
deposition_date2025-10-10
titleEngineering the ADDomer Nanoparticle Vaccine Scaffold for Improved Assembly and Enhanced Stability.
keywordsAdenovirus, Nanoparticle, Disulphide bond, Thermostable., VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier59.95 Å
rg_electron60.26 Å
i03294840000.00
molecular_weight482940.0 kDa
excluded_volume603170 ų
envelope_volume828680 ų
shell_volume111810 ų
envelope_diameter221.5 Å
shell_rg63.71 Å
envelope_rg59.64 Å
shape_rg60.27 Å
total_rg60.32 Å
total_atoms34047
n_residues4256
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax210.7 Å
rg_real60.21 Å
rg_real_error2.48 Å
i0_real3.2950e+09
i0_real_error6.3680e+07
rg_reciprocal59.69 Å
i0_reciprocal3292000000.0000
total_estimate0.8322
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary56.7 Å
skewness0.418
kurtosis-0.515
angular_range— – 0.1300 Å−1
current_alpha0.0000
highest_alpha516500000.0000
n_real_points27
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.675; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.790
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
