9szn

Crystal structure of the catalytic domain of USP7 in complex with Compound 43

Method: X-RAY DIFFRACTION D_max: 87.4 Å Quality: GOOD

SAXS Profile

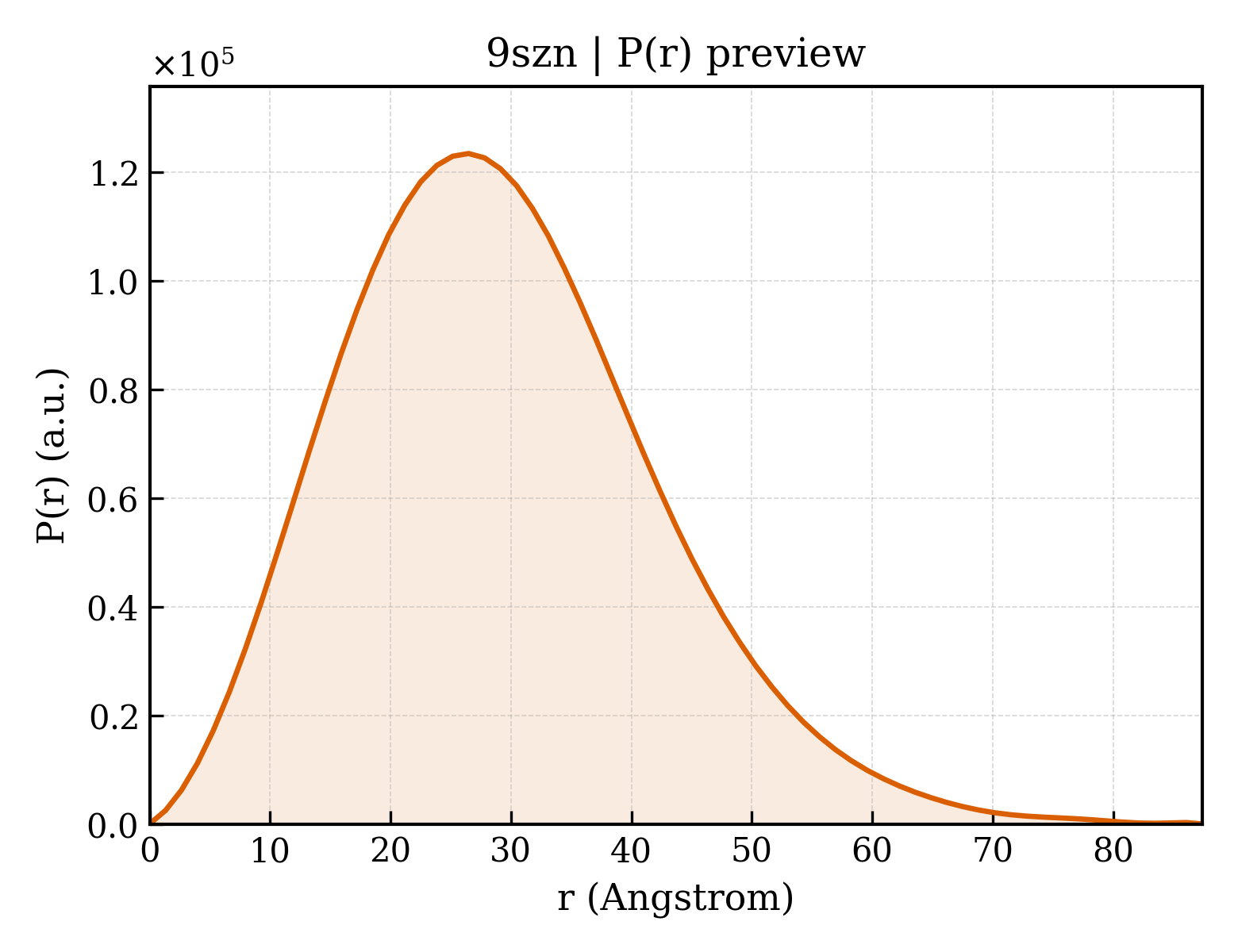

P(r) Distribution

▼

1. Structure Basics

entry_id	9szn
deposition_date	2025-10-15
title	Crystal structure of the catalytic domain of USP7 in complex with Compound 43
keywords	USP7 INHIBITOR COMPLEX, STRUCTURE-GUIDED DRUG DESIGN, CANCER, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.47 Å
rg_electron	21.56 Å
i0	49099400.00
molecular_weight	36206.0 kDa
excluded_volume	34894 Å³
envelope_volume	59138 Å³
shell_volume	23141 Å³
envelope_diameter	90.4 Å
shell_rg	28.21 Å
envelope_rg	22.46 Å
shape_rg	21.53 Å
total_rg	22.25 Å
total_atoms	2735
n_residues	326
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	87.4 Å
rg_real	22.51 Å
rg_real_error	0.79 Å
i0_real	4.9100e+07
i0_real_error	7.5630e+05
rg_reciprocal	22.50 Å
i0_reciprocal	49100000.0000
total_estimate	0.7951
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.5 Å
skewness	0.514
kurtosis	0.235
angular_range	— – 0.3550 Å⁻¹
current_alpha	0.0000
highest_alpha	7065000.0000
n_real_points	67
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.490; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.865; Smooth: 0.996

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Ubiquitin carboxyl-terminal hydrolase 7
formula_weight	41068.3 kDa
ec_number	3.4.19.12
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3072

KKHTGYVGLKNQGATCYMNSLLQTLFFTNQLRKAVYMMPTEGDDSSKSVPLALQRVFYELQHSDKPVGTKKLTKSFGWETLDSFMQHDVQELCRVLLDNVENKMKGTCVEGTIPKLFRGKMVSYIQCKEVDYRSDRREDYYDIQLSIKGKKNIFESFVDYVAVEQLDGDNKYDAGEHGLQEAEKGVKFLTLPPVLHLQLMRFMYDPQTDQNIKINDRFEFPEQLPLDEFLQKTDPKDPANYILHAVLVHSGDNHGGHYVVYLNPKGDGKWCKFDDDVVSRCTKEEAIEHNYGGHDDDLSVRHCTNAYMLVYIRESKLSEVLQAVTDHDIPQQLVERLQEEKRIEAQKRKERQE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	;3-((7-(3-((S)-3-aminopyrrolidine-1-carbonyl)-4-methyl-6-(trifluoromethyl)pyridin-2-yl)thieno[3,2-b]pyridin-2-yl)methyl)-6,6-dimethyl-3-azabicyclo[3.1.0]hexane-2,4-dione ;
formula_weight	557.6 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	289

▶

6. Citations (1)

▶

length_a	51.890 Å
length_b	141.000 Å
length_c	124.190 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.990 Å
resolution_low	30.650 Å
r_factor	0.1859
r_work	0.1837
r_free	0.2263
