9szo

Crystal structure of the catalytic domain of USP7 in complex with Compound 13

Method: X-RAY DIFFRACTION D_max: 85.0 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9szo
deposition_date	2025-10-15
title	Crystal structure of the catalytic domain of USP7 in complex with Compound 13
keywords	USP7 INHIBITOR COMPLEX, STRUCTURE-GUIDED DRUG DESIGN, CANCER, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.06 Å
rg_electron	21.18 Å
i0	45816900.00
molecular_weight	35158.0 kDa
excluded_volume	34006 Å³
envelope_volume	56825 Å³
shell_volume	22653 Å³
envelope_diameter	89.3 Å
shell_rg	27.84 Å
envelope_rg	22.03 Å
shape_rg	21.14 Å
total_rg	21.87 Å
total_atoms	2657
n_residues	321
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

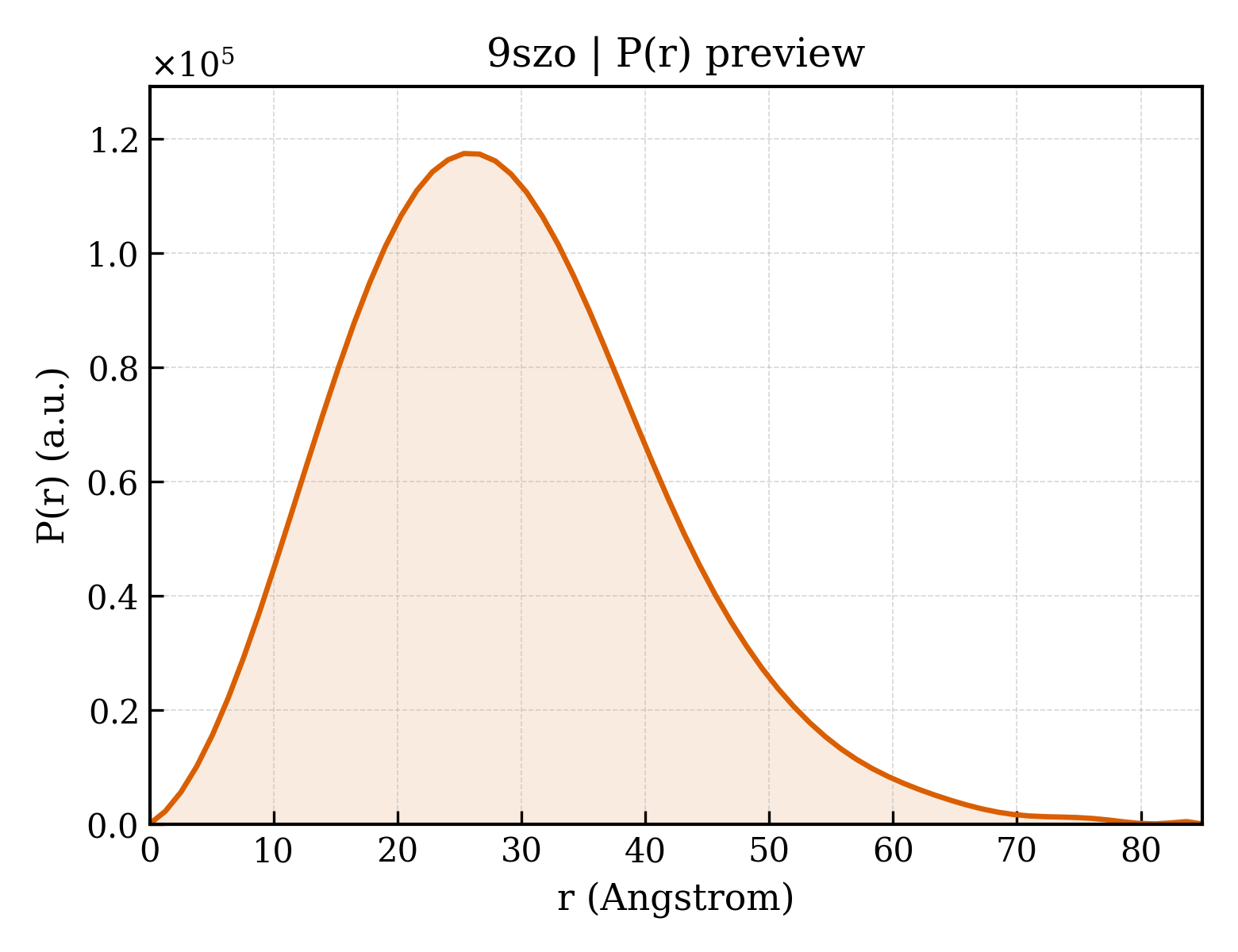

3. P(r) Analysis (GNOM)

dmax	85.0 Å
rg_real	22.11 Å
rg_real_error	0.75 Å
i0_real	4.5820e+07
i0_real_error	6.3050e+05
rg_reciprocal	22.10 Å
i0_reciprocal	45820000.0000
total_estimate	0.7890
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.4 Å
skewness	0.520
kurtosis	0.248
angular_range	— – 0.3600 Å⁻¹
current_alpha	0.0000
highest_alpha	7080000.0000
n_real_points	68
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.507; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.777; Smooth: 0.955

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Ubiquitin carboxyl-terminal hydrolase 7
formula_weight	41004.3 kDa
ec_number	3.4.19.12
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2695

KKHTGYVGLKNQGATCYMNSLLQTLFFTNQLRKAVYMMPTEGDDSSKSVPLALQRVFYELQHSDKPVGTKKLTKSFGWETLDSFMQHDVQELCRVLLDNVENKMKGTCVEGTIPKLFRGKMVSYIQCKEVDYRSDRREDYYDIQLSIKGKKNIFESFVDYVAVEQLDGDNKYDAGEHGLQEAEKGVKFLTLPPVLHLQLMRFMYDPQTDQNIKINDRFEFPEQLPLDEFLQKTDPKDPANYILHAVLVHSGDNHGGHYVVYLNPKGDGKWCKFDDDVVSRCTKEEAIEHNYGGHDDDLSVRHCTNAYMLVYIRESKLSEVLQAVTDHDIPQQLVERLQEEKRIEAQKRKERQE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	;(43S,Z)-25-chloro-23-methyl-3-oxa-1(7,2)-thieno[3,2-b]pyridina-4(3,1)-piperidina-11(1,3)-imidazolidina-2(1,2)-benzenacyclododecaphan-7-ene-112,114-dione ;
formula_weight	551.1 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	32

▶

6. Citations (1)

▶

length_a	51.820 Å
length_b	140.910 Å
length_c	124.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.570 Å
resolution_low	48.630 Å
r_factor	0.2317
r_work	0.2291
r_free	0.2795

fit	/app/data/saxs_computation/sz/9szo/9szo.fit
pddf	/app/data/pr_computation/sz/9szo/9szo.pr.out
profile	/app/data/saxs_computation/sz/9szo/9szo.dat
