SAXSdb — 9szr

▼

1. Structure Basics

entry_id	9szr
deposition_date	2025-10-15
title	shutdown state non-muscle myosin 2A heads region
keywords	Myosin, coiled coil, MOTOR PROTEIN; MOTOR PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	— Å
rg_electron	146.60 Å
i0	3997480000.00
molecular_weight	520770.0 kDa
excluded_volume	645900 Å³
envelope_volume	1564300 Å³
shell_volume	104410 Å³
envelope_diameter	642.1 Å
shell_rg	79.57 Å
envelope_rg	204.20 Å
shape_rg	146.60 Å
total_rg	146.20 Å
total_atoms	36487
n_residues	4502
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	292.3 Å
rg_real	97.95 Å
rg_real_error	2.10 Å
i0_real	3.4320e+09
i0_real_error	8.3230e+07
rg_reciprocal	89.77 Å
i0_reciprocal	3504000000.0000
total_estimate	0.7995
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	58.5 Å
skewness	0.577
kurtosis	-0.741
angular_range	— – 0.0500 Å⁻¹
current_alpha	0.4588
highest_alpha	91990000.0000
n_real_points	11
gnom_version	4.1.3
quality_criteria	AN1: 0.234; Oscil: 0.722; Stabil: 0.894; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.582

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Isoform 1 of Myosin-9
formula_weight	226888.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	36487

MAQQAADKYLYVDKNFINNPLAQADWAAKKLVWVPSDKSGFEPASLKEEVGEEAIVELVENGKKVKVNKDDIQKMNPPKFSKVEDMAELTCLNEASVLHNLKERYYSGLIYTYSGLFCVVINPYKNLPIYSEEIVEMYKGKKRHEMPPHIYAITDTAYRSMMQDREDQSILCTGESGAGKTENTKKVIQYLAYVASSHKSKKDQGELERQLLQANPILEAFGNAKTVKNDNSSRFGKFIRINFDVNGYIVGANIETYLLEKSRAIRQAKEERTFHIFYYLLSGAGEHLKTDLLLEPYNKYRFLSNGHVTIPGQQDKDMFQETMEAMRIMGIPEEEQMGLLRVISGVLQLGNIVFKKERNTDQASMPDNTAAQKVSHLLGINVTDFTRGILTPRIKVGRDYVQKAQTKEQADFAIEALAKATYERMFRWLVLRINKALDKTKRQGASFIGILDIAGFEIFDLNSFEQLCINYTNEKLQQLFNHTMFILEQEEYQREGIEWNFIDFGLDLQPCIDLIEKPAGPPGILALLDEECWFPKATDKSFVEKVMQEQGTHPKFQKPKQLKDKADFCIIHYAGKVDYKADEWLMKNMDPLNDNIATLLHQSSDKFVSELWKDVDRIIGLDQVAGMSETALPGAFKTRKGMFRTVGQLYKEQLAKLMATLRNTNPNFVRCIIPNHEKKAGKLDPHLVLDQLRCNGVLEGIRICRQGFPNRVVFQEFRQRYEILTPNSIPKGFMDGKQACVLMIKALELDSNLYRIGQSKVFFRAGVLAHLEEERDLKITDVIIGFQACCRGYLARKAFAKRQQQLTAMKVLQRNCAAYLKLRNWQWWRLFTKVKPLLQVSRQEEEMMAKEEELVKVREKQLAAENRLTEMETLQSQLMAEKLQLQEQLQAETELCAEAEELRARLTAKKQELEEICHDLEARVEEEEERCQHLQAEKKKMQQNIQELEEQLEEEESARQKLQLEKVTTEAKLKKLEEEQIILEDQNCKLAKEKKLLEDRIAEFTTNLTEEEEKSKSLAKLKNKHEAMITDLEERLRREEKQRQELEKTRRKLEGDSTDLSDQIAELQAQIAELKMQLAKKEEELQAALARVEEEAAQKNMALKKIRELESQISELQEDLESERASRNKAEKQKRDLGEELEALKTELEDTLDSTAAQQELRSKREQEVNILKKTLEEEAKTHEAQIQEMRQKHSQAVEELAEQLEQTKRVKANLEKAKQTLENERGELANEVKVLLQGKGDSEHKRKKVEAQLQELQVKFNEGERVRTELADKVTKLQVELDNVTGLLSQSDSKSSKLTKDFSALESQLQDTQELLQEENRQKLSLSTKLKQVEDEKNSFREQLEEEEEAKHNLEKQIATLHAQVADMKKKMEDSVGCLETAEEVKRKLQKDLEGLSQRHEEKVAAYDKLEKTKTRLQQELDDLLVDLDHQRQSACNLEKKQKKFDQLLAEEKTISAKYAEERDRAEAEAREKETKALSLARALEEAMEQKAELERLNKQFRTEMEDLMSSKDDVGKSVHELEKSKRALEQQVEEMKTQLEELEDELQATEDAKLRLEVNLQAMKAQFERDLQGRDEQSEEKKKQLVRQVREMEAELEDERKQRSMAVAARKKLEMDLKDLEAHIDSANKNRDEAIKQLRKLQAQMKDCMRELDDTRASREEILAQAKENEKKLKSMEAEMIQLQEELAAAERAKRQAQQERDELADEIANSSGKGALALEEKRRLEARIAQLEEELEEEQGNTELINDRLKKANLQIDQINTDLNLERSHAQKNENARQQLERQNKELKVKLQEMEGTVKSKYKASITALEAKIAQLEEQLDNETKERQAACKQVRRTEKKLKDVLLQVDDERRNAEQYKDQADKASTRLKQLKRQLEEAEEEAQRANASRRKLQRELEDATETADAMNREVSSLKNKLRRGDLPFVVPRRMARKGAGDGSDEEVDGKADGAEAKPAE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Isoform 1 of Myosin light polypeptide 6
formula_weight	17004.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,D

MCDFSEEQTAEFKEAFQLFDRTGDGKILYSQCGDVMRALGQNPTNAEVMKVLGNPKSDEMNLKTLKFEQFLPMMQTIAKNKDQGCFEDYVEGLRVFDKEGNGTVMGAEIRHVLVTLGEKMTEEEVEQLVAGHEDSNGCINYEELVRMVLSG

Source

organism	Gallus gallus
common_name	chicken
ncbi_taxonomy_id	9031
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Myosin regulatory light polypeptide 9
formula_weight	19890.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,F

MSSKRAKTKTTKKRPQRATSNVFAMFDQSQIQEFKEAFNMIDQNRDGFIDKEDLHDMLASLGKNPTDEYLDAMMNEAPGPINFTMFLTMFGEKLNGTDPEDVIRNAFACFDEEATGTIQEDYLRELLTTMGDRFTDEEVDELYREAPIDKKGNFNYIEFTRILKHGAKDKDD

Source

organism	Bos taurus
common_name	domestic cattle
ncbi_taxonomy_id	9913
host_organism	Spodoptera frugiperda

Entity 4 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

resolution	6.30 Å
resolution_method	—
num_particles	15167

fit	/app/data/saxs_computation/sz/9szr/9szr.fit
pddf	/app/data/pr_computation/sz/9szr/9szr.pr.out
profile	/app/data/saxs_computation/sz/9szr/9szr.dat

shutdown state non-muscle myosin 2A heads region

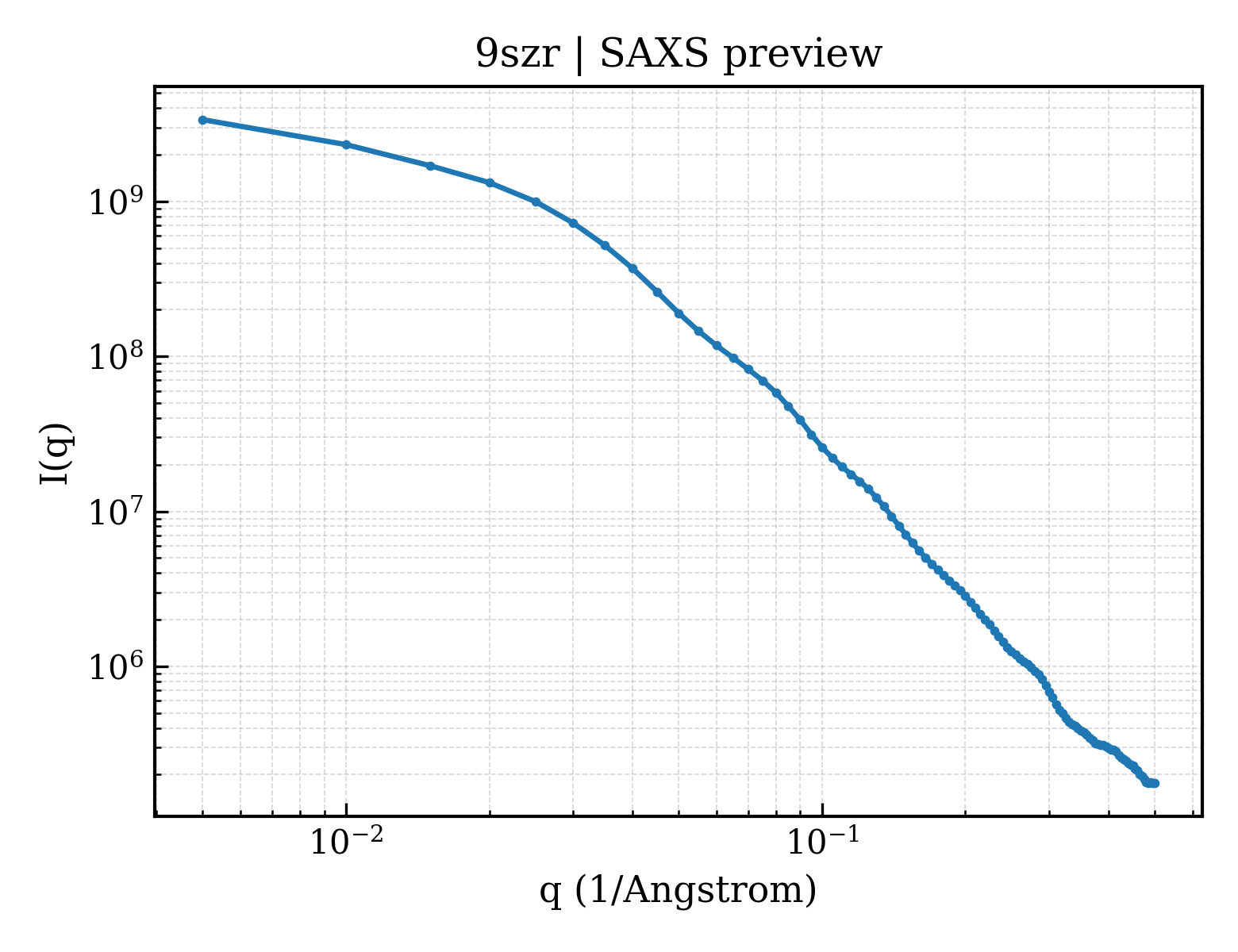

SAXS Profile

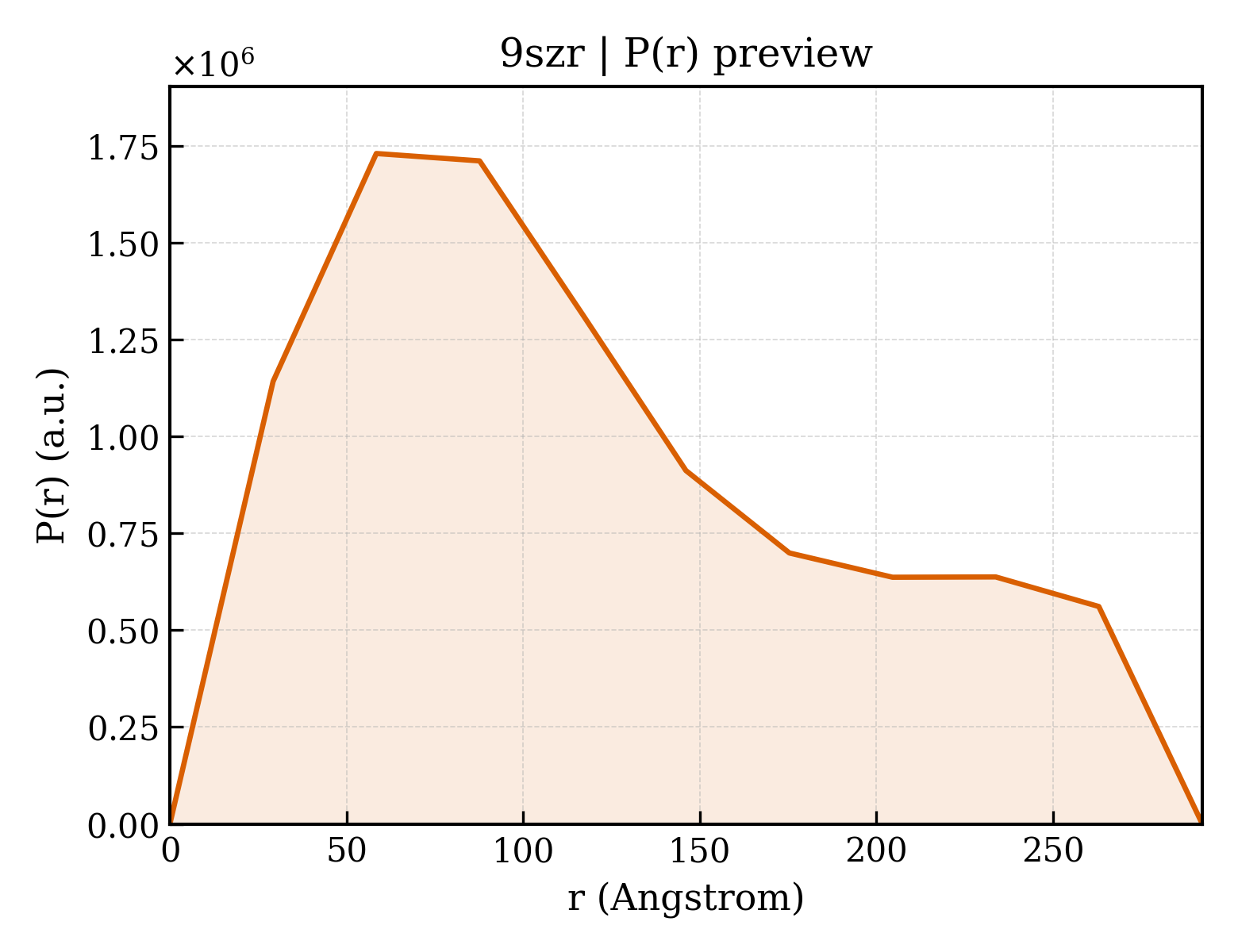

P(r) Distribution
