SAXSdb — 9t0c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Autophagy-related protein 2

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Autophagy-related protein 18 × 1 （A7A258）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATG2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1592； UniProt 1–1592

Autophagy-related protein 18

Saccharomyces cerevisiae

UniProt A7A258

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Autophagy-related protein 2 × 1 （P53855）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATG18_YEAS7
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–500； UniProt 1–500

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9t0c
Deposition date deposition_date	2025-10-16
Structure title title	Atg2-Atg18 complex from yeast
Keywords keywords	autophagy, lipid transfer, Atg2, Atg18, complex, LIPID TRANSPORT; LIPID TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9t0c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

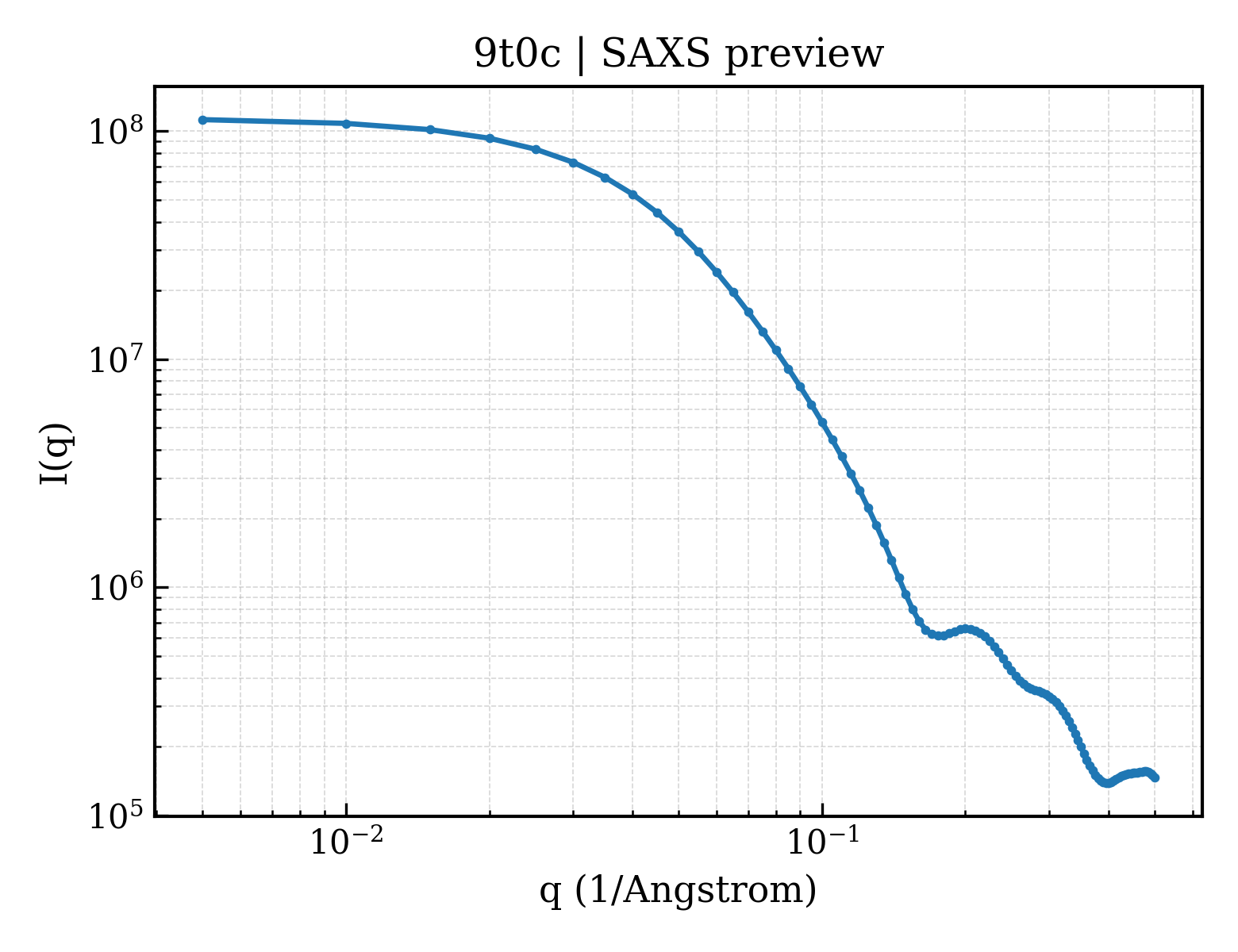

9t0c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

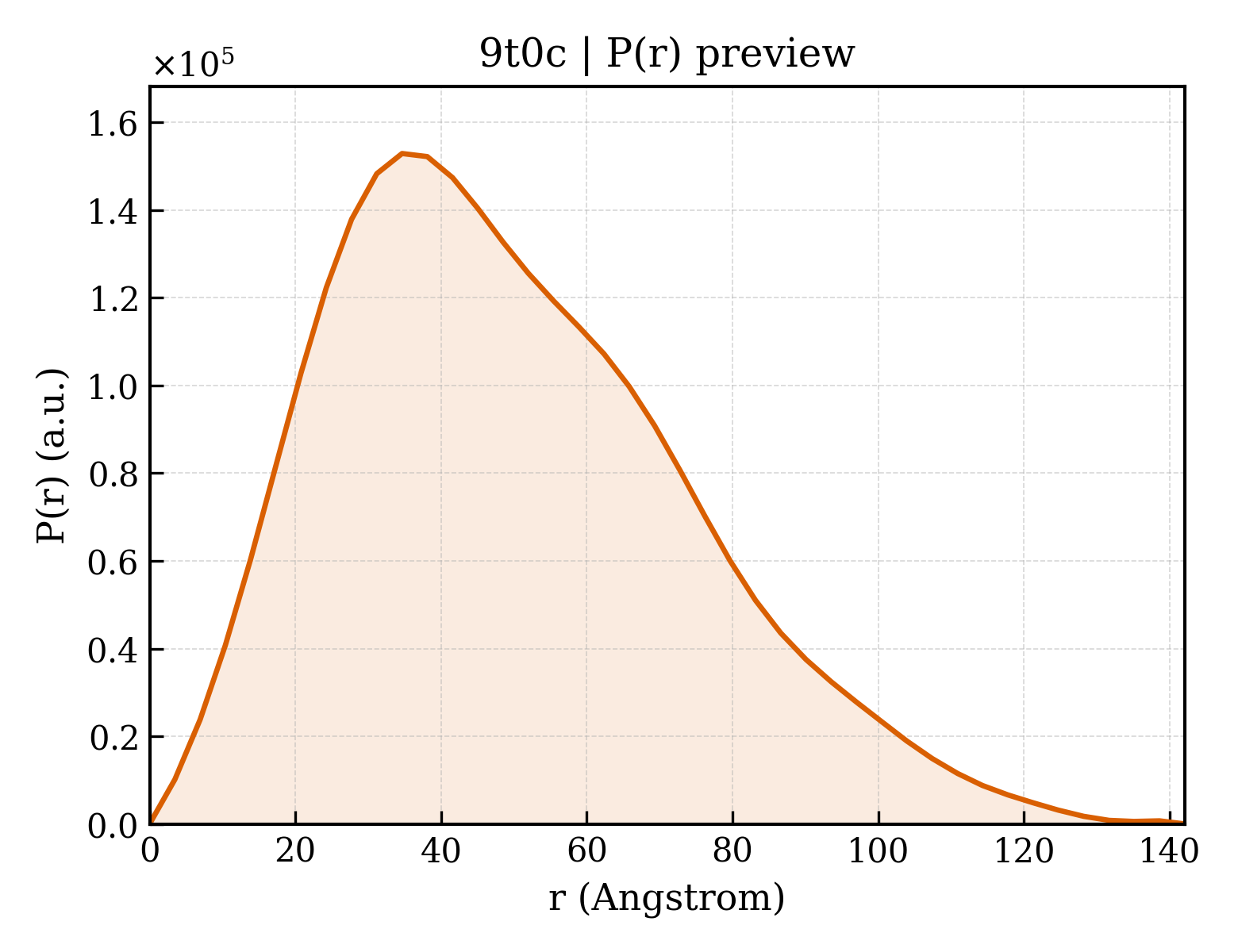

9t0c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.62 Å
Rg (electron density)	37.77 Å
Total Rg	37.71 Å
Atom count	11604
Residues	821
Excluded volume	107310 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9t0c__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Autophagy-related protein 2
Molecular weight formula_weight	178615.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11604

MAFWLPQNIQKRLLLYVLQQISLFSNIDLSNLDVSIGSKSHFSFHDVNLSLDDLNIPNVQINEGIVDELVLKLTVSGGVEIDGSGLRFIMTPLYSSGSQELHSDFLVKSIQDLTNSMLQFSDPLTTYNRYKEDDISSSDSSSDLNSNIEASKPAANGSYTLQNMRNKALNVALAKLKIALKDVTIRFIVNDRDPSDNIVEVHLESIQLITTDANLRHINIENITISSIQKQAVPDSPVHPFNNDDLSQSVYLSKMEATSLYMSAMEEQSNEDPSEPQVTQEEQENDKCKESLMEINNLNIAFKGLSSVNDLRMSNIVIDIQDVHLAIHKIVEIKNSTLKNIIDIIVTHLDANESFSCQDSQSPSPDKQEPSALSSVDIKCIYLNLGQDITVILKSFKLEQKENNSLAFSLGSFYSNSSPLTISHKTKPLLTGEQTPQSIALNMGDELDIIISHDGIAHFFKIFQFVSKCMSFYQNKSKGMMPQIASDTKRTVQLTSKAVKLSLKFPYFLLCFQVSPFIYDSNRELYIELVDVFKKLPSRCTKILTMSSITISNLQSPLQLGSYDDTLKEALIYSSVHAIIKEVIFNEEYSGIVQLVEDISAFGKLFTDSKNSECTGKSKSKRGSFLQRSVRVLNSSRFVYKQSLSANFSLKIDSMKLKVSEIIGPQFGSVEALLSNNFFAITDDSQIVYFTKNLKVERKTPSLLEPQEIMSVVLNKAVNEPVLYVHRRANGKLKVIFNNIRIHYYARWLEILKKNIGPDNASSKDEPVSQKLSKKQPTSGFPWELKCLDCSLILHPFRLKSVMVIVLDNLTTGGSSFIPQAKLLSKANTLFLIDDYQNFKIQKDKNWPSLINFYAGQGFSAIGKIDTLNFLINKSDGALLLDCKIEQVGLSLCADSFQTFCQLCIDLKYPQTFPDEEKFRTQLKNPIDVFKDIDCDLFNSAFIRENNHQNDYDSVHLVDSFLDKTHEFNNGARSKLSSQGSYEMDSSSGTATGGILLPHESYLDSAQPKEEDTPPIASKEQERDVDIRGSIDVEKVVIKLFDGYDWKYTRKFIANTVEKLDKELSKAEASSSKSNVPQSEANIFDSIYISANKNNVTDLRRNLDGEIQGVQNSFSDVSKVNLRPSKHYKALIQLNKVHVNLKNYRVDEPDESNSDNSTDVLNRCVVSIYEFEIIDNVPTSTWNKFVTLLKHEPWPHSSPMFLLDLEFIRPIDFLQAVELVMQLNVAPLRLHVDQDTLEFLIRFLGFKDKRFELIDEYPDIVFIQKFSTNSIKLRLDYKPKKVDYAGLRSGQTSELMNFFTLDGSKIILKSVVLYGLNGFDELNNKLKAIWTPDITKKQLPGVLEGLAPVRSFMAIGSGVKTLVTVLMSEYRQEGHLGRSLKKGGNVFLKTTTGDFVKLGVKLTSGTQAILENTEELFGGVGSNGRVYDASKFGSADGADSDTAAVLDLDTLFEEDQLVGSKYSRIRDHEPTAVVIDMSSPGDHNEPTIVSLYADQPLDLPTGLKEAYSSLEKHMHIAYDAVWRAKGQMKDDKRGGPSAAAVYVARAAPVAIIRPLIGATEAVSKTLQGIANQVDKTHNEQINDKYKSNRTDS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Autophagy-related protein 18
Molecular weight formula_weight	60148.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSDSSPTINFINFNQTGTCISLGTSKGFKIFNCEPFGKFYSEDSGGYAIVEMLFSTSLLALVGIGDQPALSPRRLRIINTKKHSIICEVTFPTSILSVKMNKSRLVVLLQEQIYIYDINTMRLLHTIETNPNPRGLMAMSPSVANSYLVYPSPPKVINSEIKAHATTNNITLSVGGNTETSFKRDQQDAGHSDISDLDQYSSFTKRDDADPTSSNGGNSSIIKNGDVIVFNLETLQPTMVIEAHKGEIAAMAISFDGTLMATASDKGTIIRVFDIETGDKIYQFRRGTYATRIYSISFSEDSQYLAVTGSSKTVHIFKLGHSMSNNKLDSDDSNMEEAAADDSSLDTTSIDALSDEENPTRLAREPYVDASRKTMGRMIRYSSQKLSRRAARTLGQIFPIKVTSLLESSRHFASLKLPVETNSHVMTISSIGSPIDIDTSEYPELFETGNSASTESYHEPVMKMVPIRVVSSDGYLYNFVMDPERGGDCLILSQYSILMDRTLQVDKRRWKKNFIAVSAANRFKKISSSGALDYDIPTTASVDGS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.500 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	97431
