9t1r
Structure of the PDZ domain of human Inturned
SAXS Profile

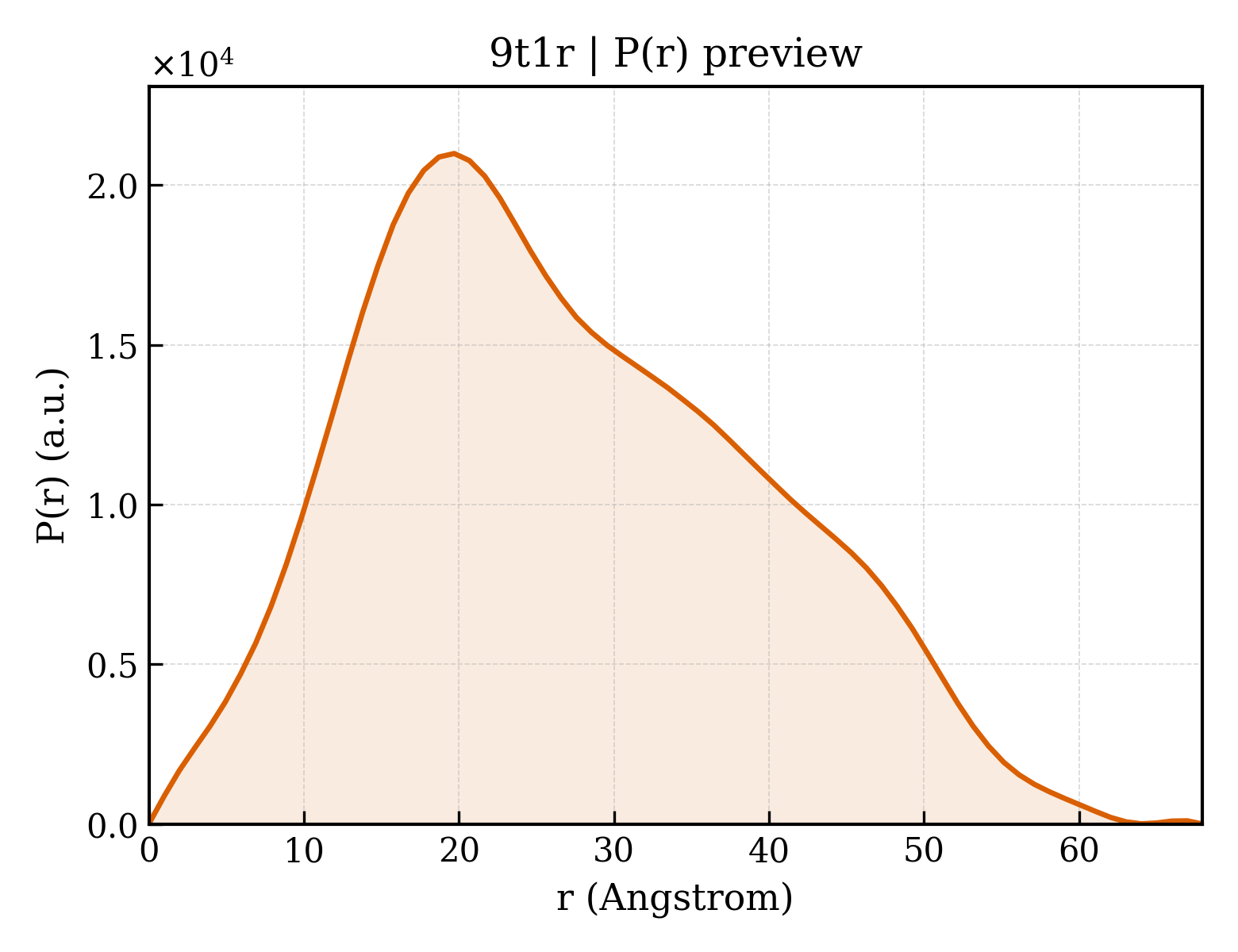

P(r) Distribution
1. Structure Basics
| entry_id | 9t1r |
| deposition_date | 2025-10-21 |
| last_revision | 2026-05-27 |
| title | Structure of the PDZ domain of human Inturned |
| keywords | PDZ, GEF, Inturned, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.91 Å |
| rg_electron | 20.18 Å |
| i0 | 7913530.00 |
| molecular_weight | 21940.0 kDa |
| excluded_volume | 28103 ų |
| envelope_volume | 35135 ų |
| shell_volume | 15381 ų |
| envelope_diameter | 67.6 Å |
| shell_rg | 25.20 Å |
| envelope_rg | 20.15 Å |
| shape_rg | 20.18 Å |
| total_rg | 20.99 Å |
| total_atoms | 1542 |
| n_residues | 198 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 68.0 Å |
| rg_real | 20.97 Å |
| rg_real_error | 0.56 Å |
| i0_real | 7.9140e+06 |
| i0_real_error | 1.1510e+05 |
| rg_reciprocal | 20.96 Å |
| i0_reciprocal | 7913000.0000 |
| total_estimate | 0.8633 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.7 Å |
| skewness | 0.352 |
| kurtosis | -0.598 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4254000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.775; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.966 |
