9t2z
Spindlin 1 with crystallization epitope mutations H127D:L128D:T131R

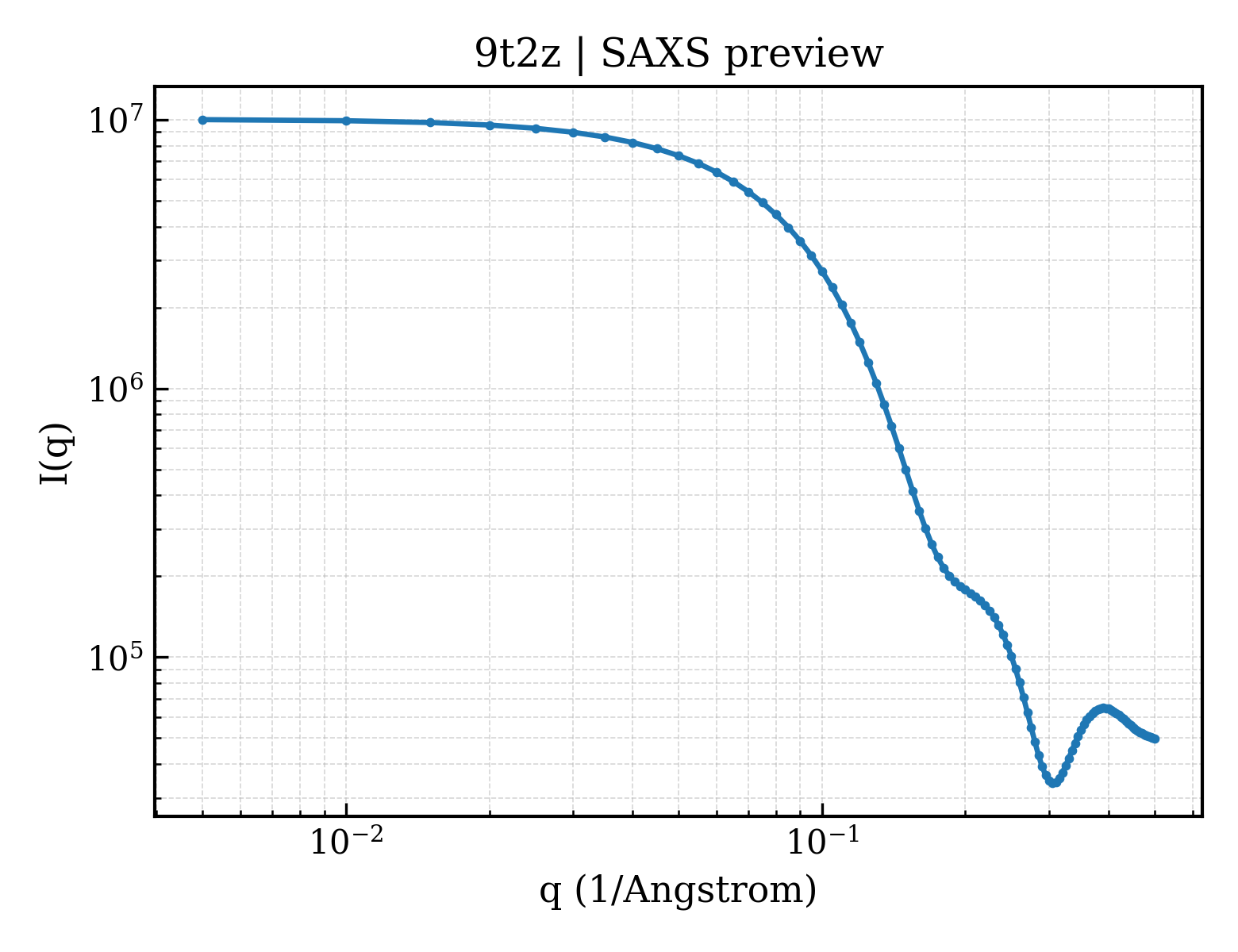

SAXS Profile

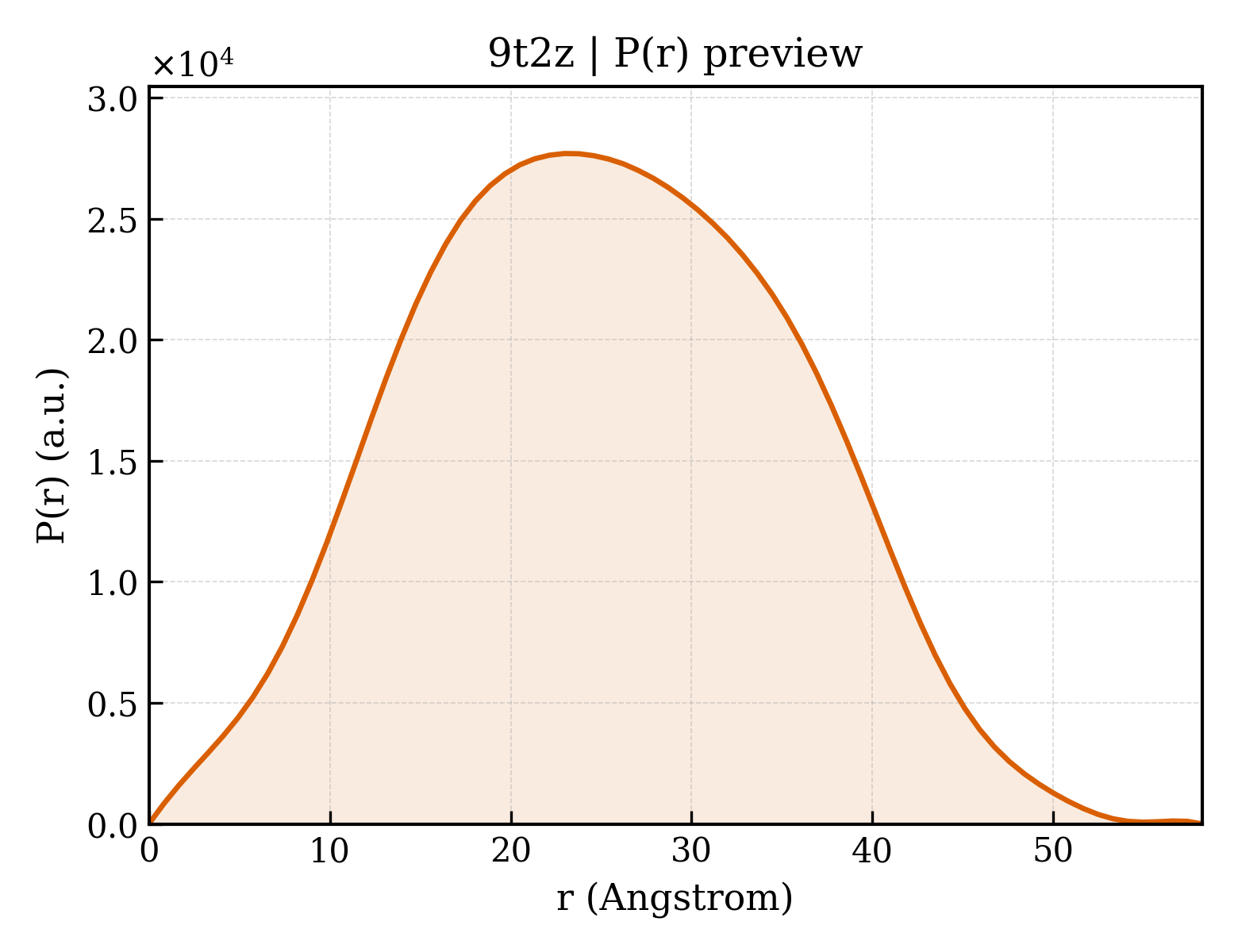

P(r) Distribution
1. Structure Basics
| entry_id | 9t2z |
| deposition_date | 2025-10-24 |
| last_revision | 2025-11-26 |
| title | Spindlin 1 with crystallization epitope mutations H127D:L128D:T131R |
| keywords | Crystal epitopes, CELL CYCLE; CELL CYCLE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.35 Å |
| rg_electron | 17.82 Å |
| i0 | 10023700.00 |
| molecular_weight | 23443.0 kDa |
| excluded_volume | 29351 ų |
| envelope_volume | 36375 ų |
| shell_volume | 17157 ų |
| envelope_diameter | 58.2 Å |
| shell_rg | 23.85 Å |
| envelope_rg | 18.17 Å |
| shape_rg | 17.80 Å |
| total_rg | 18.90 Å |
| total_atoms | 1653 |
| n_residues | 208 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.2 Å |
| rg_real | 19.21 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.0020e+07 |
| i0_real_error | 1.1820e+05 |
| rg_reciprocal | 19.23 Å |
| i0_reciprocal | 10020000.0000 |
| total_estimate | 0.9104 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 23.0 Å |
| skewness | 0.071 |
| kurtosis | -0.582 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2620000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.997 |
