9t3j
Protease from Norovirus Sydney GII.4 strain with crystallization epitope mutation H50Y
SAXS Profile

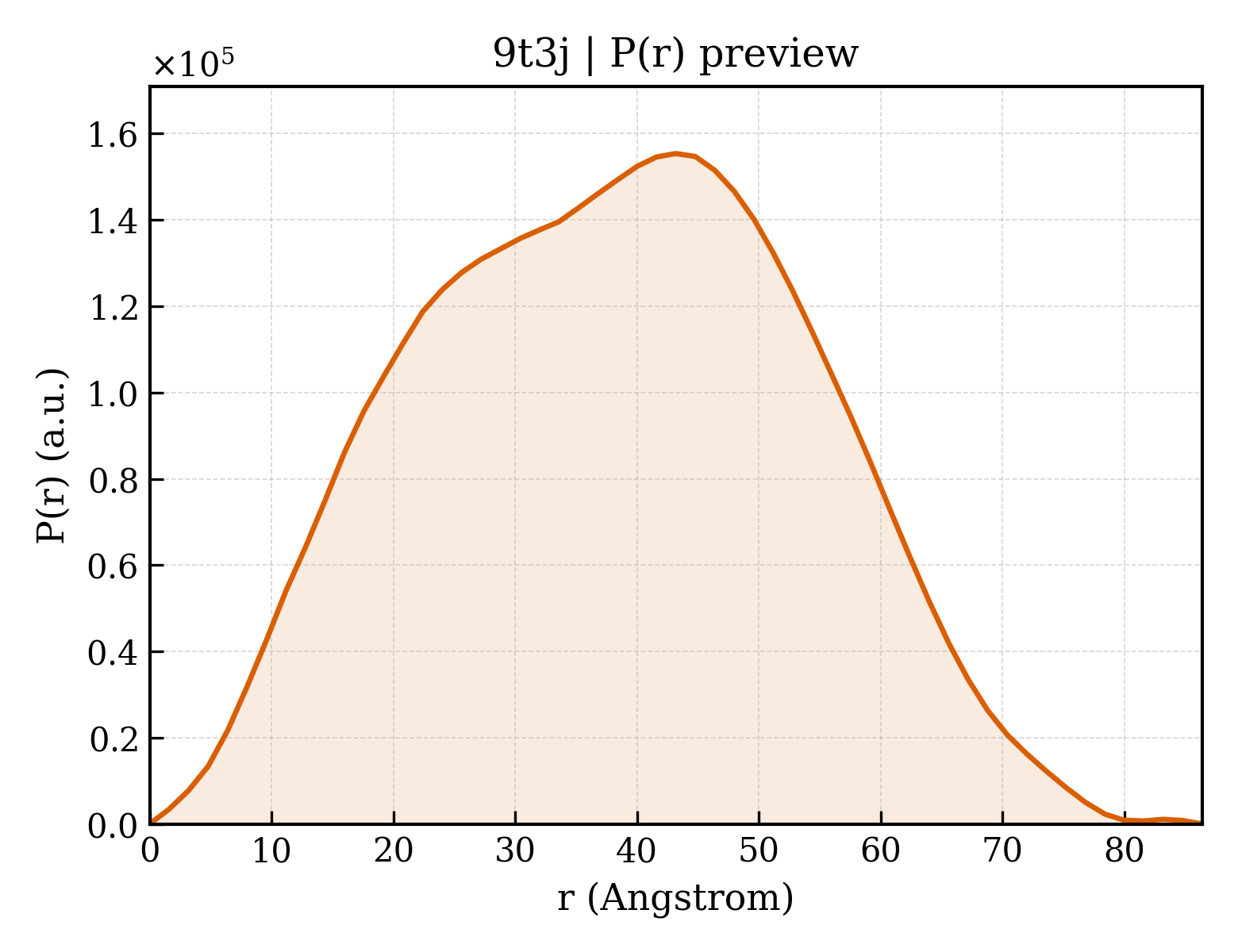

P(r) Distribution
1. Structure Basics
| entry_id | 9t3j |
| deposition_date | 2025-10-27 |
| last_revision | 2025-12-10 |
| title | Protease from Norovirus Sydney GII.4 strain with crystallization epitope mutation H50Y |
| keywords | crystal epitopes, protease, Norovirus, VIRAL PROTEIN; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.32 Å |
| rg_electron | 28.32 Å |
| i0 | 85634500.00 |
| molecular_weight | 73168.0 kDa |
| excluded_volume | 92022 ų |
| envelope_volume | 119310 ų |
| shell_volume | 34816 ų |
| envelope_diameter | 91.5 Å |
| shell_rg | 36.04 Å |
| envelope_rg | 27.59 Å |
| shape_rg | 28.29 Å |
| total_rg | 29.21 Å |
| total_atoms | 10184 |
| n_residues | 682 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 86.4 Å |
| rg_real | 29.16 Å |
| rg_real_error | 0.61 Å |
| i0_real | 8.5630e+07 |
| i0_real_error | 1.3450e+06 |
| rg_reciprocal | 29.23 Å |
| i0_reciprocal | 85640000.0000 |
| total_estimate | 0.9138 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 43.2 Å |
| skewness | 0.032 |
| kurtosis | -0.680 |
| angular_range | — – 0.2700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 40850000.0000 |
| n_real_points | 55 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.969; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.975 |
