9t3p
Nonameric Ena1C ring of Bacillus cereus
SAXS Profile

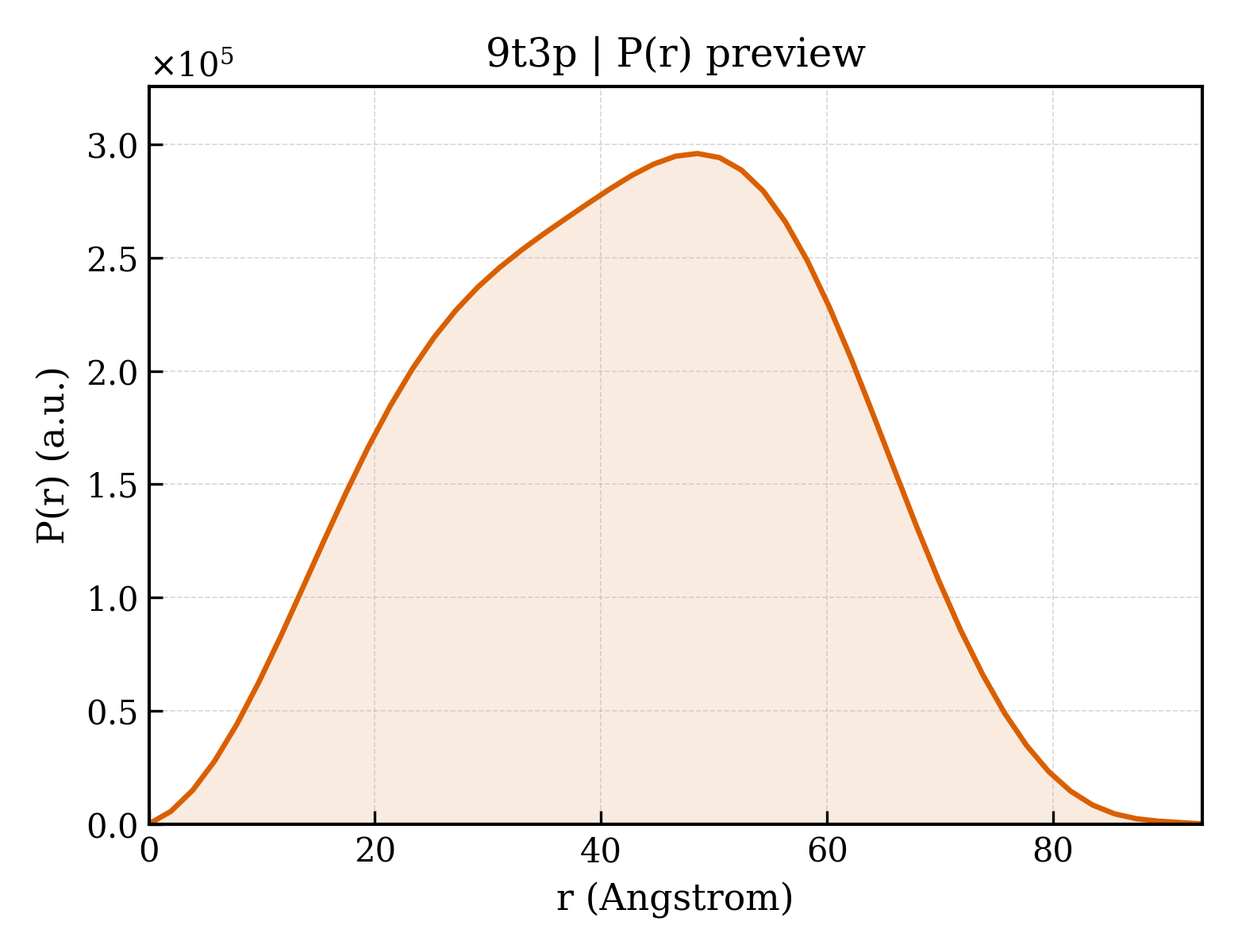

P(r) Distribution
1. Structure Basics
| entry_id | 9t3p |
| deposition_date | 2025-10-28 |
| title | Nonameric Ena1C ring of Bacillus cereus |
| keywords | S-ENA, ENA anchoring, spore coat anchoring, endospore, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 32.70 Å |
| rg_electron | 31.60 Å |
| i0 | 177320000.00 |
| molecular_weight | 105360.0 kDa |
| excluded_volume | 131760 ų |
| envelope_volume | 177510 ų |
| shell_volume | 45216 ų |
| envelope_diameter | 94.2 Å |
| shell_rg | 40.28 Å |
| envelope_rg | 30.44 Å |
| shape_rg | 31.59 Å |
| total_rg | 32.38 Å |
| total_atoms | 7407 |
| n_residues | 963 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 93.2 Å |
| rg_real | 32.41 Å |
| rg_real_error | 0.38 Å |
| i0_real | 1.7730e+08 |
| i0_real_error | 2.5380e+06 |
| rg_reciprocal | 32.54 Å |
| i0_reciprocal | 177300000.0000 |
| total_estimate | 0.7024 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 48.5 Å |
| skewness | -0.036 |
| kurtosis | -0.696 |
| angular_range | — – 0.2400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 59310000.0000 |
| n_real_points | 49 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.977; Stabil: 1.000; Sysdev: 0.145; Positv: 1.000; Valcen: 0.987; Smooth: 0.774 |
