9t54

Coproheme decarboxylase H117A mutant from Listeria monocytogenes in complex with iron coproporphyrin III

Method: X-RAY DIFFRACTION D_max: 90.3 Å Quality: EXCELLENT

SAXS Profile

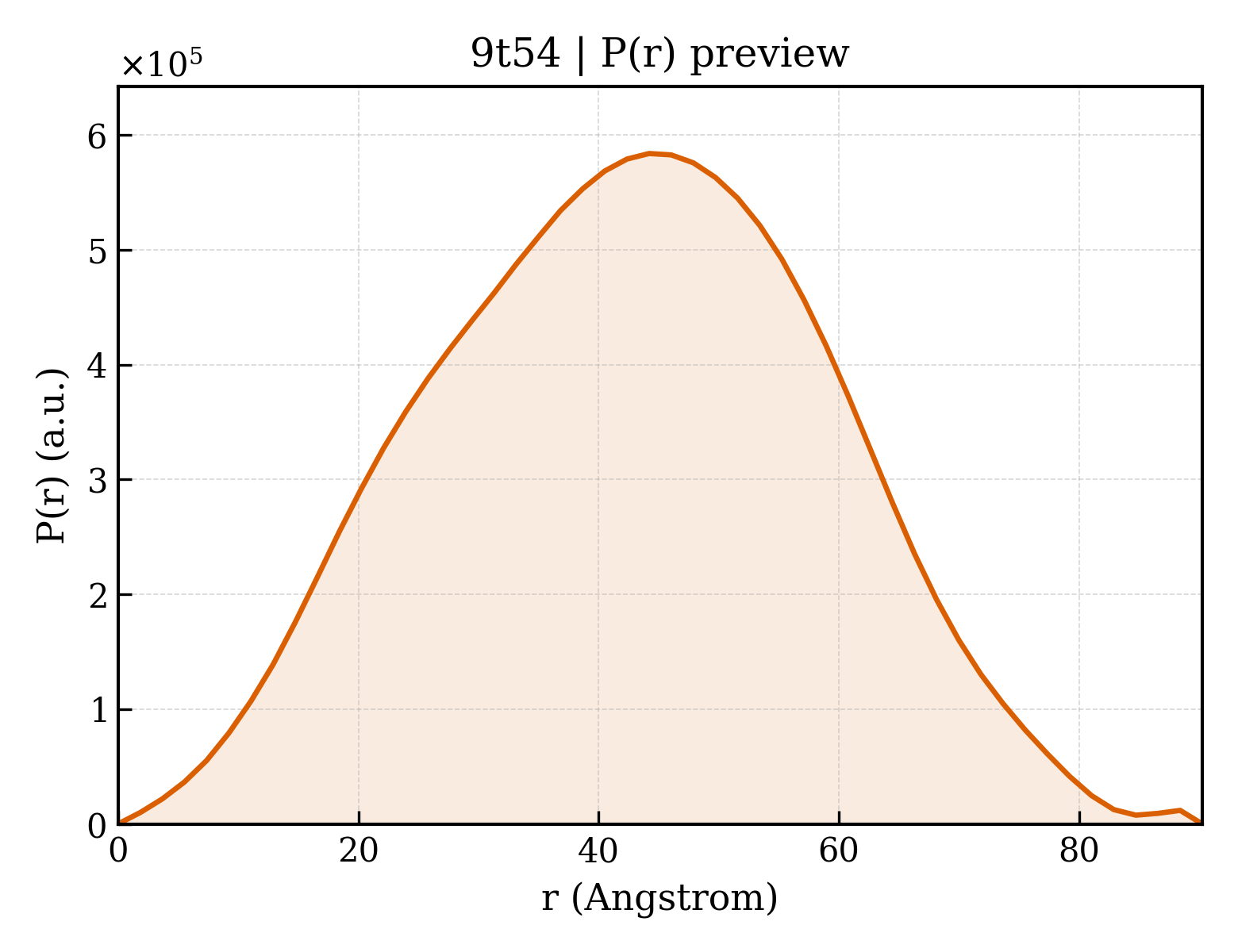

P(r) Distribution

▼

1. Structure Basics

entry_id	9t54
deposition_date	2025-11-04
last_revision	2026-05-13
title	Coproheme decarboxylase H117A mutant from Listeria monocytogenes in complex with iron coproporphyrin III
keywords	coproheme, heme, heme b, heme biosynthesis, mmd, iron, coproporphyrin, enzyme, decarboxylase, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.54 Å
rg_electron	31.11 Å
i0	319390000.00
molecular_weight	145760.0 kDa
excluded_volume	183180 Å³
envelope_volume	228000 Å³
shell_volume	56986 Å³
envelope_diameter	97.5 Å
shell_rg	40.99 Å
envelope_rg	30.83 Å
shape_rg	31.05 Å
total_rg	32.10 Å
total_atoms	10291
n_residues	1240
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.3 Å
rg_real	32.20 Å
rg_real_error	0.32 Å
i0_real	3.1940e+08
i0_real_error	4.3710e+06
rg_reciprocal	32.35 Å
i0_reciprocal	319400000.0000
total_estimate	0.9023
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	44.2 Å
skewness	-0.005
kurtosis	-0.527
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	318500000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.849

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Coproheme decarboxylase
formula_weight	29040.9 kDa
ec_number	1.3.98.5
mutation	H117A
src_method	man
entity_count	5

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E
atom_count	10326

GPAMNEAVKTLDGWFCLHDFRSIDWAAWRELNPGNQELMLNELSHFLSDMEITKNIGEGEHTIYSILGQKADLVFFTLRDSLEALNEVENRFNKLAIADYLLPTYSYISVVELSNYLASAMAGGDDPYQNKGVRARLYPALPPKKHICFYPMSKKRDGADNWYMLPMEERQQLIRDHGLIGRSYAGKVQQIIGGSIGFDDYEWGVTLFSDDALEFKRIVTEMRFDEASARYAEFGSFFIGNLLLSEQLSKLFTI

Source

organism	Listeria monocytogenes EGD-e
ncbi_taxonomy_id	169963
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	1,3,5,8-TETRAMETHYL-PORPHINE-2,4,6,7-TETRAPROPIONIC ACID FERROUS COMPLEX
formula_weight	708.5 kDa
src_method	syn
entity_count	5

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	35

▶

6. Citations (1)

▶

length_a	78.429 Å
length_b	129.300 Å
length_c	78.651 Å
angle_alpha	90.00 °
angle_beta	106.05 °
angle_gamma	90.00 °
z_pdb	10

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.194 Å
resolution_low	65.254 Å
r_factor	—
r_work	0.1804
r_free	0.2061

fit	/app/data/saxs_computation/t5/9t54/9t54.fit
pddf	/app/data/pr_computation/t5/9t54/9t54.pr.out
profile	/app/data/saxs_computation/t5/9t54/9t54.dat
