SAXSdb — 9t6z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Genome polyprotein

Human enterovirus 71

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 300	Fab light chain × 60 Fab heavy chain × 60 Genome polyprotein × 60 （A0A0D3QR49） Genome polyprotein × 60 （A0A1P8LK22）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A7U3Q6X6_HE71
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–246； UniProt 52–297

Genome polyprotein

Human enterovirus 71

UniProt A0A0D3QR49

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 300	Fab light chain × 60 Fab heavy chain × 60 Genome polyprotein × 60 （A0A7U3Q6X6） Genome polyprotein × 60 （A0A1P8LK22）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0D3QR49_HE71
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–254； UniProt 70–323

Genome polyprotein

Human enterovirus 71

UniProt A0A1P8LK22

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 300	Fab light chain × 60 Fab heavy chain × 60 Genome polyprotein × 60 （A0A7U3Q6X6） Genome polyprotein × 60 （A0A0D3QR49）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A1P8LK22_HE71
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain C； PDBConstruct 1–242； UniProt 324–565

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9t6z
Deposition date deposition_date	2025-11-08
Structure title title	EV-A71 (genotype B5) empty particle in complex with 16-3-3C Fab
Keywords keywords	Hand-foot-and-mouth disease, HFMD, enterovirus 71 (EV-A71), Human antibody, VIRUS, 16-3-3C; VIRUS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9t6z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9t6z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

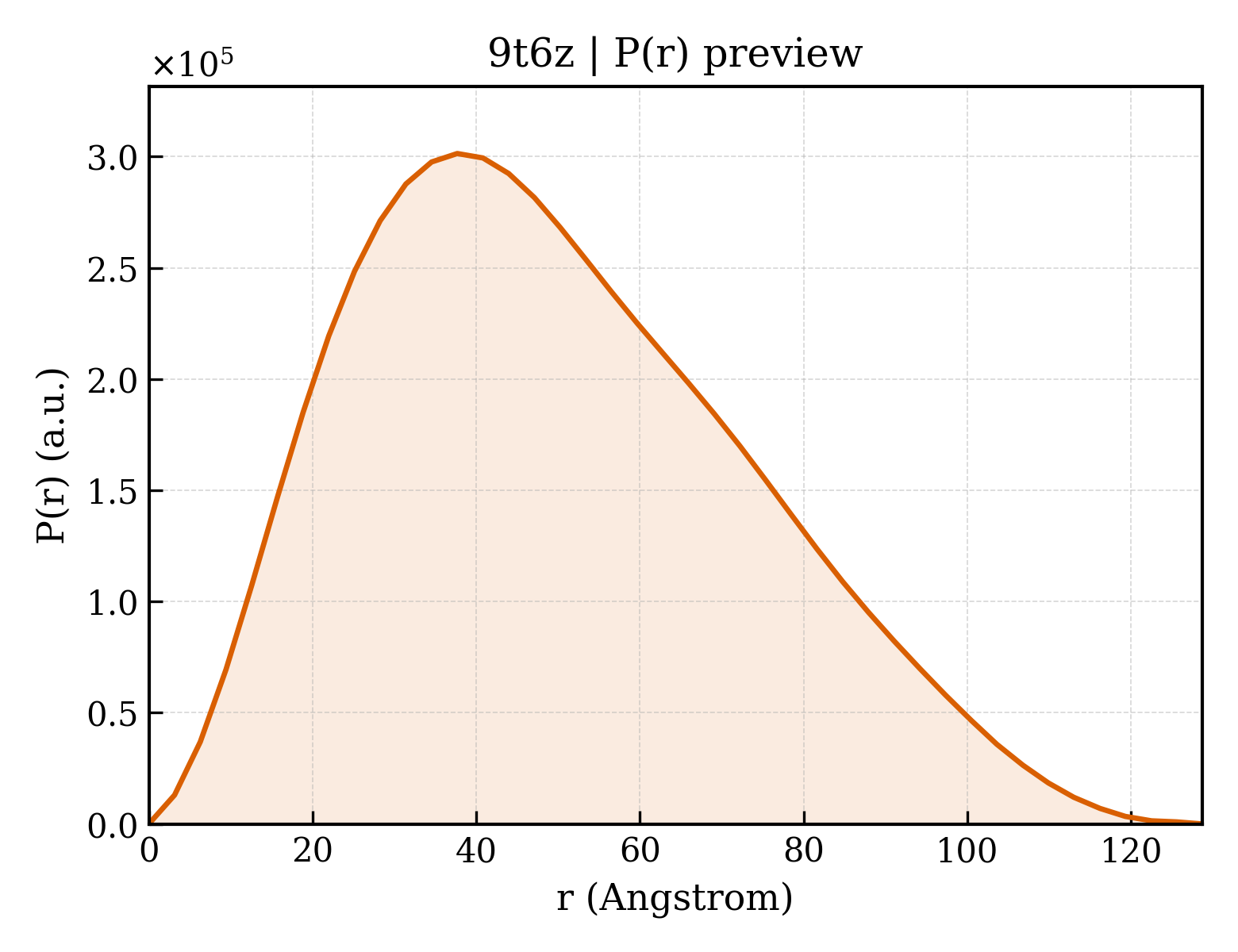

9t6z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	156.70 Å
Total Rg	156.80 Å
Atom count	520080
Residues	67920
Excluded volume	9240700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9t6z__assembly_1__model_1`	300-meric （300）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fab light chain
Molecular weight formula_weight	22800.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	8668

QSALTQPRSVSGSPGQSVTITCTGSSIDVGGYNYVSWYQQHPGKAPKLIIYDVGKRPSGVPARFSGSKSGNTASLTISGLQAEDETDYYCCSYAGSDTLVFGGGTKLTVLGQPKANPTVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Fab heavy chain
Molecular weight formula_weight	25439.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGGLVQPGGSLRLSCAASGFTFDDYVMHWVRQAPGKGLEWVSSISWHGGSIAYAGSVKGRFTISRDNARNSLFLQMNSLRTEDTALYFCAKDGPSSGWSYQNYYNAMDVWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKHHHHHH

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Genome polyprotein
Molecular weight formula_weight	27546.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

IGASSNTSDESMIETRCVLNSHSTAETTLDSFFSRAGLVGEIDLPLEGTTNPNGYANWDIDITGYAQMRRKVELFTYMRFDAEFTFVACTPTGQVVPQLLQYMFVPPGAPKPDSRESLAWQTATNPSVFVKLTDPPAQVSVPFMSPASAYQWFYDGYPTFGEHKQEKDLEYGACPNNMMGTFSVRTVGSSKSKYPLVVRIYMRMKHVRAWIPRPMRNQNYLFKANPNYAGNSIKPTGTSRTAITTL

Source Source

Source organism organism	Human enterovirus 71
Common name common_name	EV71, EV-71
NCBI taxonomy ID ncbi_taxonomy_id	39054
Host organism host_organism	Chlorocebus aethiops

Entity 4 Entity 4 polymer

Description description	Genome polyprotein
Molecular weight formula_weight	27814.3 kDa
EC 编号 ec_number	3.4.22.29,3.6.1.15,3.4.22.28,2.7.7.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SPSAEACGYSDRVAQLTIGNSTITTQEAANIIVGYGEWPSYCSDDDATAVDKPTRPDVSVNRFYTLDTKLWEKSSKGWYWKFPDVLTETGVFGQNAQFHYLYRSGFCIHVQCNASKFHQGALLVAILPEYVIGTVAGGTGTEDSHPPYKQTQPGADGFELQHPYVLDAGIPISQLTICPHQWINLRTNNCATIIVPYMNTLPFDSALNHCNFGLLVVPISPLDFDQGATPVIPITITLAPMCSEFAGLRQAVTQ

Source Source

Source organism organism	Human enterovirus 71
Common name common_name	EV71, EV-71
NCBI taxonomy ID ncbi_taxonomy_id	39054
Host organism host_organism	Chlorocebus aethiops

Entity 5 Entity 5 polymer

Description description	Genome polyprotein
Molecular weight formula_weight	26558.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GFPTEPKPGTNQFLTTDDGVSAPILPNFHPTPCIHIPGEVRNLLELCQVETILEVNNVPTNATSLMERLRFPVSAQAGKGELCAVFRADPGRDGPWQSTMLGQLCGYYTQWSGSLEVTFMFTGSFMATGKMLIAYTPPGGPLPKDRATAMLGTHVIWDFGLQSSVTLVIPWISNTHYRAHARDGVFDYYTTGLVSFWYQTNYVVPIGAPNTAYIIALAAAQKNFTMKLCKDTSHILQTASIQ

Source Source

Source organism organism	Human enterovirus 71
Common name common_name	EV71, EV-71
NCBI taxonomy ID ncbi_taxonomy_id	39054
Host organism host_organism	Chlorocebus aethiops

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	823
