9tu4
Uracil-DNA glycosylase from Micrococcus flavus
SAXS Profile

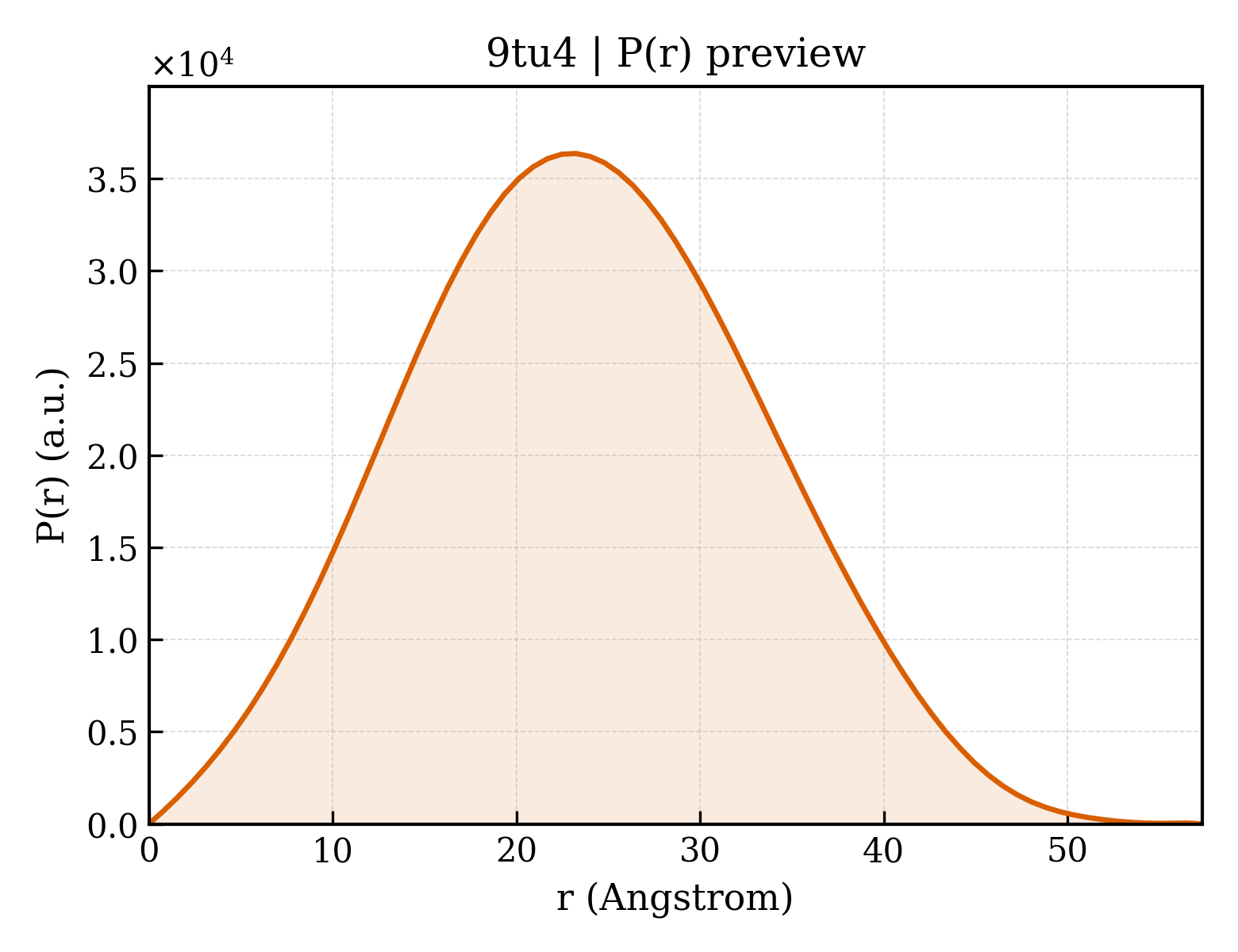

P(r) Distribution
1. Structure Basics
| entry_id | 9tu4 |
| deposition_date | 2026-01-08 |
| title | Uracil-DNA glycosylase from Micrococcus flavus |
| keywords | DNA Uracil Glycosylase, DNA repair, Hydrolysis of the N-glycosidic bond from deoxyuridine, enzyme, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.21 Å |
| rg_electron | 16.81 Å |
| i0 | 11310900.00 |
| molecular_weight | 24616.0 kDa |
| excluded_volume | 30686 ų |
| envelope_volume | 34950 ų |
| shell_volume | 17249 ų |
| envelope_diameter | 55.3 Å |
| shell_rg | 23.13 Å |
| envelope_rg | 17.04 Å |
| shape_rg | 16.80 Å |
| total_rg | 17.81 Å |
| total_atoms | 1738 |
| n_residues | 228 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.3 Å |
| rg_real | 18.09 Å |
| rg_real_error | 0.29 Å |
| i0_real | 1.1310e+07 |
| i0_real_error | 1.3580e+05 |
| rg_reciprocal | 18.11 Å |
| i0_reciprocal | 11310000.0000 |
| total_estimate | 0.8937 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.2 Å |
| skewness | 0.117 |
| kurtosis | -0.416 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1820000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.877; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.999 |
