9twc
Legionella monocytogenes SodA wt

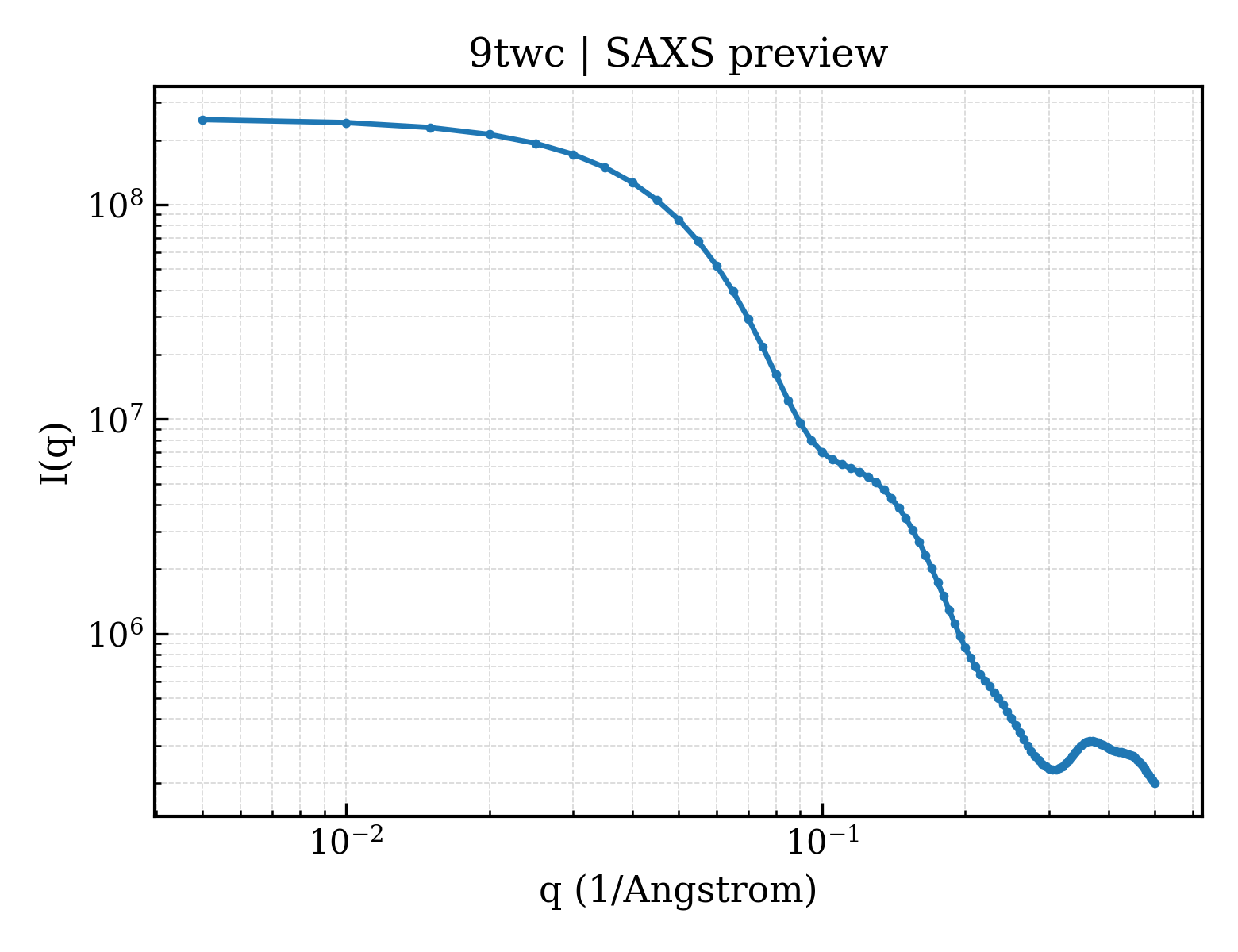

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9twc |
| deposition_date | 2026-01-14 |
| title | Legionella monocytogenes SodA wt |
| keywords | superoxide dismutase, SOD, redox, metalloenzyme, protein evolution, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.68 Å |
| rg_electron | 35.07 Å |
| i0 | 252052000.00 |
| molecular_weight | 130250.0 kDa |
| excluded_volume | 163320 ų |
| envelope_volume | 207130 ų |
| shell_volume | 49455 ų |
| envelope_diameter | 115.1 Å |
| shell_rg | 41.45 Å |
| envelope_rg | 34.63 Å |
| shape_rg | 35.05 Å |
| total_rg | 35.59 Å |
| total_atoms | 18018 |
| n_residues | 1158 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 112.5 Å |
| rg_real | 35.53 Å |
| rg_real_error | 0.74 Å |
| i0_real | 2.5210e+08 |
| i0_real_error | 3.9050e+06 |
| rg_reciprocal | 35.62 Å |
| i0_reciprocal | 252100000.0000 |
| total_estimate | 0.6761 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 48.6 Å |
| skewness | 0.136 |
| kurtosis | -0.511 |
| angular_range | — – 0.2200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 29950000.0000 |
| n_real_points | 45 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.932; Stabil: 1.000; Sysdev: 0.028; Positv: 1.000; Valcen: 0.998; Smooth: 0.906 |
