9u02
Medin fibril generated from the heterotypic interaction of Abeta40 and Medin.

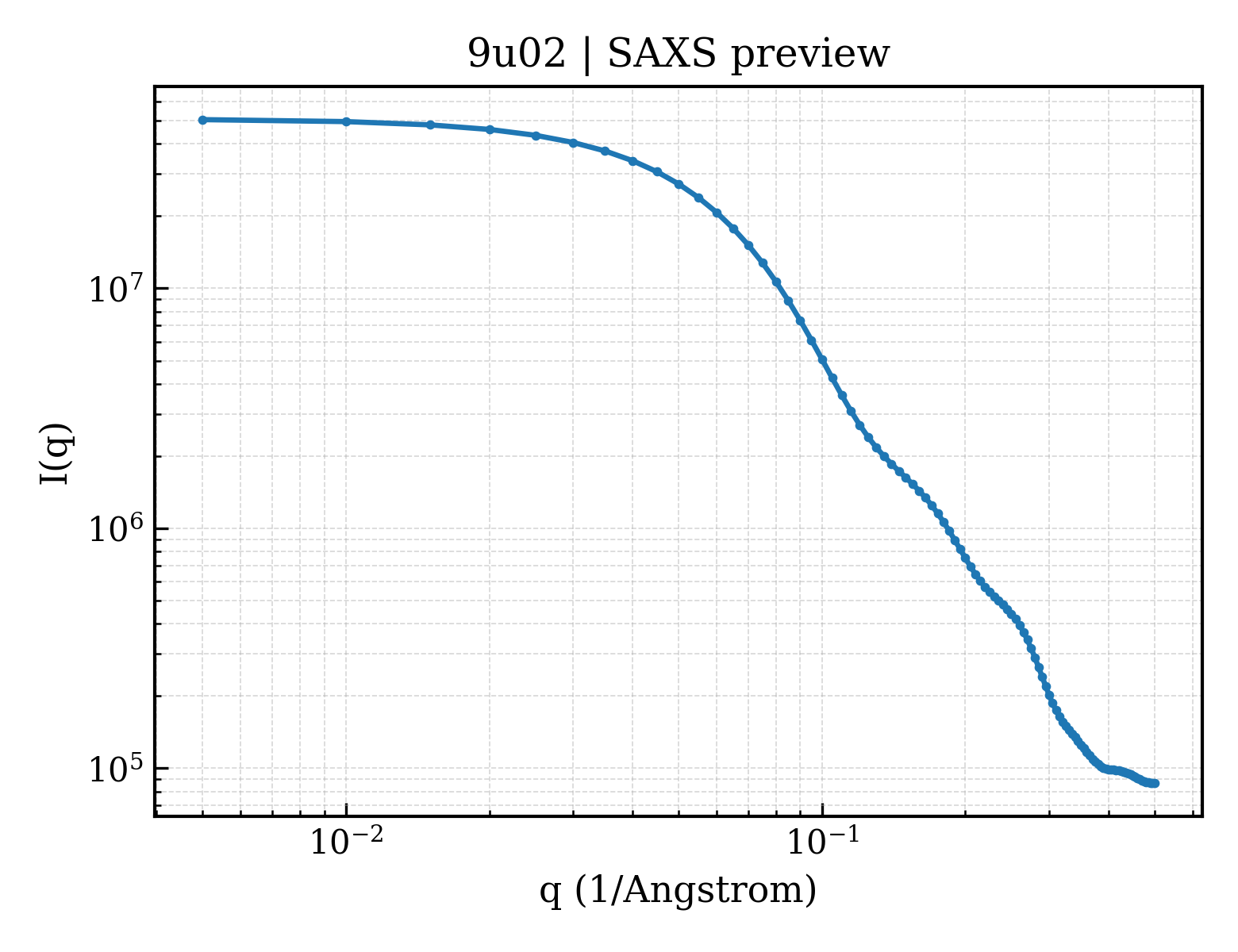

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9u02 |
| deposition_date | 2026-01-26 |
| title | Medin fibril generated from the heterotypic interaction of Abeta40 and Medin. |
| keywords | Medin, Amyloid, Aggregation, MFGE8, Neurodegeneration, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.40 Å |
| rg_electron | 26.98 Å |
| i0 | 50802200.00 |
| molecular_weight | 54140.0 kDa |
| excluded_volume | 67019 ų |
| envelope_volume | 86511 ų |
| shell_volume | 27085 ų |
| envelope_diameter | 95.2 Å |
| shell_rg | 34.03 Å |
| envelope_rg | 26.84 Å |
| shape_rg | 26.88 Å |
| total_rg | 28.01 Å |
| total_atoms | 7510 |
| n_residues | 500 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.9 Å |
| rg_real | 27.41 Å |
| rg_real_error | 0.80 Å |
| i0_real | 5.0800e+07 |
| i0_real_error | 8.3200e+05 |
| rg_reciprocal | 27.41 Å |
| i0_reciprocal | 50800000.0000 |
| total_estimate | 0.8899 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 33.6 Å |
| skewness | 0.309 |
| kurtosis | -0.278 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2488000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.879; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.950 |
