SAXSdb — 9u3r

▼

1. Structure Basics

entry_id	9u3r
deposition_date	2025-03-18
title	Cryo-EM structure of human AC9
keywords	enzyme, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.32 Å
rg_electron	42.98 Å
i0	124397000.00
molecular_weight	95024.0 kDa
excluded_volume	120380 Å³
envelope_volume	163370 Å³
shell_volume	33165 Å³
envelope_diameter	141.4 Å
shell_rg	45.04 Å
envelope_rg	42.21 Å
shape_rg	42.99 Å
total_rg	43.09 Å
total_atoms	6690
n_residues	847
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	145.1 Å
rg_real	42.77 Å
rg_real_error	1.97 Å
i0_real	1.2440e+08
i0_real_error	2.2100e+06
rg_reciprocal	42.32 Å
i0_reciprocal	124300000.0000
total_estimate	0.6912
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	27.4 Å
skewness	0.399
kurtosis	-0.920
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	17420000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.264; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.314; Smooth: 0.877

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Adenylate cyclase type 9,Protein M2-1
formula_weight	181560.2 kDa
ec_number	4.6.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6690

MASPPHQQLLHHHSTEVSCDSSGDSNSVRVKINPKQLSSNSHPKHCKYSISSSCSSSGDSGGVPRRVGGGGRLRRQKKLPQLFERASSRWWDPKFDSVNLEEACLERCFPQTQRRFRYALFYIGFACLLWSIYFAVHMRSRLIVMVAPALCFLLVCVGFFLFTFTKLYARHYAWTSLALTLLVFALTLAAQFQVLTPVSGRGDSSNLTATARPTDTCLSQVGSFSMCIEVLFLLYTVMHLPLYLSLCLGVAYSVLFETFGYHFRDEACFPSPGAGALHWELLSRGLLHGCIHAIGVHLFVMSQVRSRSTFLKVGQSIMHGKDLEVEKALKERMIHSVMPRIIADDLMKQGDEESENSVKRHATSSPKNRKKKSSIQKAPIAFRPFKMQQIEEVSILFADIVGFTKMSANKSAHALVGLLNDLFGRFDRLCEETKCEKISTLGDCYYCVAGCPEPRADHAYCCIEMGLGMIKAIEQFCQEKKEMVNMRVGVHTGTVLCGILGMRRFKFDVWSNDVNLANLMEQLGVAGKVHISEATAKYLDDRYEMEDGKVIERLGQSVVADQLKGLKTYLISGQRAKESRCSCAEALLSGFEVIDGSQVSSGPRGQGTASSGNVSDLAQTVKTFDNLKTCPSCGITFAPKSEAGAEGGAPQNGCQDEHKNSTKASGGPNPKTQNGLLSPPQEEKLTNSQTSLCEILQEKGRWAGVSLDQSALLPLRFKNIREKTDAHFVDVIKEDSLMKDYFFKPPINQFSLNFLDQELERSYRTSYQEEVIKNSPVKTFASPTFSSLLDVFLSTTVFLTLSTTCFLKYEAATVPPPPAALAVFSAALLLEVLSLAVSIRMVFFLEDVMACTKRLLEWIAGWLPRHCIGAILVSLPALAVYSHVTSEYETNIHFPVFTGSAALIAVVHYCNFCQLSSWMRSSLATVVGAGPLLLLYVSLCPDSSVLTSPLDAVQNFSSERNPCNSSVPRDLRRPASLIGQEVVLVFFLLLLLVWFLNREFEVSYRLHYHGDVEADLHRTKIQSMRDQADWLLRNIIPYHVAEQLKVSQTYSKNHDSGGVIFASIVNFSEFYEENYEGGKECYRVLNELIGDFDELLSKPDYSSIEKIKTIGATYMAASGLNTAQAQDGSHPQEHLQILFEFAKEMMRVVDDFNNNMLWFNFKLRVGFNHGPLTAGVIGTTKLLYDIWGDTVNIASRMDTTGVECRIQVSEESYRVLSKMGYDFDYRGTVNVKGKGQMKTYLYPKCTDHRVIPQHQLSISPDIRVQVDGSIGRSPTDEIANLVPSVQYVDKTSLGSDSSTQAKDAHLSPKRPWKEPVKAEERGRFGKAIEKDDCDETGIEEANELTKLNVSKSVGSNSENLYFQGSMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKHHHHHHHHHHDYKDDDDK

Source

organism	Human respiratory syncytial virus
ncbi_taxonomy_id	11250
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.230 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.23 Å
resolution_method	—
num_particles	150460

fit	/app/data/saxs_computation/u3/9u3r/9u3r.fit
pddf	/app/data/pr_computation/u3/9u3r/9u3r.pr.out
profile	/app/data/saxs_computation/u3/9u3r/9u3r.dat

Cryo-EM structure of human AC9

SAXS Profile

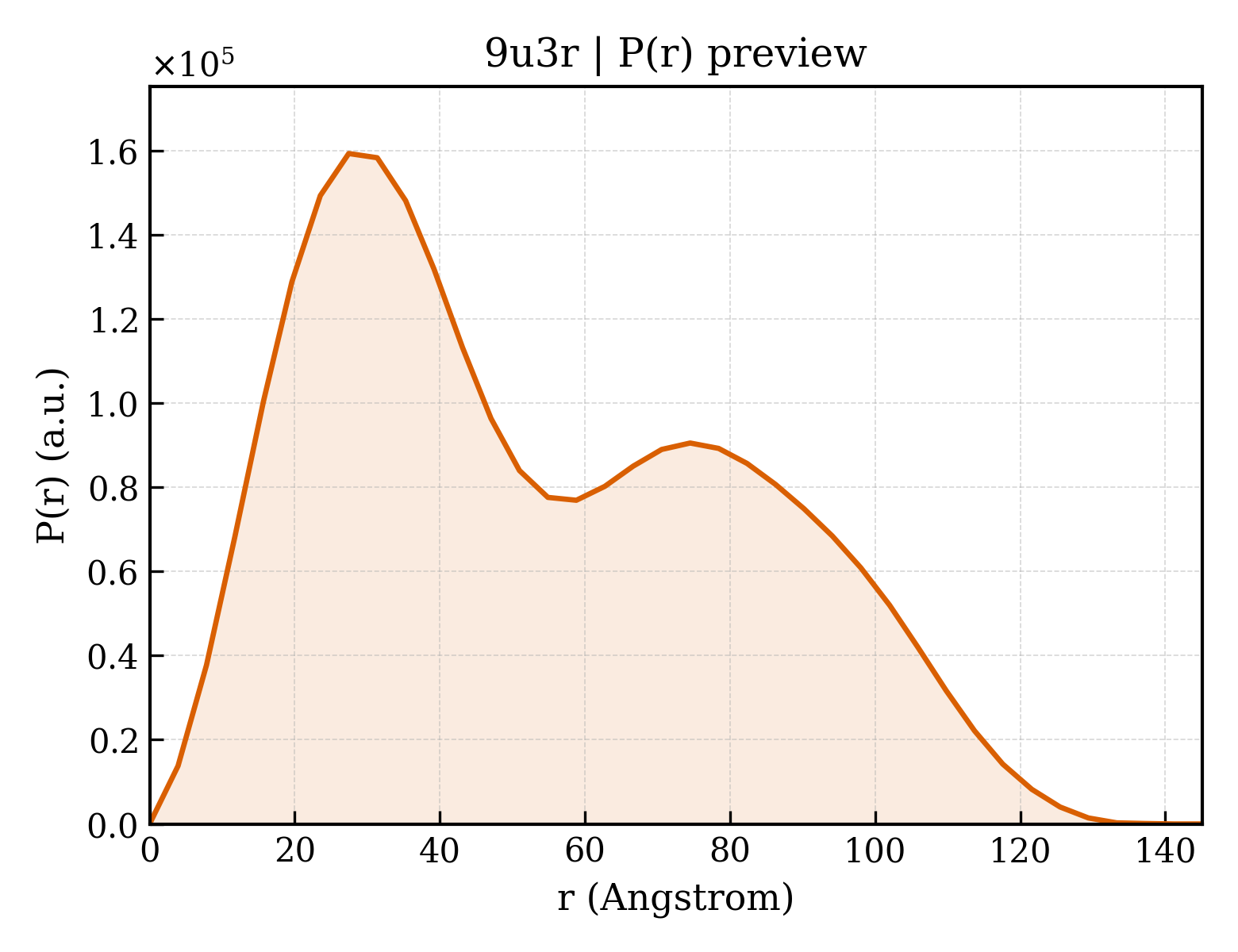

P(r) Distribution
