SAXSdb — 9u4s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphatidylinositol 5-phosphate 4-kinase type-2 gamma

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	~{N}-[5-(4-oxidanylidene-3-propyl-quinazolin-6-yl)pyridin-2-yl]pentanamide × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PI42C_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–349； UniProt 32–421 Author chain B； PDBConstruct 2–349； UniProt 32–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9u4s
Deposition date deposition_date	2025-03-20
Structure title title	Crystal Structure of PI5P4K-gamma in complex with n40
Keywords keywords	Kinase, Transferase, Lipid metabolism, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9u4s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9u4s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

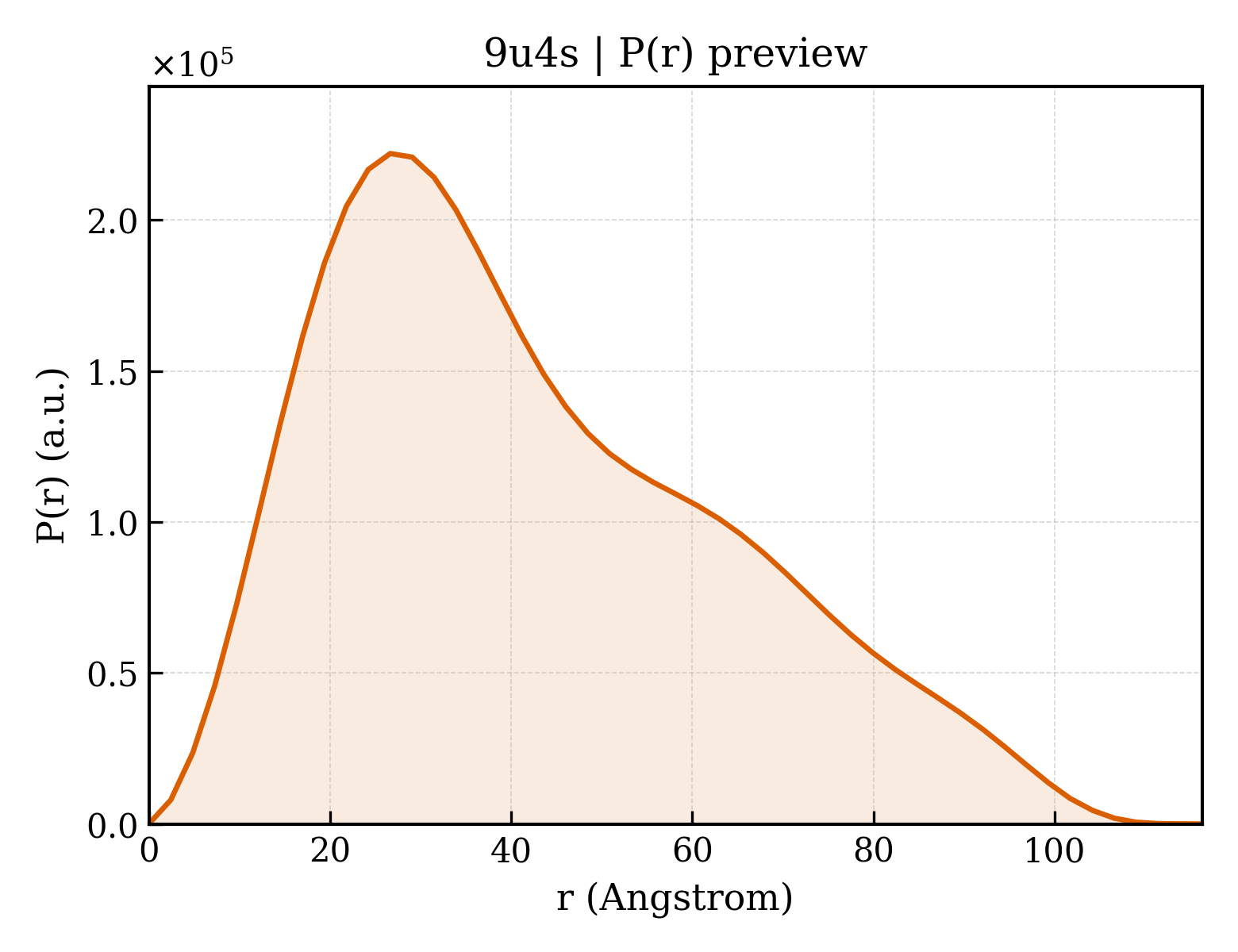

9u4s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.23 Å
Rg (electron density)	33.30 Å
Total Rg	33.56 Å
Atom count	4776
Residues	605
Excluded volume	84505 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9u4s__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Phosphatidylinositol 5-phosphate 4-kinase type-2 gamma
Molecular weight formula_weight	40205.9 kDa
EC 编号 ec_number	2.7.1.149
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4827

GHFVQQKVKVFRAADPLVGVFLWGVAHSINELSQVPPPVMLLPDDFKASSKIKVNNHLFHRENLPSHFKFKEYCPQVFRNLRDRFGIDDQDYLVSLTRNPPSESEGSDGRFLISYDRTLVIKEVSSEDIADMHSNLSNYHQYIVKCHGNTLLPQFLGMYRVSVDNEDSYMLVMRNMFSHRLPVHRKYDLKGSLVSREASDKEKVKELPTLKDMDFLNKNQKVYIGEEEKKIFLEKLKRDVEFLVQLKIMDYSLLLGIHDIIRGSEPEEELGPGEFESFIDVYAIRSAEGAPQKEVYFMGLIDILTQYDAKKKAAHAAKTVKHGAGAEISTVHPEQYAKRFLDFITNIFA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	~{N}-[5-(4-oxidanylidene-3-propyl-quinazolin-6-yl)pyridin-2-yl]pentanamide
Molecular weight formula_weight	364.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▶

Unit-cell length a length_a	263.910 Å
Unit-cell length b length_b	47.760 Å
Unit-cell length c length_c	66.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	59.230 Å
R factor r_factor	0.2800
R_work r_work	0.2787
R_free r_free	0.3036
