9u7b
Crystal structure of Rv0042c
SAXS Profile

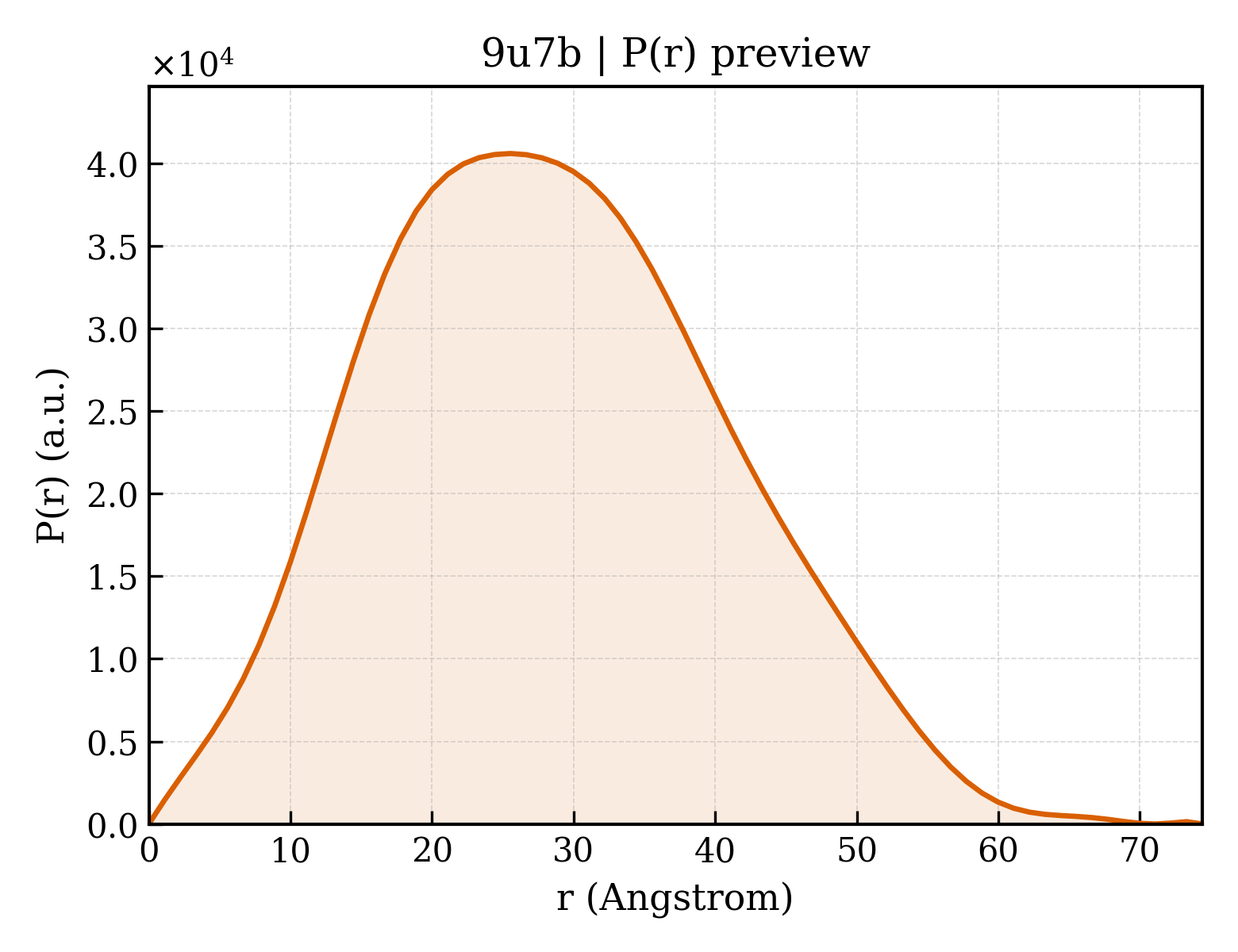

P(r) Distribution
1. Structure Basics
| entry_id | 9u7b |
| deposition_date | 2025-03-24 |
| last_revision | 2026-03-25 |
| title | Crystal structure of Rv0042c |
| keywords | MarR-family, Transcription Regulator, FtsZ, GENE REGULATION; GENE REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.89 Å |
| rg_electron | 20.85 Å |
| i0 | 16755500.00 |
| molecular_weight | 30441.0 kDa |
| excluded_volume | 38260 ų |
| envelope_volume | 47243 ų |
| shell_volume | 19894 ų |
| envelope_diameter | 75.2 Å |
| shell_rg | 26.48 Å |
| envelope_rg | 21.00 Å |
| shape_rg | 20.85 Å |
| total_rg | 21.68 Å |
| total_atoms | 2138 |
| n_residues | 282 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 74.4 Å |
| rg_real | 21.83 Å |
| rg_real_error | 0.59 Å |
| i0_real | 1.6760e+07 |
| i0_real_error | 2.4230e+05 |
| rg_reciprocal | 21.84 Å |
| i0_reciprocal | 16760000.0000 |
| total_estimate | 0.8032 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.5 Å |
| skewness | 0.258 |
| kurtosis | -0.397 |
| angular_range | — – 0.3650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3083000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.000 |
