9u7m
Solution NMR structure of SA-XV peptide bound to SDS micelle.

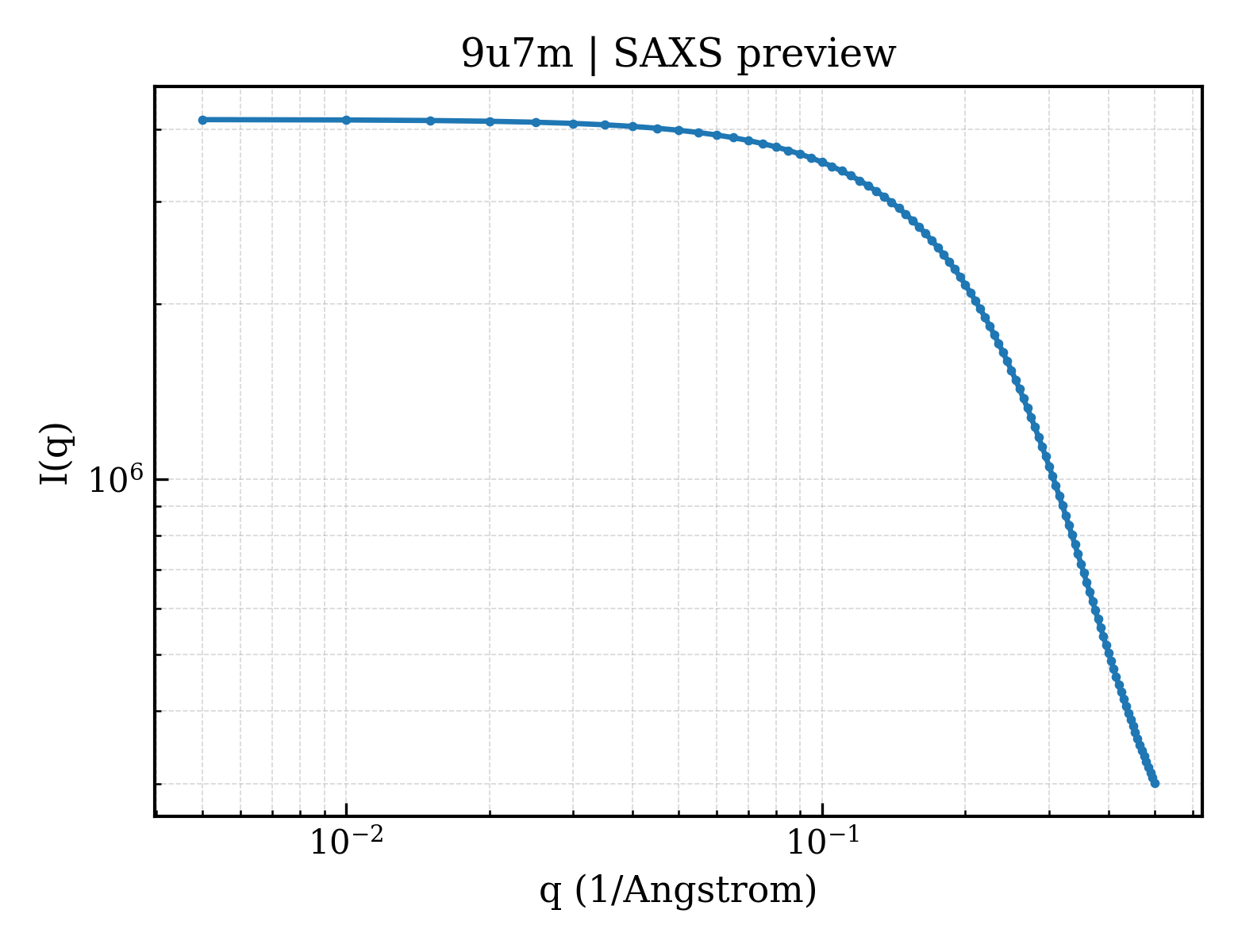

SAXS Profile

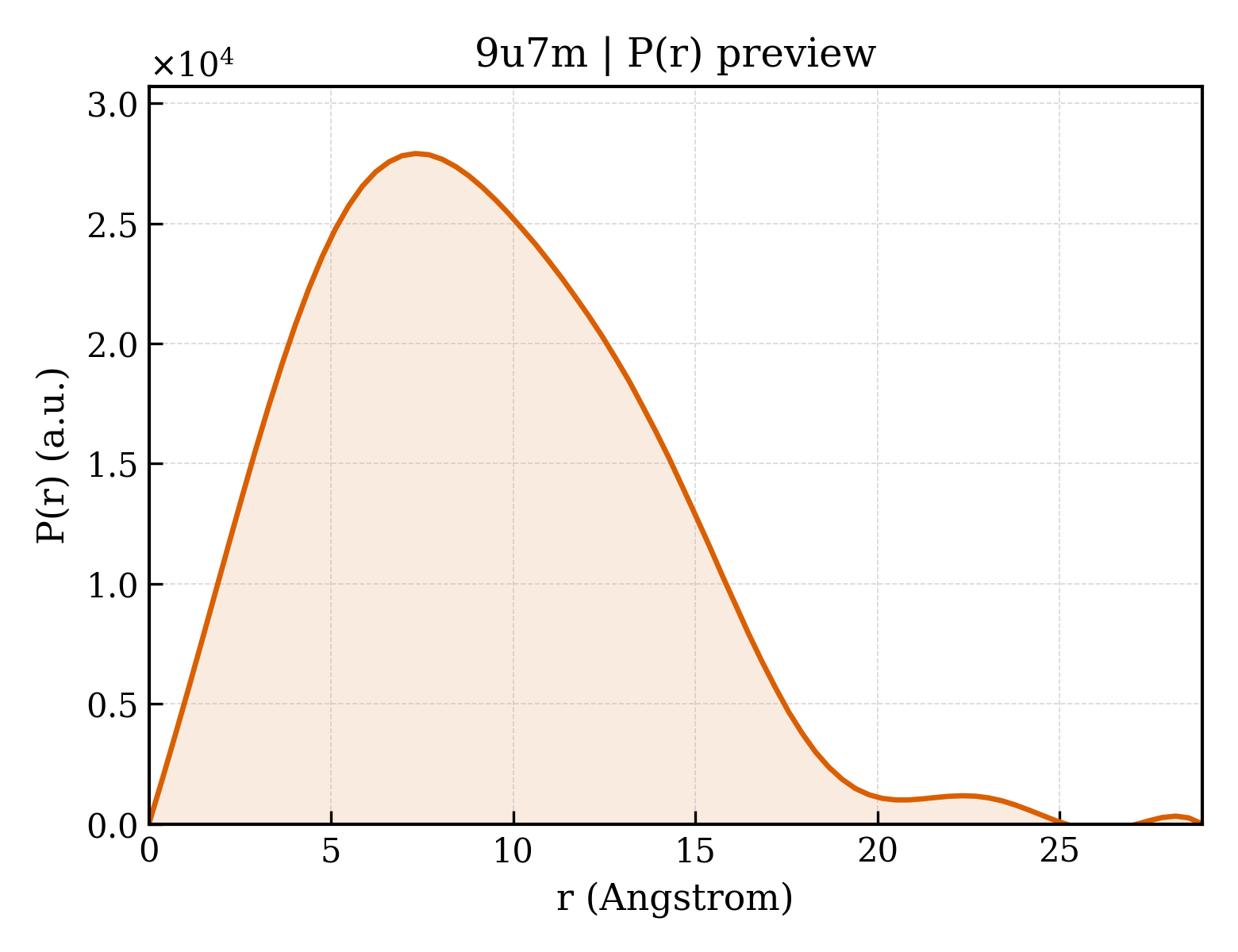

P(r) Distribution
1. Structure Basics
| entry_id | 9u7m |
| deposition_date | 2025-03-24 |
| title | Solution NMR structure of SA-XV peptide bound to SDS micelle. |
| keywords | STRUCTURE FROM CYANA 2.1 Antifungal peptide Microbial Keratitis Random Coil Loosely bound to SDS micelle, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.08 Å |
| rg_electron | 7.33 Å |
| i0 | 4151920.00 |
| molecular_weight | 16730.0 kDa |
| excluded_volume | 21224 ų |
| envelope_volume | 4788 ų |
| shell_volume | 5145 ų |
| envelope_diameter | 28.6 Å |
| shell_rg | 13.36 Å |
| envelope_rg | 9.10 Å |
| shape_rg | 7.25 Å |
| total_rg | 8.24 Å |
| total_atoms | 2390 |
| n_residues | 150 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 28.9 Å |
| rg_real | 7.14 Å |
| rg_real_error | 0.54 Å |
| i0_real | 4.1520e+06 |
| i0_real_error | 4.5690e+04 |
| rg_reciprocal | 7.14 Å |
| i0_reciprocal | 4152000.0000 |
| total_estimate | 0.7599 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 7.3 Å |
| skewness | 0.470 |
| kurtosis | 0.032 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1665.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.571; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.278; Smooth: 0.885 |
