9u8k

Structure of ASC-PYD filament from condensates

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Apoptosis-associated speck-like protein containing a CARD

human gammaherpesvirus 4

UniProt Q9EPB4

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 39 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name ASC_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 1–105; UniProt 1–105 Author chain B; PDBConstruct 1–105; UniProt 1–105 Author chain C; PDBConstruct 1–105; UniProt 1–105 Author chain D; PDBConstruct 1–105; UniProt 1–105 Author chain E; PDBConstruct 1–105; UniProt 1–105 Author chain F; PDBConstruct 1–105; UniProt 1–105 Author chain G; PDBConstruct 1–105; UniProt 1–105 Author chain H; PDBConstruct 1–105; UniProt 1–105 Author chain I; PDBConstruct 1–105; UniProt 1–105 Author chain J; PDBConstruct 1–105; UniProt 1–105 Author chain K; PDBConstruct 1–105; UniProt 1–105 Author chain L; PDBConstruct 1–105; UniProt 1–105 Author chain M; PDBConstruct 1–105; UniProt 1–105 Author chain N; PDBConstruct 1–105; UniProt 1–105 Author chain O; PDBConstruct 1–105; UniProt 1–105 Author chain P; PDBConstruct 1–105; UniProt 1–105 Author chain Q; PDBConstruct 1–105; UniProt 1–105 Author chain R; PDBConstruct 1–105; UniProt 1–105 Author chain S; PDBConstruct 1–105; UniProt 1–105 Author chain T; PDBConstruct 1–105; UniProt 1–105 Author chain U; PDBConstruct 1–105; UniProt 1–105 Author chain V; PDBConstruct 1–105; UniProt 1–105 Author chain W; PDBConstruct 1–105; UniProt 1–105 Author chain X; PDBConstruct 1–105; UniProt 1–105 Author chain Y; PDBConstruct 1–105; UniProt 1–105 Author chain Z; PDBConstruct 1–105; UniProt 1–105 Author chain a1; PDBConstruct 1–105; UniProt 1–105 Author chain b1; PDBConstruct 1–105; UniProt 1–105 Author chain c1; PDBConstruct 1–105; UniProt 1–105 Author chain d1; PDBConstruct 1–105; UniProt 1–105 Author chain e1; PDBConstruct 1–105; UniProt 1–105 Author chain f1; PDBConstruct 1–105; UniProt 1–105 Author chain g1; PDBConstruct 1–105; UniProt 1–105 Author chain h1; PDBConstruct 1–105; UniProt 1–105 Author chain i1; PDBConstruct 1–105; UniProt 1–105 Author chain j1; PDBConstruct 1–105; UniProt 1–105 Author chain k1; PDBConstruct 1–105; UniProt 1–105 Author chain l1; PDBConstruct 1–105; UniProt 1–105 Author chain m1; PDBConstruct 1–105; UniProt 1–105

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9u8k
Deposition date deposition_date2025-03-26
Structure title titleStructure of ASC-PYD filament from condensates
Keywords keywordsASC-PYD, filament, condensates, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9u8k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

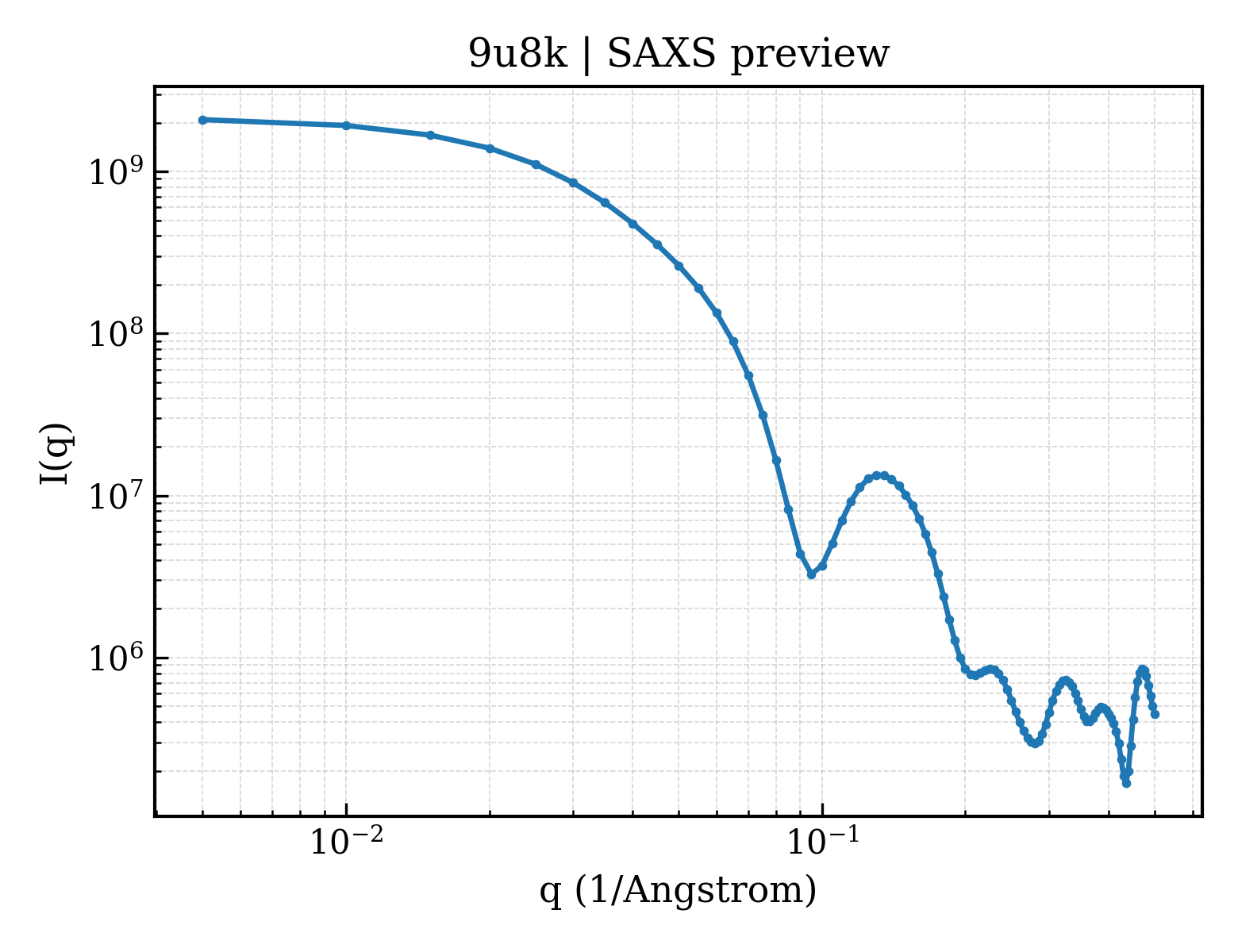

9u8k__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

9u8k__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)57.38 Å
Rg (electron density)57.73 Å
Total Rg57.61 Å
Atom count27577
Residues3477
Excluded volume497780 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9u8k__assembly_1__model_1 39-meric (39) Success 4.1.3-1-20251215 (887e7ef) View Download
▶
