9u9x
1H, 13C, and 15N resonance assignments and solution structure of the CID domain of SCAF8 (RBM16)

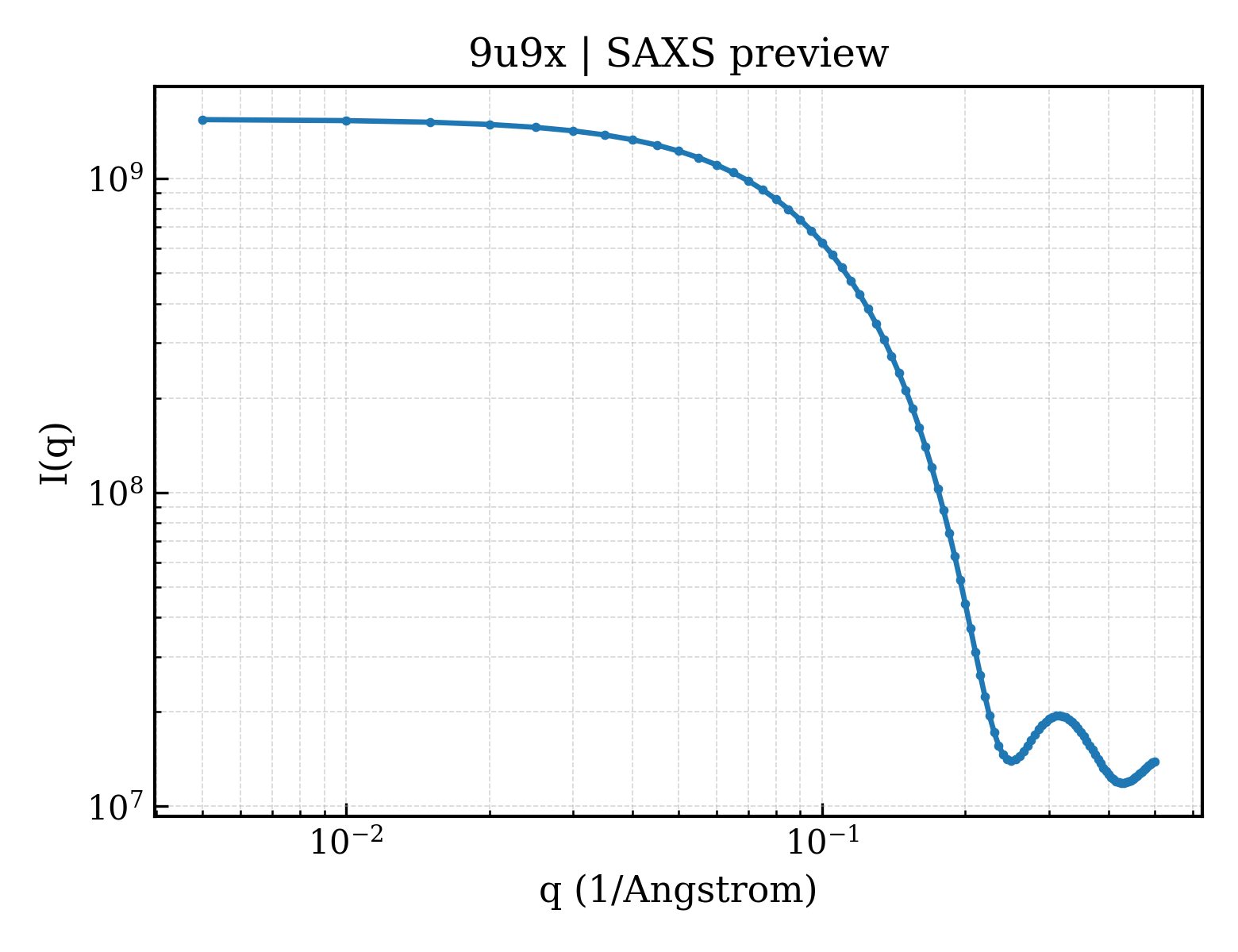

SAXS Profile

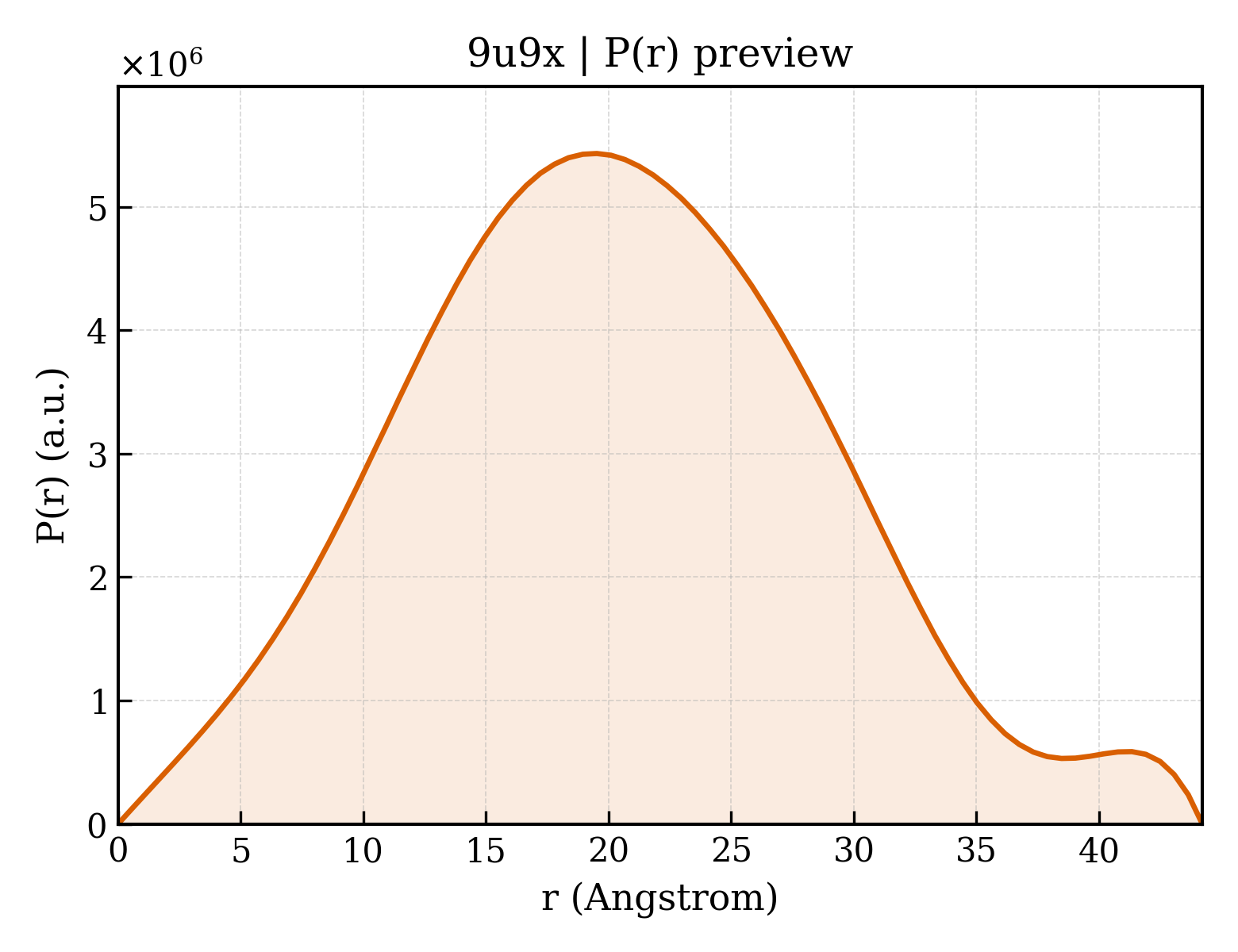

P(r) Distribution
1. Structure Basics
| entry_id | 9u9x |
| deposition_date | 2025-03-30 |
| last_revision | 2026-04-01 |
| title | 1H, 13C, and 15N resonance assignments and solution structure of the CID domain of SCAF8 (RBM16) |
| keywords | ;CID domain, SCAF8, RBM16, transcription, Structural Genomics, PSI-2, Protein Structural Genomics/Proteomics Initiative, RSGI, Protein Structure Initiative, RIKEN Structural Genomics/Proteomics Initiative ;; STRUCTURAL GENOMICS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.69 Å |
| rg_electron | 15.82 Å |
| i0 | 1545060000.00 |
| molecular_weight | 341230.0 kDa |
| excluded_volume | 430500 ų |
| envelope_volume | 47151 ų |
| shell_volume | 19163 ų |
| envelope_diameter | 88.1 Å |
| shell_rg | 27.89 Å |
| envelope_rg | 23.46 Å |
| shape_rg | 15.78 Å |
| total_rg | 16.17 Å |
| total_atoms | 48420 |
| n_residues | 3040 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.2 Å |
| rg_real | 15.54 Å |
| rg_real_error | 0.05 Å |
| i0_real | 1.4660e+09 |
| i0_real_error | 1.2680e+07 |
| rg_reciprocal | 16.80 Å |
| i0_reciprocal | 1545000000.0000 |
| total_estimate | 0.6786 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 19.5 Å |
| skewness | 0.214 |
| kurtosis | -0.232 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 2.9450 |
| highest_alpha | 546900.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.007; Oscil: 0.960; Stabil: 0.987; Sysdev: 0.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.000 |
