SAXSdb — 9ua5

▼

1. Structure Basics

entry_id	9ua5
deposition_date	2025-03-31
title	RABV G binding with CTB011 Fab and CTB012 Fab
keywords	RABV, G protein, Neutralizing antibody, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.32 Å
rg_electron	31.70 Å
i0	118551000.00
molecular_weight	86038.0 kDa
excluded_volume	107600 Å³
envelope_volume	144520 Å³
shell_volume	38801 Å³
envelope_diameter	112.6 Å
shell_rg	37.78 Å
envelope_rg	31.23 Å
shape_rg	31.68 Å
total_rg	32.32 Å
total_atoms	6046
n_residues	780
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.0 Å
rg_real	32.20 Å
rg_real_error	0.57 Å
i0_real	1.1860e+08
i0_real_error	1.7820e+06
rg_reciprocal	32.25 Å
i0_reciprocal	118600000.0000
total_estimate	0.9056
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	41.2 Å
skewness	0.193
kurtosis	-0.494
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	19600000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.956; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.901

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Glycoprotein
formula_weight	44823.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C
atom_count	6054

KFPIYTIPDKLGPWSPIDIHHLSCPNNLVVEDEGCTNLSGFSYMELKVGYISAIKMNGFTCTGVVTEAETYTNFVGYVTTTFKRKHFRPTPDACRAAYNWKMAGDPRYEESLHNPYPDYHWLRTVKTTKESLVIISPSVADLDPYDRSLHSPVFPGGNCSGVAVSSTYCSTNHDYTIWMPENPRLGMSCDIFTNSRGKRASKGSETCGFVDERGLYKSLKGACKLKLCGVLGLRLMDGTWVAMQTSNETKWCPPGQLVNLHDFRSDEIEHLVVEELVKKREECLDALESIMTTKSVSFRRLSHLRKLVPGFGKAYTIFNKTLMEADAHYKSVRTWNEIIPSKGCLRVGGRCHPHVNGVFFNGIILGPDGNVLIPEMQSSLLQQHMELLVSSVIPLMHPL

Source

organism	Lyssavirus rabies
ncbi_taxonomy_id	11292
host_organism	Homo sapiens

Entity 2 polymer

description	CTB011 Fab Heavy chain
formula_weight	13165.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

QVQLVQSGAEVKKPGASVKVSCKASGYSFTDYIMLWVRQAPGQRLEWIGDIYPYYGSTSYNLKFKGKATLTVDTSASTAYMELSSLRSEDTAVYYCARQGGDGNYVLFDYWGQGTLVTV

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 3 polymer

description	CTB011 Fab light chain
formula_weight	11526.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

DIQMTQSPSSLSASVGDRVTITCKASQNVGTTVAWYQQKPGKAPKALIYSASYRYSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQYNSYPFTFGQGTKLEI

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 4 polymer

description	CTB012 Fab light chain
formula_weight	12123.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

DIVMTQSPLSLPVTPGEPASISCKSTKSLLNSDGFTYLDWYLQKPGQSPQLLIYLVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCFQSNYLPFTFGGGTKVEI

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 5 polymer

description	CTB012 Fab heavy chain
formula_weight	12930.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

EVQLVESGGGLVQPGGSLILSCAASGFTFSGFAMSWVRQAPGKGLEWVATISSGGTYTYSPDSVMGRFTISRDNAKNSLYLQMNSLRAEDTAVYYCARRLRRNYYSMDYWGQGTMVTV

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.94 Å
resolution_method	—
num_particles	359068

fit	/app/data/saxs_computation/ua/9ua5/9ua5.fit
pddf	/app/data/pr_computation/ua/9ua5/9ua5.pr.out
profile	/app/data/saxs_computation/ua/9ua5/9ua5.dat

RABV G binding with CTB011 Fab and CTB012 Fab

SAXS Profile

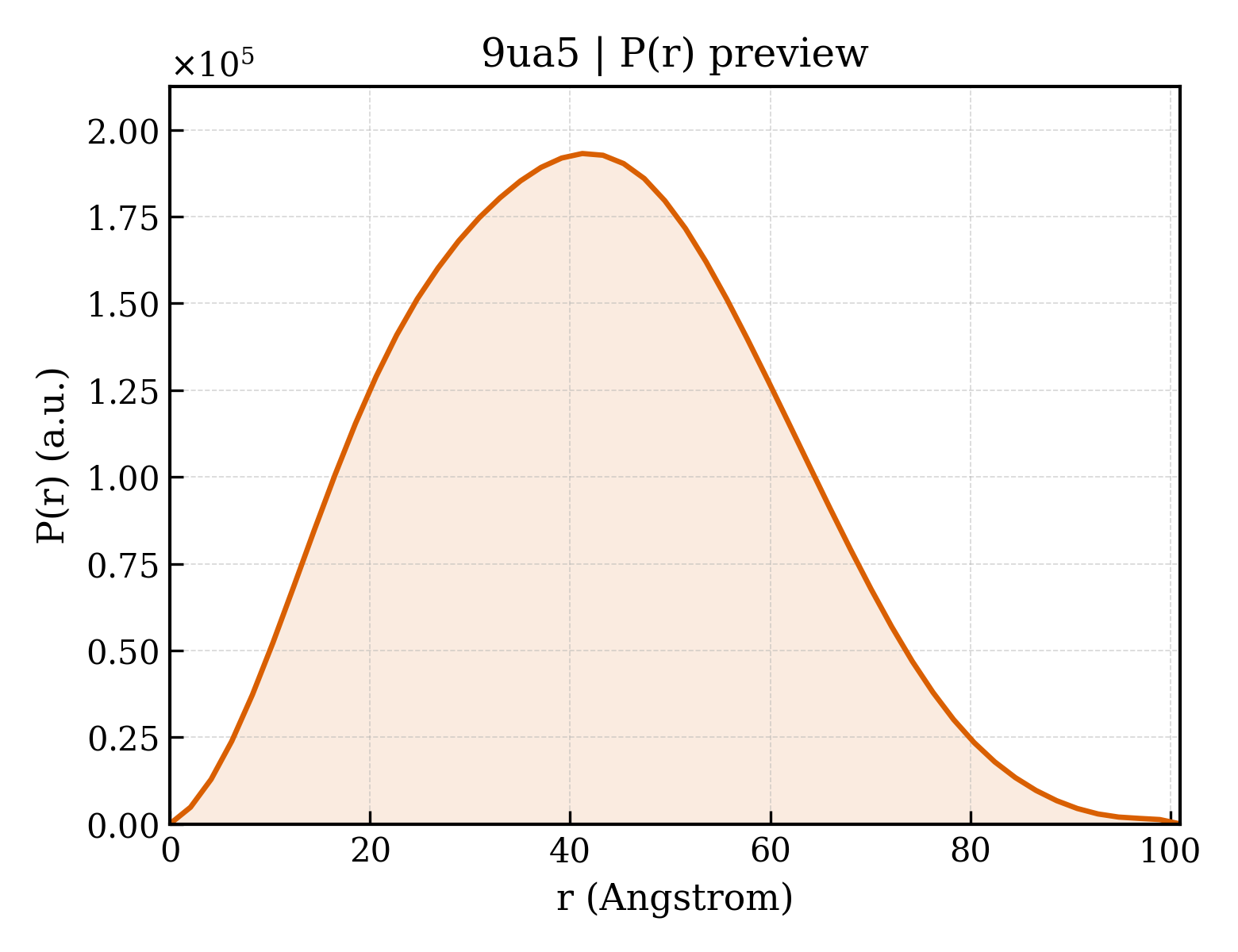

P(r) Distribution
