9ual
Crystal structure of Trimucrin

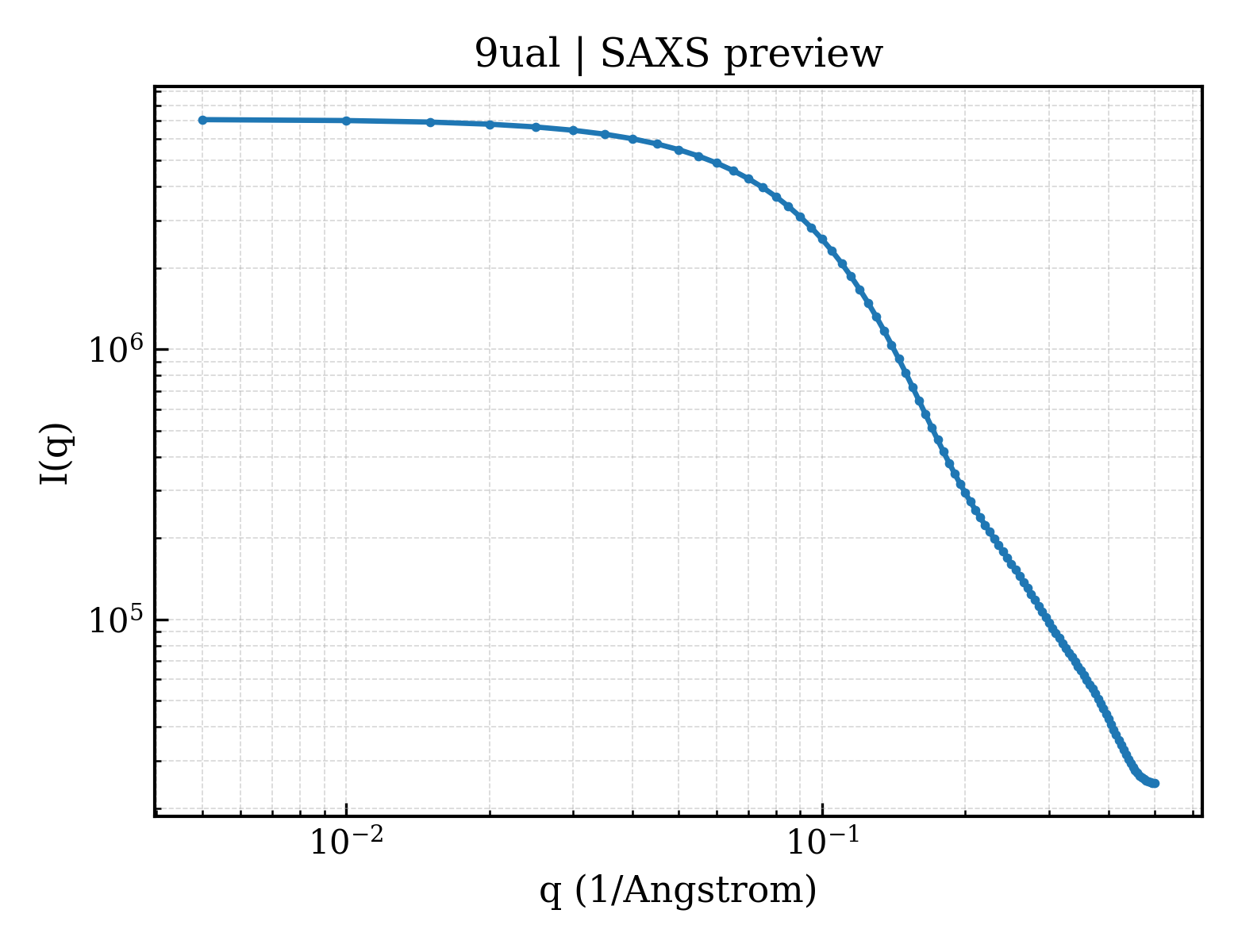

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9ual |
| deposition_date | 2025-04-01 |
| title | Crystal structure of Trimucrin |
| keywords | Disintegrin, Platelet aggregation inhibitor, BLOOD CLOTTING; BLOOD CLOTTING |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.60 Å |
| rg_electron | 17.03 Å |
| i0 | 7090950.00 |
| molecular_weight | 15927.0 kDa |
| excluded_volume | 18363 ų |
| envelope_volume | 24608 ų |
| shell_volume | 12620 ų |
| envelope_diameter | 65.9 Å |
| shell_rg | 22.27 Å |
| envelope_rg | 17.35 Å |
| shape_rg | 17.09 Å |
| total_rg | 17.70 Å |
| total_atoms | 1068 |
| n_residues | 140 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.7 Å |
| rg_real | 17.62 Å |
| rg_real_error | 0.63 Å |
| i0_real | 7.0910e+06 |
| i0_real_error | 9.9450e+04 |
| rg_reciprocal | 17.62 Å |
| i0_reciprocal | 7091000.0000 |
| total_estimate | 0.6444 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 21.2 Å |
| skewness | 0.348 |
| kurtosis | -0.246 |
| angular_range | — – 0.4500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 969700.0000 |
| n_real_points | 76 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.763; Stabil: 0.999; Sysdev: 0.424; Positv: 1.000; Valcen: 0.814; Smooth: 0.000 |
