1. Protein Identity and Related Structures Protein Identity & Related Structures

High affinity cationic amino acid transporter 1

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 3 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–601	Not recorded	Surface protein × 1 （P03390） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ORN L-ornithine × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.65 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9UAT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9FQT Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the apo inward-open state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 13–622（610 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9FQU Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the arginine-bound inward-occluded state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 13–622（610 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 Y01 CHOLESTEROL HEMISUCCINATE × 2 ARG ARGININE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å
9FQV Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the lysine-bound inward-occluded state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 13–622（610 aa）	Not recorded	LYS LYSINE × 1 Y01 CHOLESTEROL HEMISUCCINATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
9FQW Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the ornithine-bound inward-occluded state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 13–622（610 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 2 ORN L-ornithine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CTR1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–601； UniProt 1–601

Surface protein

Friend murine leukemia virus (ISOLATE 57)

UniProt P03390

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 3 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 36–264	Not recorded	High affinity cationic amino acid transporter 1 × 1 （Q09143） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ORN L-ornithine × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.65 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9UAT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AOL FRIEND MURINE LEUKEMIA VIRUS RECEPTOR-BINDING DOMAIN Deposited 1997-07-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 43–270（228 aa） Fragment：RECEPTOR-BINDING DOMAIN	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；PROTEIN WAS CRYSTALLIZED FROM 150 MM ZINC ACETATE, 100 MM SODIUM CACODYLATE, PH 6.5, 19% PEG 8000	Resolution 2.00 Å R-free 0.264
9FQT Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the apo inward-open state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 35–270（236 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9FQU Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the arginine-bound inward-occluded state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 35–270（236 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 Y01 CHOLESTEROL HEMISUCCINATE × 2 ARG ARGININE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å
9FQV Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the lysine-bound inward-occluded state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 35–270（236 aa）	Not recorded	LYS LYSINE × 1 Y01 CHOLESTEROL HEMISUCCINATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
9FQW Cryo-EM structure of MmCAT1 bound with FrMLV-RBD in the ornithine-bound inward-occluded state Deposited 2024-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 35–270（236 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 2 ORN L-ornithine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ENV_MLVF5
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–229； UniProt 36–264

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9uat
Deposition date deposition_date	2025-04-01
Structure title title	The structure of mCAT1 in complex with its substrate ornithine and the RBD of FrMLV.
Keywords keywords	receptor, complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.83 Å
Radius of gyration Rg (electron density) rg_electron	32.57 Å
Forward intensity I(0) i0	98559900.00
Molecular weight molecular_weight	83327.0 kDa
Excluded volume excluded_volume	106140 Å³
Envelope volume envelope_volume	138380 Å³
Hydration-shell volume shell_volume	36501 Å³
Envelope diameter envelope_diameter	117.9 Å
Shell Rg shell_rg	38.07 Å
Envelope Rg envelope_rg	32.55 Å
Shape Rg shape_rg	32.62 Å
Total Rg total_rg	32.89 Å
Total atoms total_atoms	5865
Residues n_residues	752
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

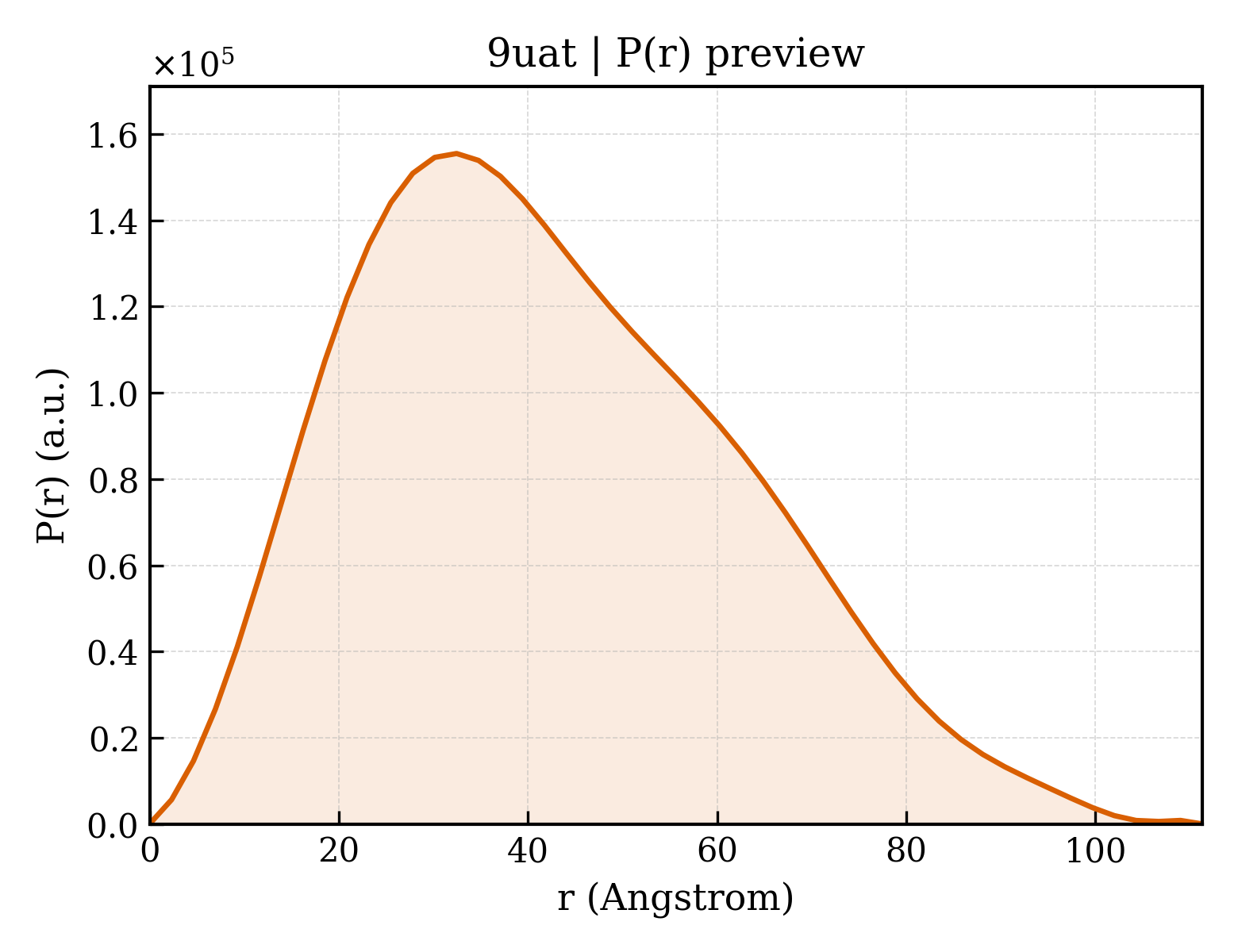

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	111.3 Å
Rg (real space) rg_real	33.01 Å
Rg uncertainty (real space) rg_real_error	1.00 Å
I(0) (real space) i0_real	9.8560e+07
I(0) uncertainty (real space) i0_real_error	1.3240e+06
Rg (reciprocal space) rg_reciprocal	32.94 Å
I(0) (reciprocal space) i0_reciprocal	98550000.0000
Solution quality estimate total_estimate	0.8661
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.5 Å
Skewness Skewness skewness	0.432
Kurtosis Kurtosis kurtosis	-0.386
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17030000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.888; Smooth: 0.869

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	High affinity cationic amino acid transporter 1
Molecular weight formula_weight	64978.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5865

MGCKNLLGLGQQMLRRKVVDCSREESRLSRCLNTYDLVALGVGSTLGAGVYVLAGAVARENAGPAIVISFLIAALASVLAGLCYGEFGARVPKTGSAYLYSYVTVGELWAFITGWNLILSYIIGTSSVARAWSATFDELIGKPIGEFSRQHMALNAPGVLAQTPDIFAVIIIIILTGLLTLGVKESAMVNKIFTCINVLVLCFIVVSGFVKGSIKNWQLTEKNFSCNNNDTNVKYGEGGFMPFGFSGVLSGAATCFYAFVGFDCIATTGEEVKNPQKAIPVGIVASLLICFIAYFGVSAALTLMMPYFCLDIDSPLPGAFKHQGWEEAKYAVAIGSLCALSTSLLGSMFPMPRVIYAMAEDGLLFKFLAKINNRTKTPVIATVTSGAIAAVMAFLFELKDLVDLMSIGTLLAYSLVAACVLVLRYQPEQPNLVYQMARTTEELDRVDQNELVSASESQTGFLPVAEKFSLKSILSPKNVEPSKFSGLIVNISAGLLAALIITVCIVAVLGREALAEGTLWAVFVMTGSVLLCMLVTGIIWRQPESKTKLSFKVPFVPVLPVLSIFVNIYLMMQLDQGTWVRFAVWMLIGFTIYFGYGIWHS

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Surface protein
Molecular weight formula_weight	25411.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

APGSSPHQVYNITWEVTNGDRETVWAISGNHPLWTWWPVLTPDLCMLALSGPPHWGLEYQAPYSSPPGPPCCSGSSGSSAGCSRDCDEPLTSLTPRCNTAWNRLKLDQVTHKSSEGFYVCPGSHRPREAKSCGGPDSFYCASWGCETTGRVYWKPSSSWDYITVDNNLTTSQAVQVCKDNKWCNPLAIQFTNAGKQVTSWTTGHYWGLRLYVSGRDPGLTFGIRLRYQN

来源 Source

来源生物 organism	Friend murine leukemia virus (ISOLATE 57)
NCBI Class编号 ncbi_taxonomy_id	11796
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	L-ornithine
Molecular weight formula_weight	132.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.65 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	106963

fit	/app/data/saxs_computation/ua/9uat/9uat.fit
pddf	/app/data/pr_computation/ua/9uat/9uat.pr.out
profile	/app/data/saxs_computation/ua/9uat/9uat.dat

The structure of mCAT1 in complex with its substrate ornithine and the RBD of FrMLV.
