9uc2

Crystal structure of voltage-gated sodium channel NavAb N49K/S178A mutant

Method: X-RAY DIFFRACTION D_max: 85.3 Å Quality: GOOD

SAXS Profile

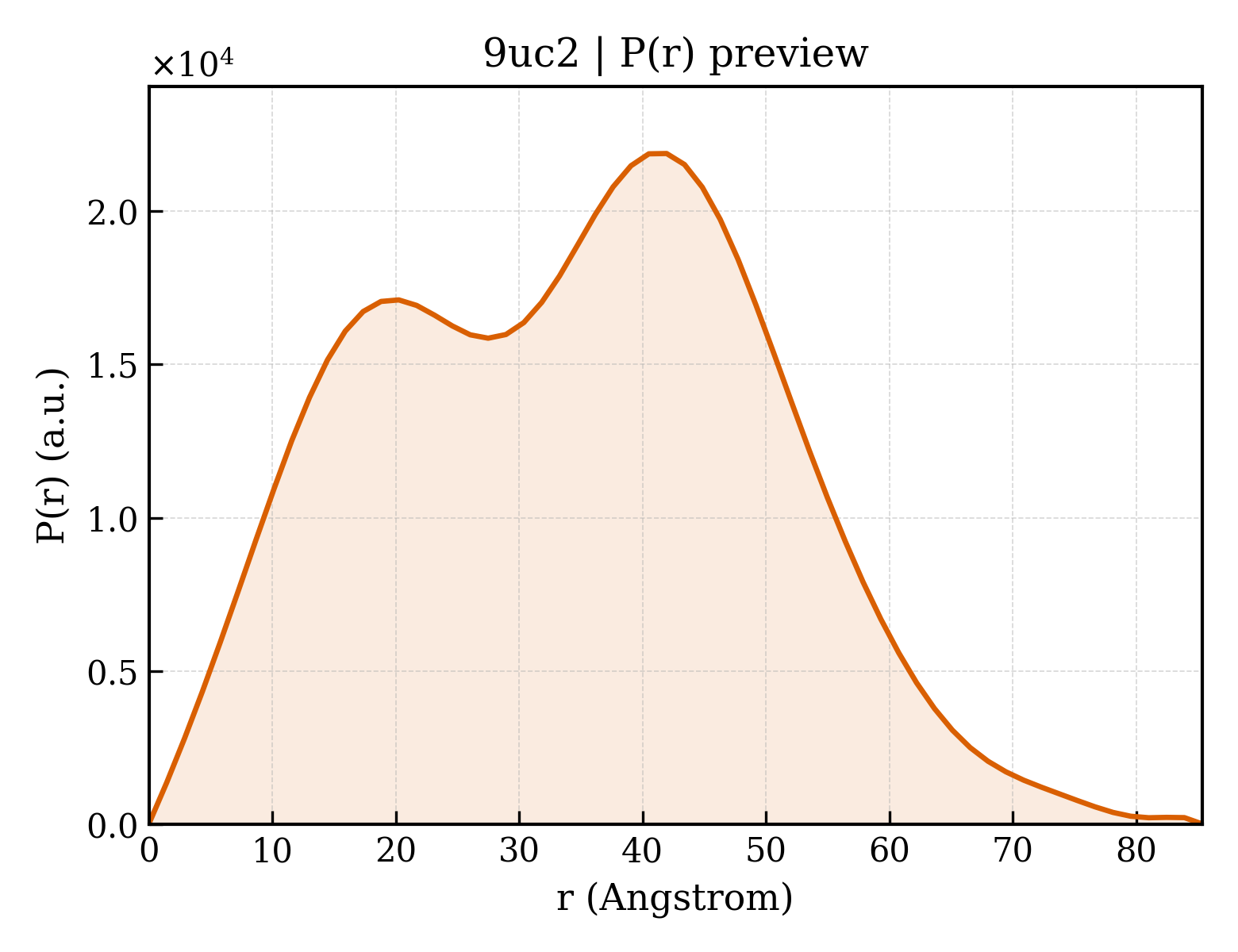

P(r) Distribution

▼

1. Structure Basics

entry_id	9uc2
deposition_date	2025-04-03
title	Crystal structure of voltage-gated sodium channel NavAb N49K/S178A mutant
keywords	ion channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.70 Å
rg_electron	25.30 Å
i0	11402100.00
molecular_weight	33128.0 kDa
excluded_volume	44941 Å³
envelope_volume	59614 Å³
shell_volume	20560 Å³
envelope_diameter	89.2 Å
shell_rg	31.25 Å
envelope_rg	24.51 Å
shape_rg	25.30 Å
total_rg	26.34 Å
total_atoms	2318
n_residues	229
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	85.3 Å
rg_real	26.68 Å
rg_real_error	0.59 Å
i0_real	1.1400e+07
i0_real_error	1.5330e+05
rg_reciprocal	26.69 Å
i0_reciprocal	11400000.0000
total_estimate	0.8631
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	42.0 Å
skewness	0.095
kurtosis	-0.647
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	873900.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.881; Smooth: 0.972

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Ion transport protein
formula_weight	31381.3 kDa
mutation	N49K,S178A
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2346

GSGSMYLRITNIVESSFFTKFIIYLIVLNGITMGLETSKTFMQSFGVYTTLFKQIVITIFTIEIILRIYVHRISFFKDPWSLFDFFVVAISLVPTSSGFEILRVLRVLRLFRLVTAVPQMRKIVSALISVIPGMLSVIALMTLFFYIFAIMATQLFGERFPEWFGTLGESFYTLFQVMTLEAWSMGIVRPLMEVYPYAWVFFIPFIFVVTFVMINLVVAIIVDAMAILNQKEEQHIIDEVQSHEDNINNEIIKLREEIVELKELIKTSLKN

Source

organism	Aliarcobacter butzleri
ncbi_taxonomy_id	28197
host_organism	Escherichia coli

Entity 2 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	CHAPSO
formula_weight	631.9 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	DODECYL-BETA-D-MALTOSIDE
formula_weight	510.6 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
formula_weight	678.9 kDa
src_method	syn
entity_count	8

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	28

▶

6. Citations (1)

▶

length_a	126.590 Å
length_b	126.590 Å
length_c	201.540 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	I 4 2 2
int_tables_number	97
crystal_system	tetragonal

resolution	2.800 Å
resolution_low	44.760 Å
r_factor	0.2574
r_work	0.2557
r_free	0.2945
