9uci
Crystal structure of adenine-sulfotransferase from Bos Taurus

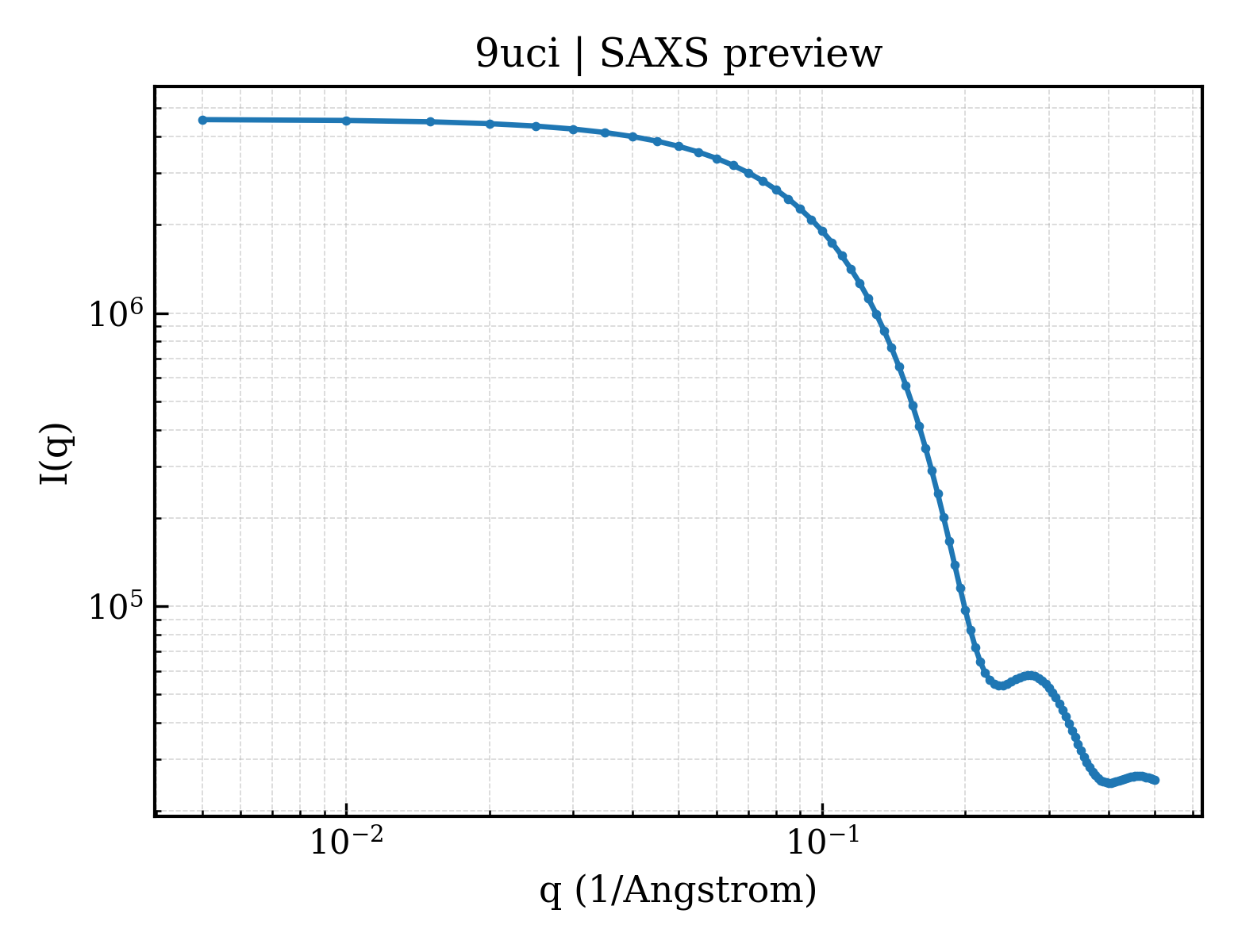

SAXS Profile

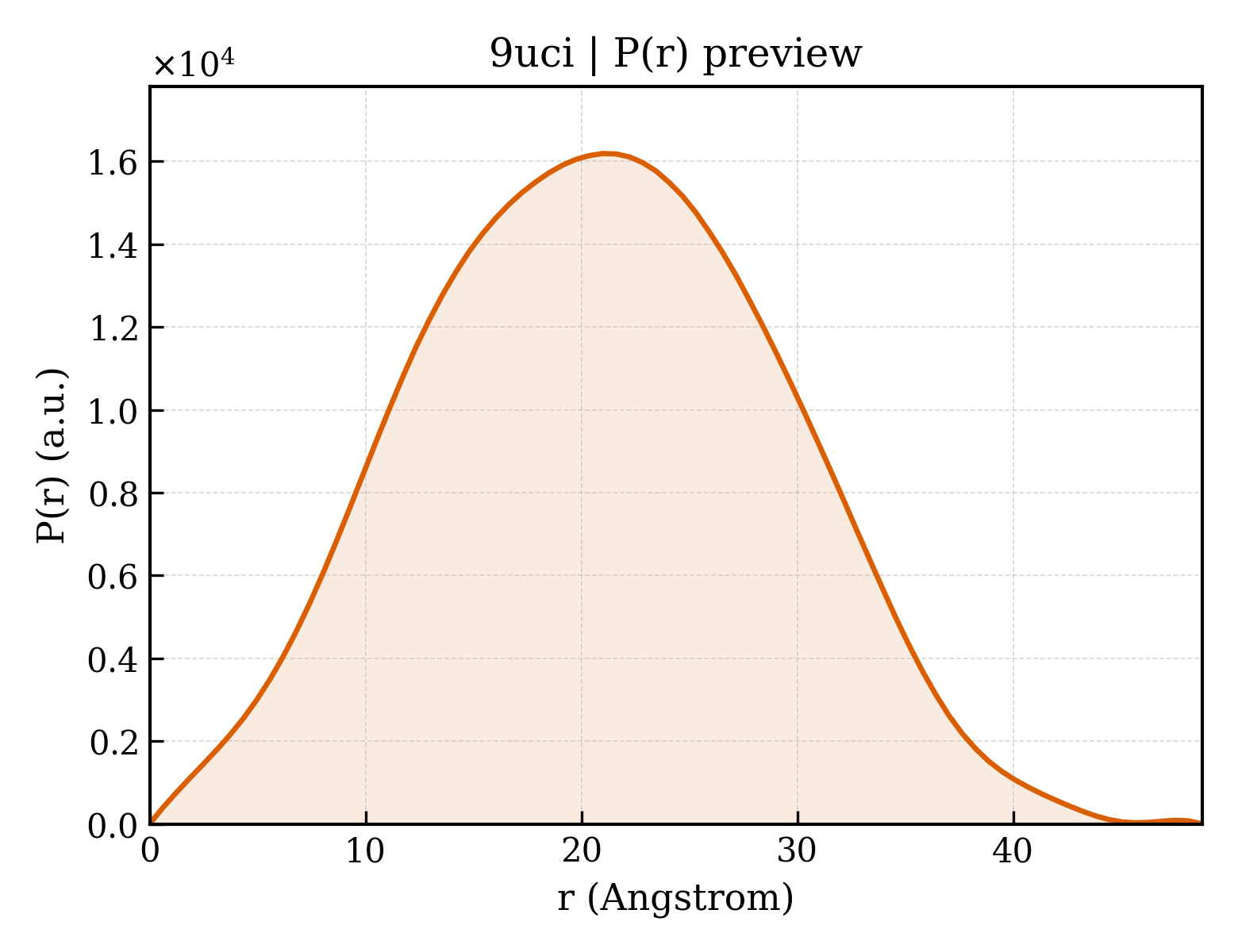

P(r) Distribution
1. Structure Basics
| entry_id | 9uci |
| deposition_date | 2025-04-04 |
| last_revision | 2026-04-15 |
| title | Crystal structure of adenine-sulfotransferase from Bos Taurus |
| keywords | Bos Taurus, adenine-sulfotransferase, TRANSFERASE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.97 Å |
| rg_electron | 14.46 Å |
| i0 | 4580960.00 |
| molecular_weight | 15245.0 kDa |
| excluded_volume | 19168 ų |
| envelope_volume | 22707 ų |
| shell_volume | 13187 ų |
| envelope_diameter | 48.0 Å |
| shell_rg | 20.35 Å |
| envelope_rg | 14.84 Å |
| shape_rg | 14.46 Å |
| total_rg | 15.74 Å |
| total_atoms | 1077 |
| n_residues | 135 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.8 Å |
| rg_real | 15.85 Å |
| rg_real_error | 0.24 Å |
| i0_real | 4.5810e+06 |
| i0_real_error | 4.9010e+04 |
| rg_reciprocal | 15.86 Å |
| i0_reciprocal | 4581000.0000 |
| total_estimate | 0.9038 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 21.0 Å |
| skewness | 0.065 |
| kurtosis | -0.475 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 982200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.923; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.987 |
