9udz
Crystal structure of recombinant mushroom Agaricus bisporus mannose-binding protein with a longer C-terminal region

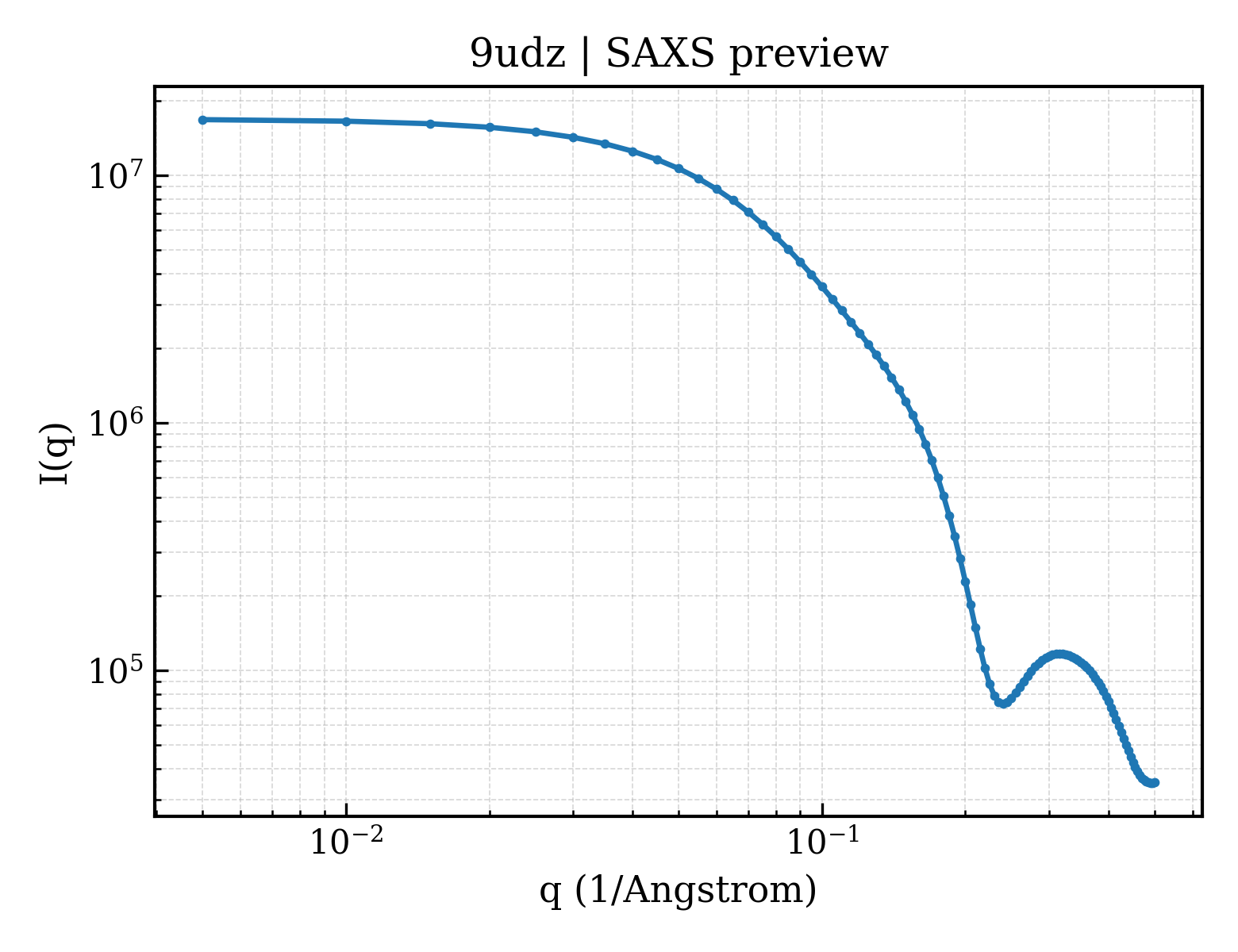

SAXS Profile

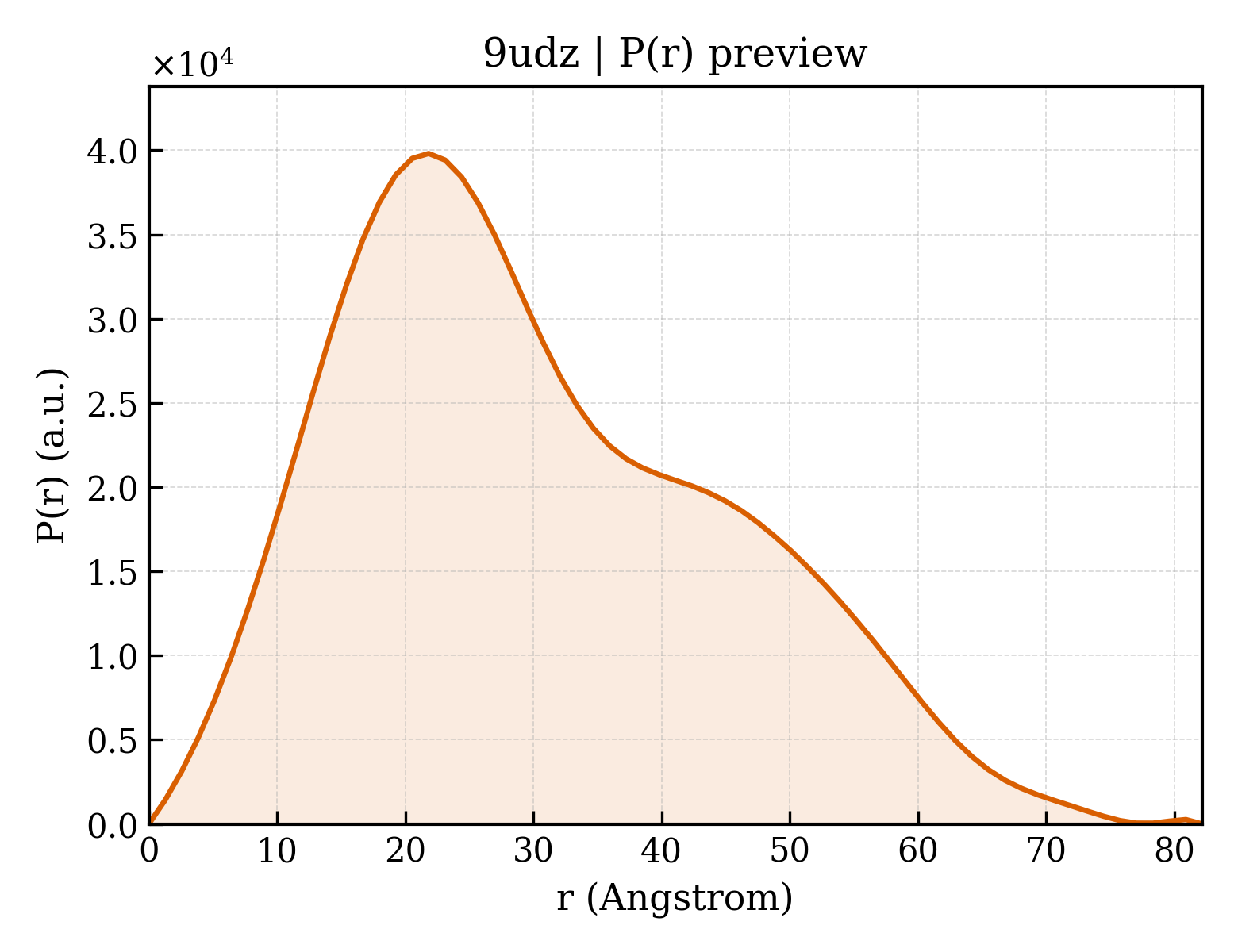

P(r) Distribution
1. Structure Basics
| entry_id | 9udz |
| deposition_date | 2025-04-07 |
| title | Crystal structure of recombinant mushroom Agaricus bisporus mannose-binding protein with a longer C-terminal region |
| keywords | Lectin-like protein, Agaricus bisporus, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.64 Å |
| rg_electron | 23.02 Å |
| i0 | 16857400.00 |
| molecular_weight | 30641.0 kDa |
| excluded_volume | 38091 ų |
| envelope_volume | 47203 ų |
| shell_volume | 18149 ų |
| envelope_diameter | 84.8 Å |
| shell_rg | 28.30 Å |
| envelope_rg | 23.18 Å |
| shape_rg | 23.00 Å |
| total_rg | 23.80 Å |
| total_atoms | 2169 |
| n_residues | 278 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.2 Å |
| rg_real | 23.86 Å |
| rg_real_error | 0.60 Å |
| i0_real | 1.6860e+07 |
| i0_real_error | 2.0710e+05 |
| rg_reciprocal | 23.81 Å |
| i0_reciprocal | 16860000.0000 |
| total_estimate | 0.7931 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.8 Å |
| skewness | 0.499 |
| kurtosis | -0.467 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3770000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.582; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.640; Smooth: 0.920 |
