Cryo-EM structure of the tubular mastigoneme (the central tube) from golden algae 2.17 angstrom resolution

Method: ELECTRON MICROSCOPY D_max: 210.5 Å Quality: GOOD

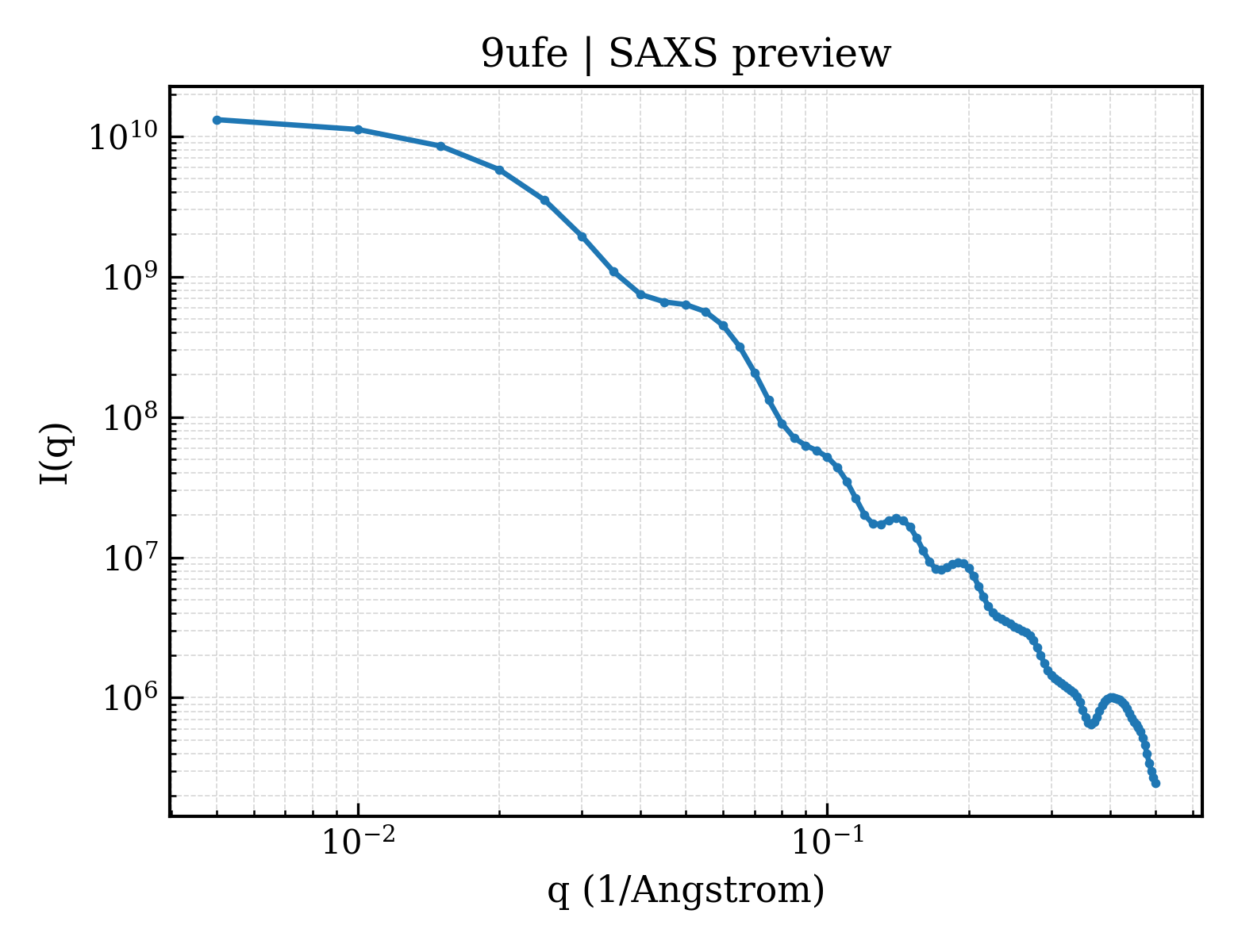

SAXS Profile

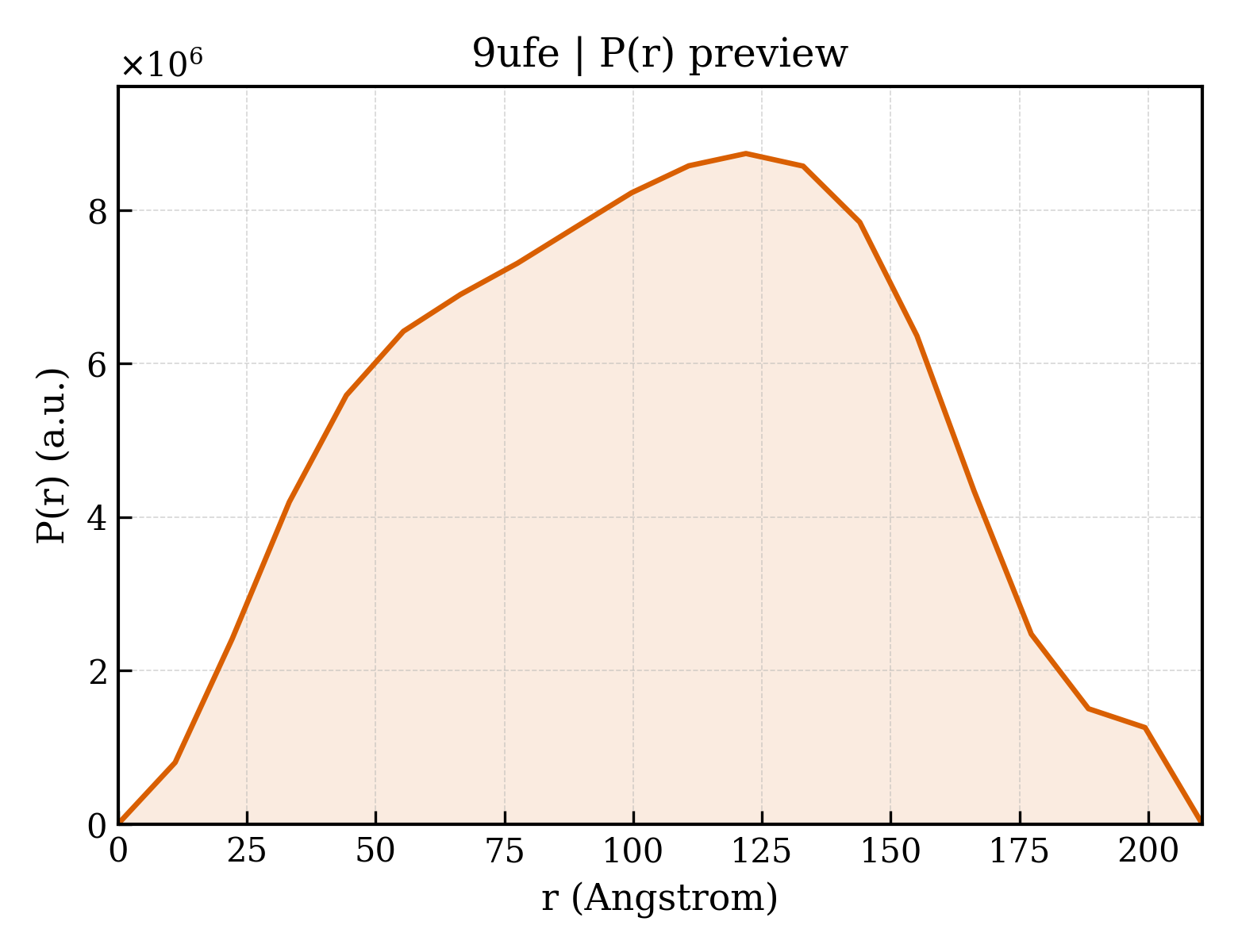

P(r) Distribution

▼

1. Structure Basics

entry_id	9ufe
deposition_date	2025-04-10
title	Cryo-EM structure of the tubular mastigoneme (the central tube) from golden algae 2.17 angstrom resolution
keywords	Cryo-EM, Tubular Mastigoneme, Golden algae, N-Glycans, CARBOHYDRATE; CARBOHYDRATE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	80.13 Å
rg_electron	80.44 Å
i0	13856800000.00
molecular_weight	937280.0 kDa
excluded_volume	1142500 Å³
envelope_volume	1960500 Å³
shell_volume	196010 Å³
envelope_diameter	274.1 Å
shell_rg	89.86 Å
envelope_rg	75.91 Å
shape_rg	80.46 Å
total_rg	80.44 Å
total_atoms	65299
n_residues	7632
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	210.5 Å
rg_real	79.56 Å
rg_real_error	0.80 Å
i0_real	1.3820e+10
i0_real_error	2.5210e+08
rg_reciprocal	80.93 Å
i0_reciprocal	13890000000.0000
total_estimate	0.8458
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	121.9 Å
skewness	-0.020
kurtosis	-0.790
angular_range	— – 0.0950 Å⁻¹
current_alpha	0.0124
highest_alpha	608500000.0000
n_real_points	20
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (25)

Entity 1 polymer

description	OCM5
formula_weight	40219.9 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	EA,EB,EC
atom_count	71986

MFKLLIAFATIFGYAYAGCDNGCSGHGQCTQHGVCQCFDNWGIGLSHLSGDCSERICPYEIAWVDNPDKLGRRHQYAECANRGICNRESGECECFPGYEGKACQRSTCPNDCSGHGRCVYIQDLPFGAVAADYSTGDFSVQDPKTFDYNGWDRSKTRGCYCDPEYGDVDCSKRMCPYGTDVMDQRPDLTKPAKYQVQQIAIQAPTSTFGTSGLGGNTFALTFKSKLNETFTTLPIPLFNGASDFRTFILYVEQALERLPNGVIDNVDVAGSYSASSNVVYLNITFVGDSVQGPQHLLTVRDYLCGDGCTPKLEGVELLPYSNNITQLQKSDFSSYECGRRGKCDYATGICNCFAGYTGATCGTISCLV

Entity 2 polymer

description	OCM6
formula_weight	78780.8 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	FA,FB,FC

MTKTLPVLTLLLLGIAGLINAECPNACSAHGKCGAYDMCTCFRNWMANDCSERICQFGLAHVDSPKGDLDASSGALSNASEIVVVNDFIYRFGTTELYPATTDIAGNVLTNTAHEYRECSNKGLCDRSTGTCSCFEGYEGSACQRASCPSGPNGVCSGHGTCETISEIAAQDFDNIYRLWDEDITMGCVCDSGYSGADCSQRDCPVGTDPLYFDNNATIRYSNFTYQFFSDSSSNVVTGNYSIIFTDVYGEDWNTVPIDIAATCATIQAALETLPNNVIDAGSVRCYKWNAAQSGPIVDGNMFIHARYTLAFPRNPGKLKQIAIDRFLDGSRATLYTNEPVSSLGWHVYPNGFTGEFVDLVPNRCFGVIANLAAGATLEGGVTGDIGTHYLAGLDATEQSLLKTCLGGSDNNTANNVEVYNWDYGSFNNPHLIKLQDATQYTYVYEVNSNGDIIYDPQIQYRPASSLCDSTSPNAARFGDDAYGNPMCWNKQAPGFYAVLVYVSSLANPFRLWTRAATDFGSTTPFYVYTTNGFLNLVSSDAGVYTYRNYYSNWEKVVSHHSNVVHSTNIGTTPGYYGDMSCETHPVGSTYALDCLNKGDLVMTLLQPDGSSATLANNPIYPNVYTTEKIYRARRNNITDVTYNEEERLNIIFDYSLNSAFSNRAPAYVYKFYPDTSSADGGYLHTGACGTRGICNSDTGLCECFSGYGKADCSCNTCNLLSF

Entity 3 polymer

description	Tubular mastigoneme protein
formula_weight	22290.1 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	DA,DB,DC

MLRYILLLAFLLAVAQAACPNGCNGHGSCGANDKCTCYTRIDGEPAWTYADCSGRTCPKSSAWVGDVQNANDAHPVVECSNKGVCDRKTGECKCFANYDGIACERSICPNKCSDAGVCFTQKQLAVDAARTYATPWDAEKEVGCVCDLGRRGPDCSLFECPSGPDVLKGFGSEAGRDCSGRGLCDYSSGICNCFHGYYGTKCEYQTVLG

Entity 4 polymer

description	OCM3
formula_weight	36806.3 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	CA,CB,CC

MKWLFLLSIVLMLSTKMTTVGSAPTEVPTGQPSGQPSGKPSGQPSGKPSGQPSGQPSGQPSGKPSGQPSGSPSGQPSGQPSGQPSGQPSGSPTGQPSGQPSRQPSGQPTARPSTQPSTQPSSSPSGQPTSVPSSAPSYRAESWGQITWDKRRHRQGGLCENHCSNHGTCEYNNNCKCFTGLDGEPEWTGPDCSLRTCPKDFAWVGEVVNANDLHPWAECSNKGVCDRTTGTCNCFAGYDGVACQRTVCPNNCNDRGTCWPEKLLASKAGRTYSEPWDAMKHVGCFCDAGYRGPACDLQECPSGTDPLDGYGNEAGRDCSGRGLCNYQEGTCQCFSGFYGTRCQYQTTIF

Entity 5 polymer

description	Tubular mastigoneme protein
formula_weight	83365.7 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	AA,AB,AC

MKYSFLLSTTLVAALWSLAHSECANACNGHGKCTSYDMCICNRNWQASDCSERVCMFGLAHVDTPKGDLDGSGTLSNANIVVTENSFVYPYGTTEQFPQMQDSDLQTLTNTAHYYMECSNKGRCDRTTGECQCFDGYDGVACQRASCPGYPNSCSGHGVCKTISQLAESDYGNVYKLWDKDATMGCECDKGYTGADCSERLCKYGVDPLYLDDATTAKYSIFDLATLTTKTSSPYFTNGESEAKSAYWAIRFYDNHEEDWVTTPIIAGATCTEVVEALESLPNNVIPANSIDCSVVTFNGNENSFTMTNAYYDAQHPSGSRHPYRIFYRFAMWEALTASDQGELGPTTALQYYHGSNQTSTVSLYGNVYRLKFYSNPGKLKQPSIEVYLDGTRPSLISPGYKVITRVWTDGQQGEDDDYFADHCTGVTATIGVIASSTDYMTQSYLTGFTTTERGLLKKCLGDADFDTTNNVDVYNWDYGSKYYPHMIKLVRTVTSYNDGGYYAVLWYDSNTHWDSIAPEGTFRLLNPFRPPDNFLTDNYDIYTTKGTLALTSVFAEATFGFGSQYIYTVNTTYDQNSTISTVVYDGDISCEVGNNNAYKLDYISHCLNRSDLFTMLNWEFPEFNPPHLNLYSAKRLYTHSPEHYVVDRFAVNSVIARSNNTLHYMTHMITADLSTNWAASVGIDGGGHSSLTNPHFHVYKFFPATESTYEYVAECSNRGICDRDSGVCKCFAGYTSDSCSVQSSLSL

Entity 6 polymer

description	Tubular mastigoneme protein
formula_weight	40980.4 kDa
src_method	nat
entity_count	3

Polymer

type	polypeptide(L)
strand_id	BA,BB,BC

MFQARLLVLALCFAGIMAACDNNCSGHGTCSTDDVCECYDNWGVGLSHDSGDCSDRICPYELAWVDTPDNTGAFHKYAECANRGICNRETGECQCFDGYEGKGCQRSTCPNDCSGHGTCEYIEELAFGETWNDYSKQYFIEDPKTFPYHGWDNRKIRTCVCDPTYGDVDCSKRLCPYGNDVLDIQDNSIITNYQIQQIRIKAINQLQGLRTQTFALTFKSKLNETFTTYPIVFDDSDLNDFVHDVQLALLKLPNRVIDGVSVAANRDYATDYLNLNITFTGNNVQGKQNLLVVESYECSDGCTPKITGIDVQTLYNQKHSNISEVLAADYYSFECGRRGKCDYNTGLCNCFTGYTGDNCNTMTTLT

Entity 7 branched

description	;beta-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)][2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	2362.1 kDa
src_method	man
entity_count	3

Entity 8 branched

description	;alpha-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-D-mannopyranose-(1-2)-beta-D-xylopyranose-(1-6)][beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	2656.4 kDa
src_method	man
entity_count	3

Entity 9 branched

description	;alpha-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-4)]2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)][beta-D-glucopyranose-(1-3)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	2686.4 kDa
src_method	man
entity_count	3

Entity 10 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1559.4 kDa
src_method	man
entity_count	3

Entity 11 branched

description	;beta-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[beta-D-xylopyranose-(1-3)][2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	2464.2 kDa
src_method	man
entity_count	3

Entity 12 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1559.4 kDa
src_method	man
entity_count	3

Entity 13 branched

description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	910.8 kDa
src_method	man
entity_count	3

Entity 14 branched

description	;beta-D-xylopyranose-(1-6)-alpha-D-mannopyranose-(1-3)-[alpha-D-xylopyranose-(1-2)][alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1661.5 kDa
src_method	man
entity_count	3

Entity 15 branched

description	alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-xylopyranose
formula_weight	636.6 kDa
src_method	man
entity_count	3

Entity 16 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-xylopyranose ;
formula_weight	1123.0 kDa
src_method	man
entity_count	3

Entity 17 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1883.7 kDa
src_method	man
entity_count	9

Entity 18 branched

description	;alpha-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[beta-D-glucopyranose-(1-3)][2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	2332.1 kDa
src_method	man
entity_count	3

Entity 19 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1721.5 kDa
src_method	man
entity_count	6

Entity 20 branched

description	;alpha-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[alpha-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	2332.1 kDa
src_method	man
entity_count	3

Entity 21 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	55

Entity 22 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	6

Entity 23 non-polymer

description	PHOSPHONATE
formula_weight	80.0 kDa
src_method	syn
entity_count	21

Entity 24 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	3

Entity 25 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	6687

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.17 Å
resolution_method	—
num_particles	104125

fit	/app/data/saxs_computation/uf/9ufe/9ufe.fit
pddf	/app/data/pr_computation/uf/9ufe/9ufe.pr.out
profile	/app/data/saxs_computation/uf/9ufe/9ufe.dat
