9ugh
crystal structure of ferritin from pig spleen
SAXS Profile

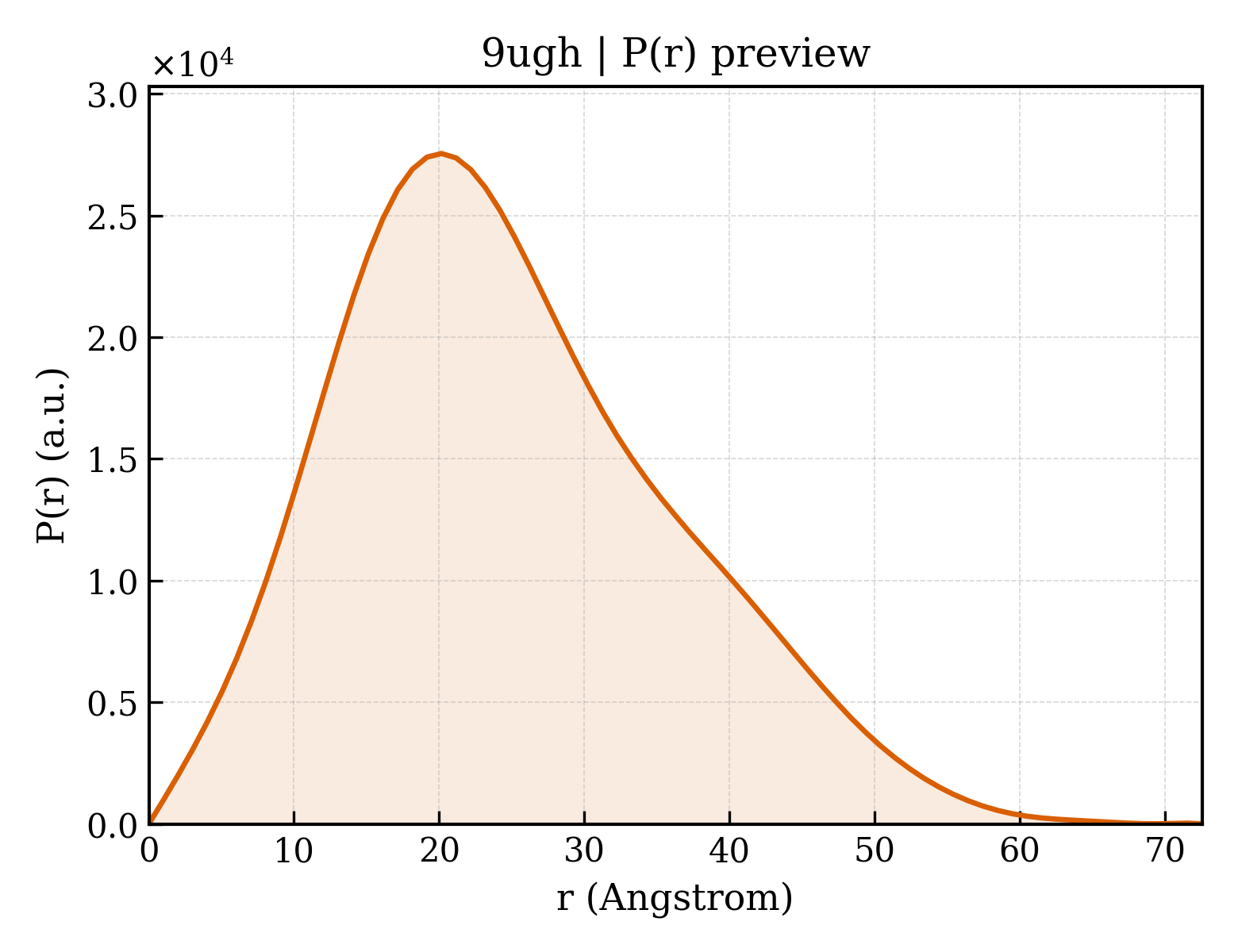

P(r) Distribution
1. Structure Basics
| entry_id | 9ugh |
| deposition_date | 2025-04-12 |
| last_revision | 2026-04-15 |
| title | crystal structure of ferritin from pig spleen |
| keywords | Iron Storage, Ferritin, Pig, L-Chain, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.17 Å |
| rg_electron | 18.37 Å |
| i0 | 9326880.00 |
| molecular_weight | 20759.0 kDa |
| excluded_volume | 25028 ų |
| envelope_volume | 29404 ų |
| shell_volume | 14433 ų |
| envelope_diameter | 71.4 Å |
| shell_rg | 23.10 Å |
| envelope_rg | 18.76 Å |
| shape_rg | 18.35 Å |
| total_rg | 19.13 Å |
| total_atoms | 1402 |
| n_residues | 171 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 72.6 Å |
| rg_real | 19.27 Å |
| rg_real_error | 0.57 Å |
| i0_real | 9.3270e+06 |
| i0_real_error | 1.2960e+05 |
| rg_reciprocal | 19.26 Å |
| i0_reciprocal | 9327000.0000 |
| total_estimate | 0.7891 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.2 Å |
| skewness | 0.498 |
| kurtosis | -0.153 |
| angular_range | — – 0.4150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1554000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.524; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.686; Smooth: 0.997 |
