9ujo
Solution structure of MeV Vc 221-299

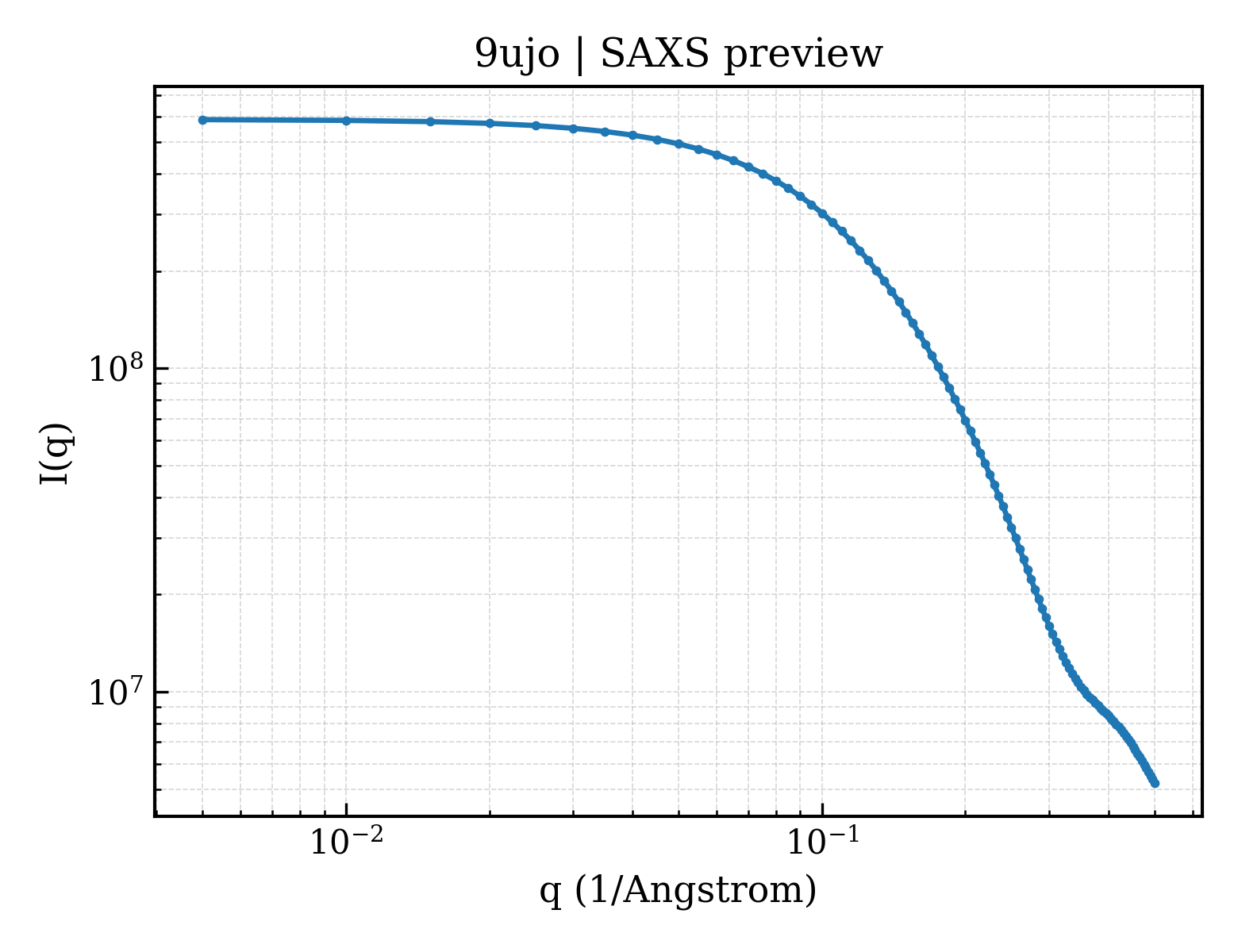

SAXS Profile

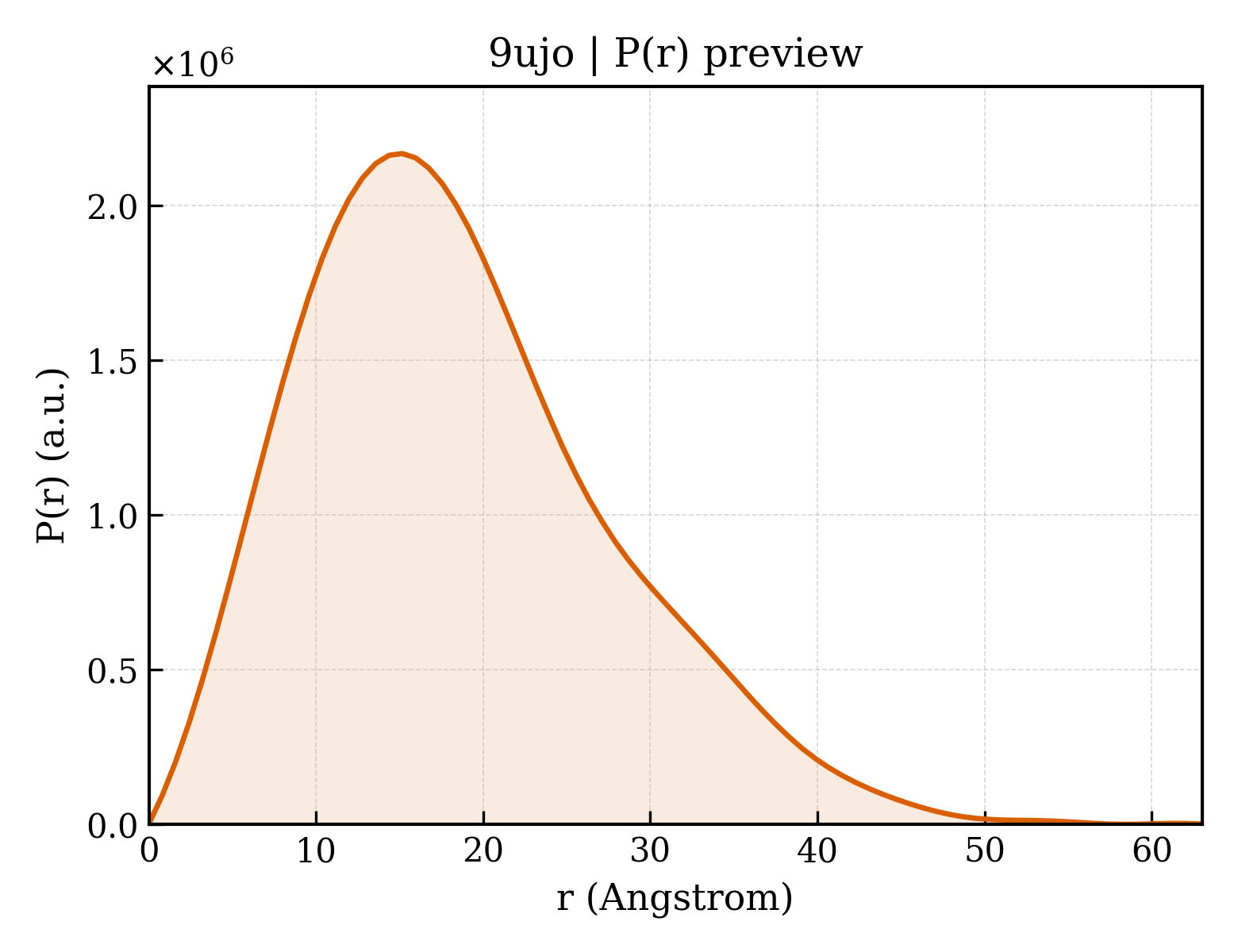

P(r) Distribution
1. Structure Basics
| entry_id | 9ujo |
| deposition_date | 2025-04-17 |
| last_revision | 2025-09-03 |
| title | Solution structure of MeV Vc 221-299 |
| keywords | STAT transcription factors, immune evasion, innate immunity, measles, paramyxovirus, VIRUS; VIRUS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.39 Å |
| rg_electron | 14.74 Å |
| i0 | 588508000.00 |
| molecular_weight | 186970.0 kDa |
| excluded_volume | 226910 ų |
| envelope_volume | 41483 ų |
| shell_volume | 18240 ų |
| envelope_diameter | 72.2 Å |
| shell_rg | 25.61 Å |
| envelope_rg | 20.17 Å |
| shape_rg | 14.85 Å |
| total_rg | 14.69 Å |
| total_atoms | 25300 |
| n_residues | 1620 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.0 Å |
| rg_real | 14.56 Å |
| rg_real_error | 0.73 Å |
| i0_real | 5.8850e+08 |
| i0_real_error | 8.2200e+06 |
| rg_reciprocal | 14.55 Å |
| i0_reciprocal | 588500000.0000 |
| total_estimate | 0.6896 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 15.2 Å |
| skewness | 0.635 |
| kurtosis | 0.142 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 224300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.292; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.085; Smooth: 0.998 |
