9ulp

Crystal structure of FtsB from Streptococcus pyogenes in complex with Nb1 nanobody

Method: X-RAY DIFFRACTION D_max: 115.5 Å Quality: GOOD

SAXS Profile

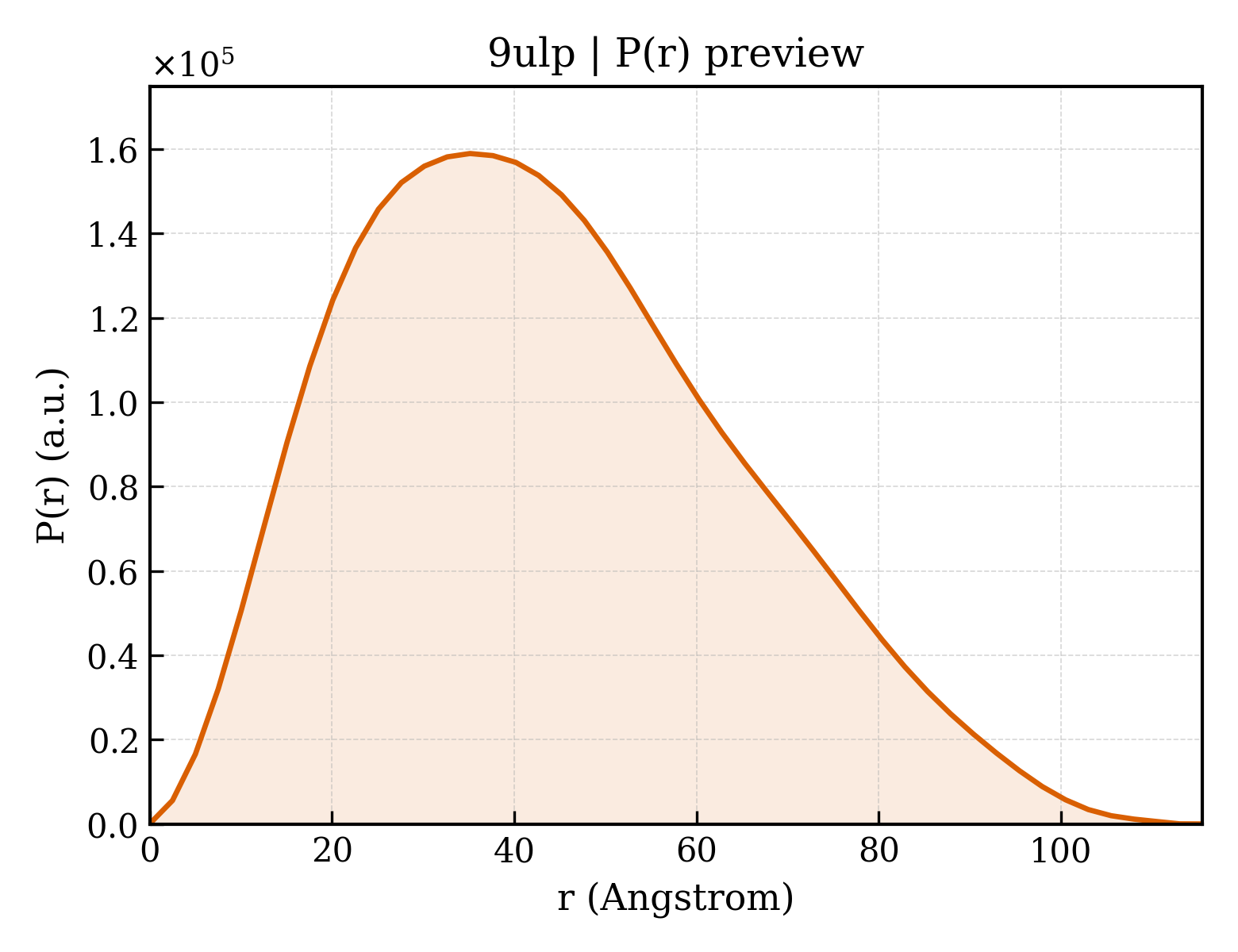

P(r) Distribution

▼

1. Structure Basics

entry_id	9ulp
deposition_date	2025-04-20
last_revision	2026-03-25
title	Crystal structure of FtsB from Streptococcus pyogenes in complex with Nb1 nanobody
keywords	VHH, FtsB, iron acquisition, siderophore, anti-bacterial strategy, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.08 Å
rg_electron	34.16 Å
i0	109545000.00
molecular_weight	87026.0 kDa
excluded_volume	110310 Å³
envelope_volume	141260 Å³
shell_volume	35518 Å³
envelope_diameter	118.5 Å
shell_rg	39.67 Å
envelope_rg	33.46 Å
shape_rg	34.11 Å
total_rg	34.73 Å
total_atoms	6146
n_residues	784
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	115.5 Å
rg_real	34.22 Å
rg_real_error	0.88 Å
i0_real	1.0950e+08
i0_real_error	1.6370e+06
rg_reciprocal	34.14 Å
i0_reciprocal	109500000.0000
total_estimate	0.8728
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	35.2 Å
skewness	0.422
kurtosis	-0.422
angular_range	— – 0.2300 Å⁻¹
current_alpha	0.0000
highest_alpha	22430000.0000
n_real_points	47
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.919; Smooth: 0.857

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Iron-hydroxamate ABC transporter substrate-binding protein
formula_weight	31849.5 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6236

SNTASKSLSPMPQIAGVTYYGDIPKQPKRVVSLASTYTGYLKKLDMNLVGVTSYDKKNPILAKTVKKAKQVAATDLEAITTLKPDLIVVGSTEENIKQLAEIAPVISIEYRKRDYLQVLSDFGRIFNKEGKAKKWLKDWKTKTAAYEKEVKAVTGDKATFTIMGLYEKDVYLFGKDWGRGGEIIHQAFHYDAPEKVKTEVFKQGYLSLSQEVLPDYIGDYVVIAAEDDKTGSALYESKLWQSIPAVKKHHVIKVNANVFYFTDPLSLEYQLETLREAILSSEN

Source

organism	Streptococcus pyogenes
ncbi_taxonomy_id	1314
host_organism	Escherichia coli

Entity 2 polymer

description	VHH
formula_weight	13512.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,D

QVQLVESGGGLVQPGGSLRLSCAASRSIIGINVAGWYRQAPGKQRELVAVITTGGSTNYADSAKGRFTISRDNAQNTLYLQMNSLKPSDTAVYYCNVRGHPPLTYDYWGQGTRVTVSSHHHHHH

Source

organism	Vicugna pacos
ncbi_taxonomy_id	30538
host_organism	Escherichia coli

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	81

▶

6. Citations (1)

▶

length_a	38.364 Å
length_b	60.464 Å
length_c	318.084 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.550 Å
resolution_low	48.180 Å
r_factor	0.2557
r_work	0.2531
r_free	0.3066

fit	/app/data/saxs_computation/ul/9ulp/9ulp.fit
pddf	/app/data/pr_computation/ul/9ulp/9ulp.pr.out
profile	/app/data/saxs_computation/ul/9ulp/9ulp.dat
