SAXSdb — 9uoa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Reverse transcriptase/RNaseH

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MANGANESE (II) ION × 2 ZINC ION × 1 ~{N}-[4-[4-[3,4,5-tris(oxidanyl)phenyl]carbonylpiperazin-1-yl]sulfonylphenyl]ethanamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q72547_HV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–86； UniProt 427–506 Author chain A； PDBConstruct 107–151； UniProt 517–561

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9uoa
Deposition date deposition_date	2025-04-25
Structure title title	Crystal structure of HIV-1 Reverse Transcriptase RNase H domain complexed with a galloyl inhibitor
Keywords keywords	Inhibitor, Complex, RNase, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9uoa__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

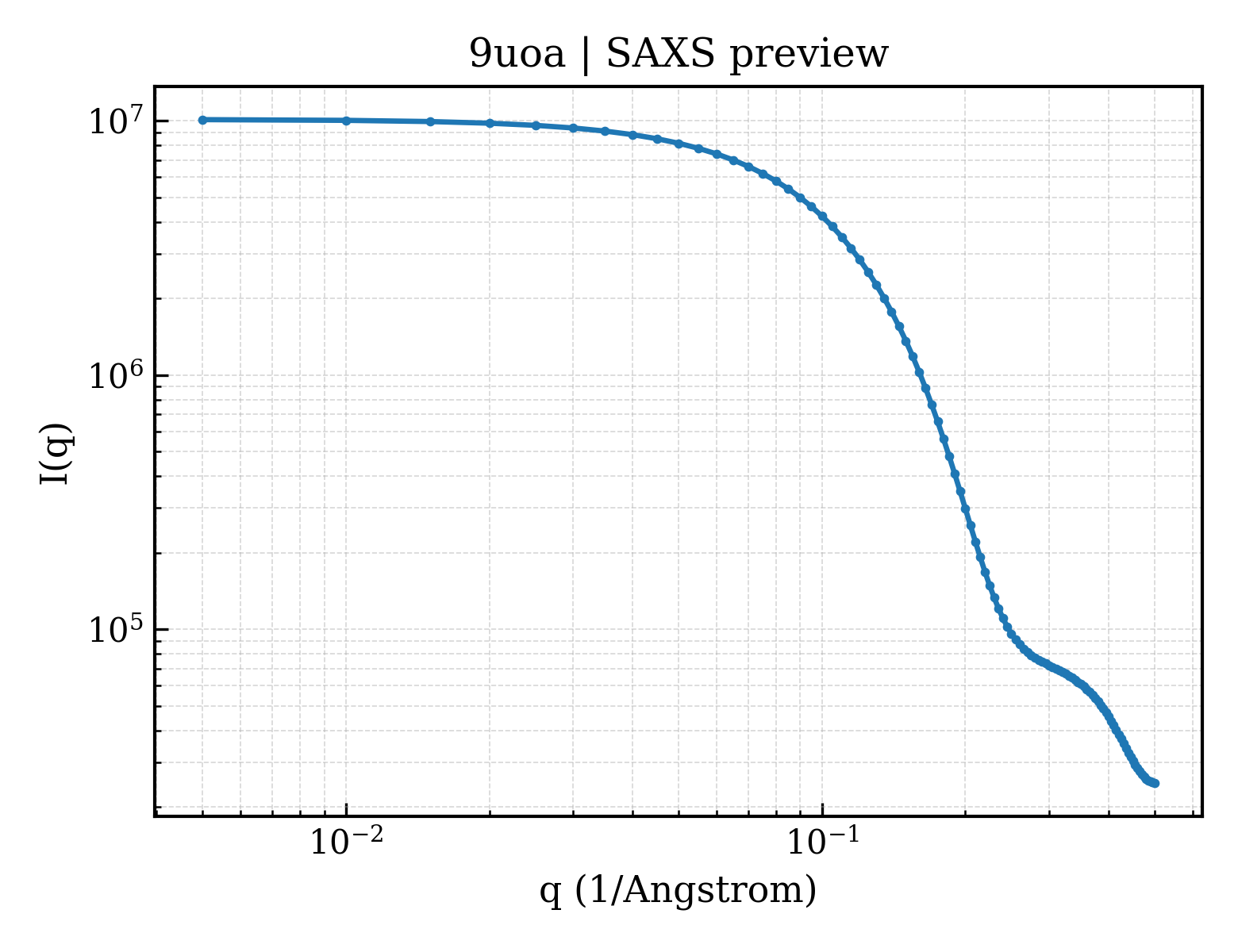

9uoa__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

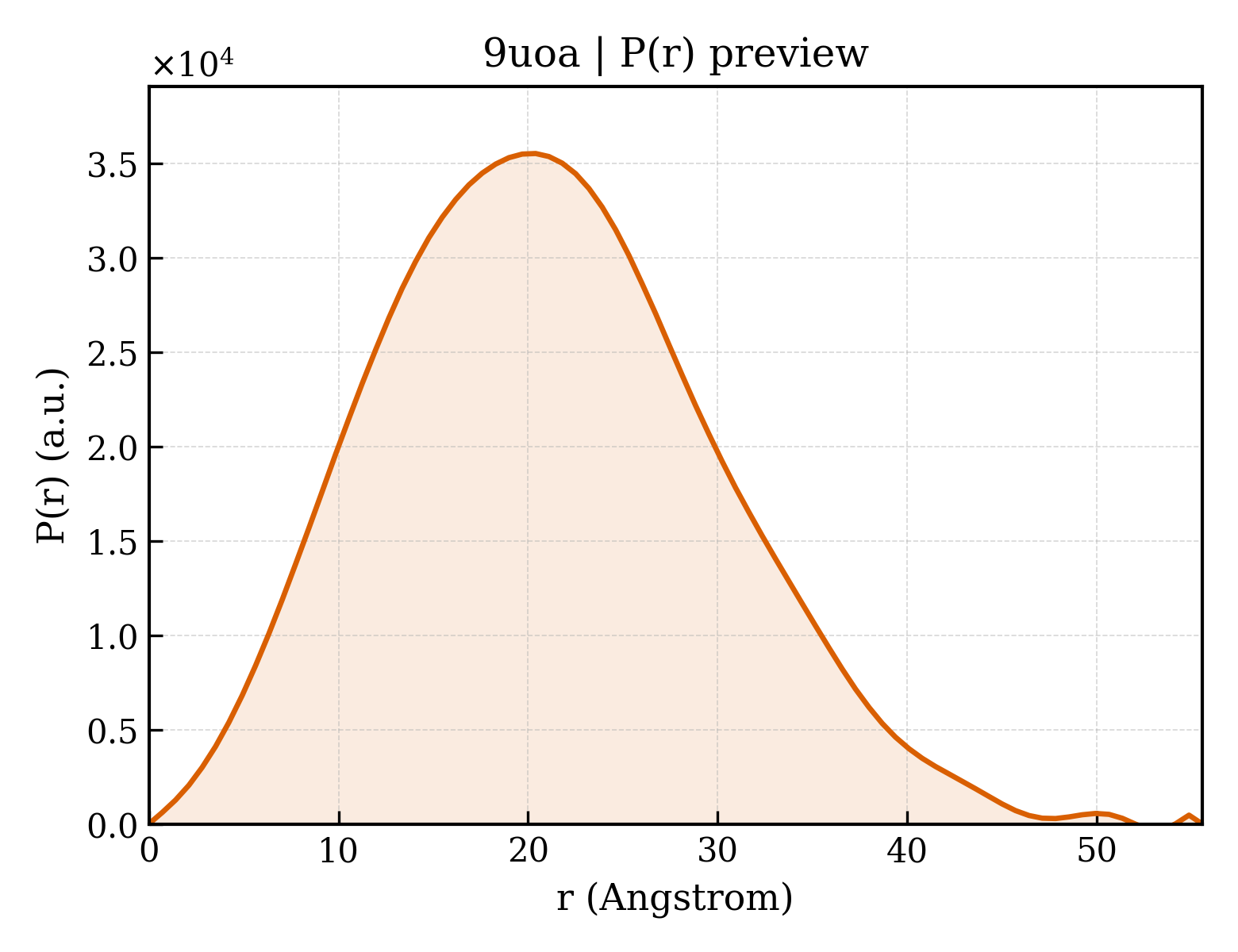

9uoa__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.27 Å
Rg (electron density)	15.15 Å
Total Rg	16.42 Å
Atom count	1186
Residues	146
Excluded volume	21215 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9uoa__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Reverse transcriptase/RNaseH
Molecular weight formula_weight	16832.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1225

GPGGSMYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNRGRQKVVTLTDTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIITQWIHNWKKRGWKTPVKNVDLVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSAGIRKVLF

Source Source

Source organism organism	Human immunodeficiency virus 1
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	~{N}-[4-[4-[3,4,5-tris(oxidanyl)phenyl]carbonylpiperazin-1-yl]sulfonylphenyl]ethanamide
Molecular weight formula_weight	435.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▶

Unit-cell length a length_a	61.255 Å
Unit-cell length b length_b	61.255 Å
Unit-cell length c length_c	83.122 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.960 Å
Low-resolution limit resolution_low	43.310 Å
R factor r_factor	0.2537
R_work r_work	0.2505
R_free r_free	0.2816
