SAXSdb — 9uob

▼

1. Structure Basics

entry_id	9uob
deposition_date	2025-04-25
last_revision	2025-12-10
title	Plant-TaNNS
keywords	Complex, Immunity, PLANT PROTEIN; PLANT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.32 Å
rg_electron	32.75 Å
i0	105672000.00
molecular_weight	81741.0 kDa
excluded_volume	102470 Å³
envelope_volume	135870 Å³
shell_volume	35561 Å³
envelope_diameter	115.8 Å
shell_rg	38.33 Å
envelope_rg	32.45 Å
shape_rg	32.74 Å
total_rg	33.25 Å
total_atoms	5751
n_residues	771
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

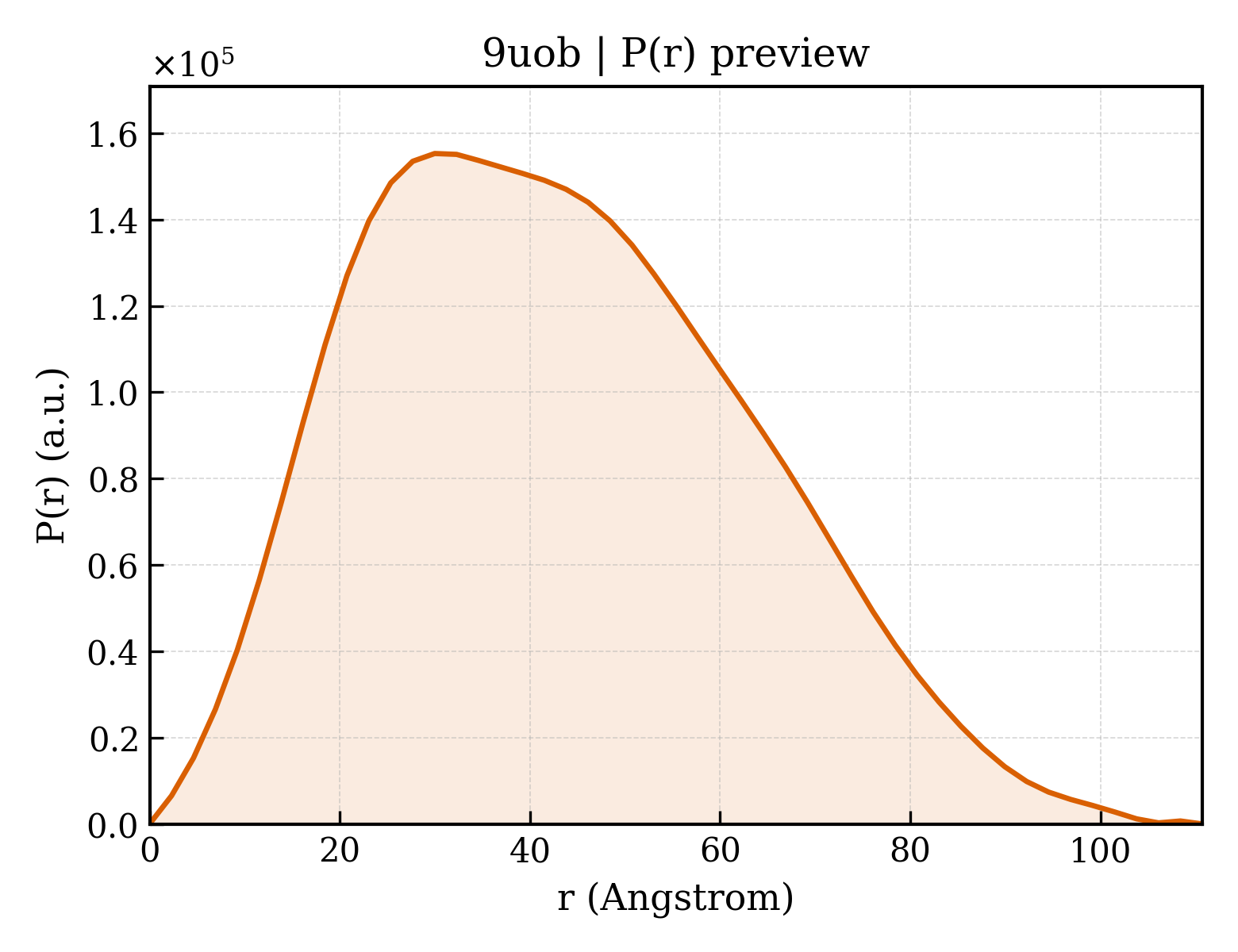

3. P(r) Analysis (GNOM)

dmax	110.7 Å
rg_real	33.42 Å
rg_real_error	0.95 Å
i0_real	1.0570e+08
i0_real_error	1.7940e+06
rg_reciprocal	33.38 Å
i0_reciprocal	105700000.0000
total_estimate	0.6758
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	30.0 Å
skewness	0.353
kurtosis	-0.476
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	37570000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 0.145; Positv: 1.000; Valcen: 0.921; Smooth: 0.778

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Protein kinase domain-containing protein
formula_weight	61336.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5751

QAADDRQLLIRIKRVWRDPPVLAAWNGSGDHCTWPYVTCDASGRVTSLSLANTGVAGPFPDAIGGLSGLTSLDLSGNYLDGELPADIGRALGKNLTSLMLNGNYFNGTIPTSLSRLKNLQSLALDNNFLAGTIPAELGDLTGLQMLTLANNSFSVGVLPASFKNLTQLKTFWAAICNLTGDFPSYVAEMRELEVLDLSVNALTGSIPPAIWNLAKLQTMALFANNFTGGVVVADGAFSAVNLVMIDLSSNHRLSGPIPEAFGHLPNLETLNLYFNNFSGEIPASIGRLPSLVTLSLFRNRLTGRLPPDLGKNSSAGLMYIDVDDNEISGAIPEGLCANGKFQSLIARNNRLNGSIPAGLASCATLNNLMLGNNQLSGEVPEALWTVPQLEYVLLRNNRLSGSLPVKMFINLSTLHIENNQFGGNIPAAAVGLREFIAGNNNFSGEMPASLGKGMPLLQAMNLSGNQLFGGIPSSVAKLRLLTQLDLSRNQLAGEIPAELGAMRVLSALDLSSNKLSGYIPPPLAGLPLTFLNLSSNQLDGQVPAGLATAAYDRSFLGNPGLCHAGLGPRYLTGVRSCAAGS

Source

organism	Triticum aestivum
common_name	bread wheat
ncbi_taxonomy_id	4565
host_organism	Trichoplusia ni

Entity 2 polymer

description	Somatic embryogenesis receptor kinase 1
formula_weight	20076.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

NTEGDALYSLRQSLKDANNVLQSWDPTLVNPCTWFHVTCNTDNSVIRVDLGNAQLSGALVSQLGQLKNLQYLELYSNNISGTIPLELGNLTNLVSLDLYLNKFTGGIPDTLGKLLKLRFLRLNNNSLSGQIPQSLTNISTLQVLDLSNNNLSGAVPSTGSFSLFTPISFGNNPNLCGPGTTKPCPGA

Source

organism	Triticum aestivum
common_name	bread wheat
ncbi_taxonomy_id	4565
host_organism	Trichoplusia ni

Entity 3 polymer

description	TaNNS-C
formula_weight	2530.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

PRGGGSAGAPNGCTNNPKHPPGGKCHG

Source

organism	Triticum aestivum
common_name	bread wheat
ncbi_taxonomy_id	4565
host_organism	Trichoplusia ni

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.330 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.33 Å
resolution_method	—
num_particles	57705

fit	/app/data/saxs_computation/uo/9uob/9uob.fit
pddf	/app/data/pr_computation/uo/9uob/9uob.pr.out
profile	/app/data/saxs_computation/uo/9uob/9uob.dat
