SAXSdb — 9uoy

▼

1. Structure Basics

entry_id	9uoy
deposition_date	2025-04-27
title	Structure of C. elegans piezo channel
keywords	mechanosensitive channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	69.06 Å
rg_electron	69.17 Å
i0	4999750000.00
molecular_weight	660590.0 kDa
excluded_volume	850970 Å³
envelope_volume	1592000 Å³
shell_volume	188760 Å³
envelope_diameter	199.5 Å
shell_rg	74.38 Å
envelope_rg	64.82 Å
shape_rg	69.22 Å
total_rg	69.09 Å
total_atoms	46695
n_residues	5757
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	188.3 Å
rg_real	68.80 Å
rg_real_error	0.87 Å
i0_real	5.0000e+09
i0_real_error	8.4470e+07
rg_reciprocal	69.89 Å
i0_reciprocal	5010000000.0000
total_estimate	0.8256
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	90.0 Å
skewness	0.081
kurtosis	-0.411
angular_range	— – 0.1150 Å⁻¹
current_alpha	0.0000
highest_alpha	433700000.0000
n_real_points	24
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Piezo-type mechanosensitive ion channel component 1
formula_weight	277068.0 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	46695

MTVPPLLKSCVVKLLLPAALLAAAIIRPSFLSIGYVLLALVSAVLPPIRKSLALPKLVGTFVIITFLFCLAVALGVGSYQISEQVVHKNDRTYICNRSDTTLFRSIGLVRFHPTGTFESTRAFLPEIIATSAALLTIIIVMFLSHRDEQLDVVGDVVTVRSESGREQRRQRKLAAIMWSAIGNSLRRLTNFVLFLFTAYVGIVKPSLSNSIYFLAFLFISTWWSTYTPLRHGVYNQIKKFLIFYSALHFLVLYTYQIPIVHHSWLPTGSFLPRLFGLTVLMDSSCPEWWKFPFVAPDFNDDDLIMKWPLYANPIVVLVFFYLTVAQYKFTRNGSREYIDDNEYGSSVHEERFVSAGTVETNVDDVGQLISISESTASAPSGRGRGNTLLLSNASSSANDDEQGRARSRSPLRNGEEQGSIPLRKVTSQVVDRNKLSNIFNTTAPGDKESAASKGMIAVMTFVIFHSYSIALTAMMTWALLYHSIFGLILLILTCILWIFRDTRKSSFAMAPIILMYIEFLLILQYFLSMDIHAEIGDPAWMNFVGIEWTTLPVHAVIILCVQTLLTLPVFLLLRLARREKFYESLSDYERQRRINSYGTFGASKTGAGGVAVAKFQDPKSRKFAAFVEYLSNKVSVYFIFVVSVVLLVVSTCFAPNFYNILFFALWALNLIYLKFSFRLYRGLAYAFWLTLTFYTSIVIIALYIYQFPGVSQWIIRNTSLSQEWLNAIGLVDFRAIGESGALFLQLLAPIALFVVTMLQLKFFHGPWSRATSPRRAENDPPTSTTEAAAVASTSGTQGRAHAAGDTLVKKLHKLANQTIELLWRFFEVHISKIVFVIIAIFIANNINALYIPLVILLSLAICLPSAADGIFSLFMCAYLFLVALSKMIYQLDIVPELSQIDRGVGADNCSHGNISMPEWFGLKKEVEGTEPIYMLFGVIVSIIALAFQSIVIYRQRHYRASLGLPESMRAKVFPDFHHSHFDRSLKNAIQFLIDYGFYKFGLEITMIAIGIDIFNRMDALAAIQCFWLVLFALNKRVFVRRIWVFYVIYMAILYPLQFFSYVGLPPDSCIEYPWSYWIPSYSDDARFNLSYLLNLSIYGVNWPSAYLIGDFFVLLLASCQLAVFRREGEDNDSIYNDGNFVIKPENPQYDFIDTKKSYVDYFKSFVFHYGHWITLMSTLAAGIAGTSLFALGYIIFTLTMLWSGNNLYVMNSTLRSFEHTLKRWNALLGYTLFTITMKVCLQIFGCVFLSWFDQSGGWGKTLCIVRQLFSITCVNNECHVLKELEDFSKACAVETKEGNIGFDVIALSFLVFQIRIFHSWYFQHCMVEYRSEVILANRGAVLKNQLIEKEMKEQNEQQKAKFNDIRRRTEAIRERYQKQIERGAAERDFEPVTYGHAKRAGDYYMFKYDPENDDLVEPVDSFVPEVDPKATAYDRLDPGQIMYAATAHDLDLAKTVQQVKKGDTIKDPDSRALIAVSEPEARKPGGTEETDGDEDEDNKDSKVESTAKFIQKMIASALDLCSVTLNKLCREHRYVGFVLSKEKQKLKSGHSESLSNTSRKLTDIRSAVDLPSLQLVQSANDVEKMETAVSVDWQQKSSATRLLNAVVNCIGAHTDILCYFFAIMTQVMTGGLITLPLPLMSLFWGNLSNPRPSKFFWVTMITYTECVIVIKFVCQFAFMPYNSITWRTEHQMDPMSLDKLFGVSQRDSFALWDIVLLFSLFFHRYMLRKLGLWKDANLTDTFTLKEEPRSASGSDTGSPKKIAQEPKVVVTQSDTLEGTSGGEIVIPSDPNAVSNMEELDCEPPIPEKQSGPIGRFIHQLFHPKFRYIRDLYPIMFGIDVICFLIMTFGYSAFGEGGSGNVLDDVKASRIPVTLVVMLVGMTLAIIIDRALYLRKSVVGKLIYQVLMIAFLHIWVFLVLPNMTRRSAISNHVAQALYVIKSCYFLVSAWQIRNGYPELCIGNLLTHSYGMTNMIAFKVFMNIPFLFELRTAIDWTWTDTSMPLFDFFNMENFYAHIFNIKCARQFEAAYPAPRGIPKGKLVKYMMGFPIIIGVVIFIFSPLLLWSLLNQIGTISMPEKVTLRISIEGYPPLYEMEAQGSNHDNAELGMIKPDQLASLNQALTDSYTTRDTNSILRSRMSVSYLKGYTYEDILIVRFRPESEIYWPISQDSRNAMIDKLSRNTSVNFEVSLEFTRPYDPNENAALKHSKSWLVPISLDMTIRAKIQSALRGDPGHPILIPQSIPAFIQVPNQGELTLPTSIGNTIINDGNPRINTTGMEKSDEARAWFDSLTLNLEQGKSQNEKMWIATSEHPGDQNAKLWIKTANTTYSGRPYLQVVGFIDRAFPSFLAKVFKGGVIAVYLSVILVVGRGLVRGIFTTSPSTVMFTELPNADHLLKICLDIYLVREAKDFMLEQDLFAKLIFLFRSPATLIEWTRMSKKKQE

Source

organism	Caenorhabditis elegans
ncbi_taxonomy_id	6239
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.40 Å
resolution_method	—
num_particles	163221

fit	/app/data/saxs_computation/uo/9uoy/9uoy.fit
pddf	/app/data/pr_computation/uo/9uoy/9uoy.pr.out
profile	/app/data/saxs_computation/uo/9uoy/9uoy.dat

Structure of C. elegans piezo channel

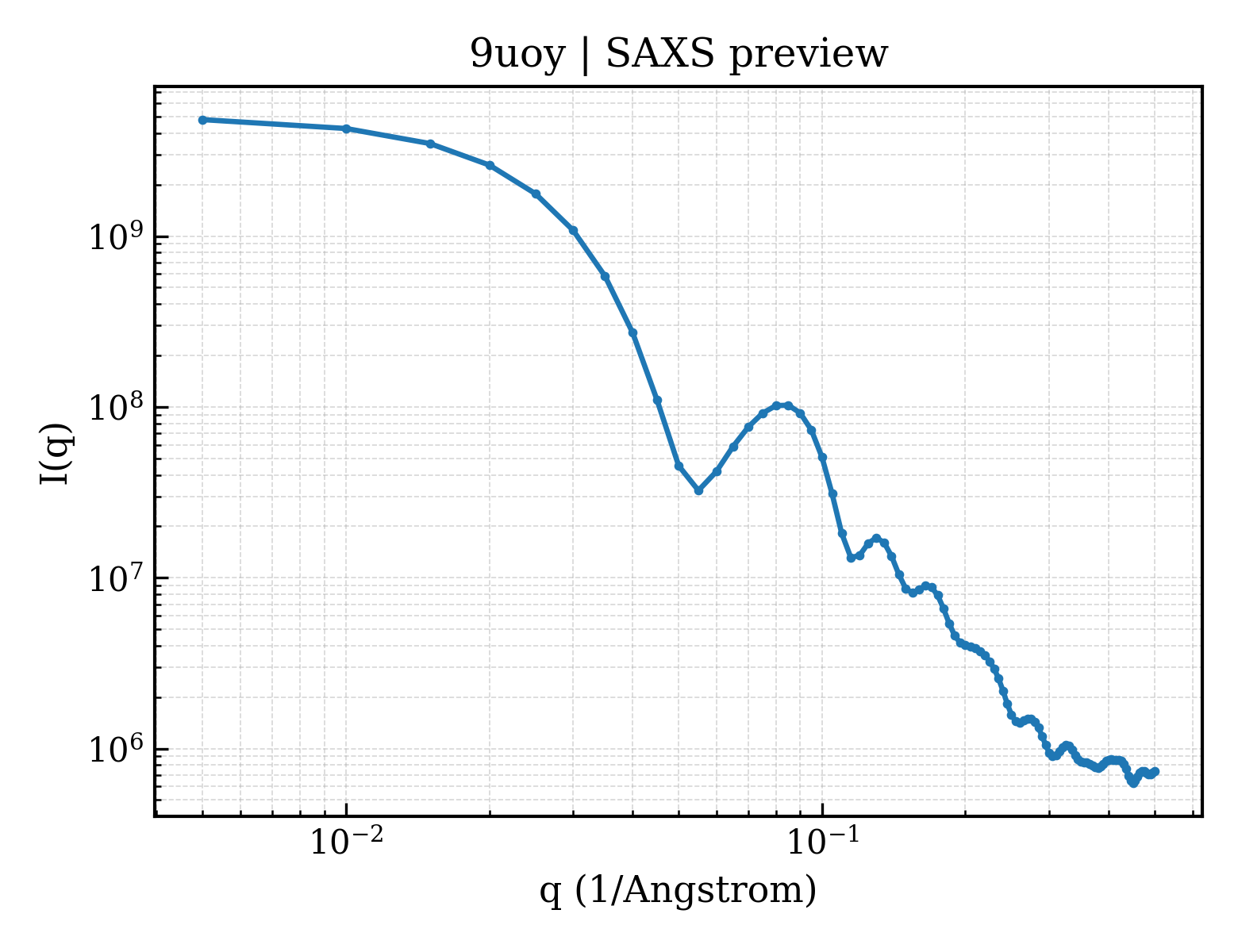

SAXS Profile

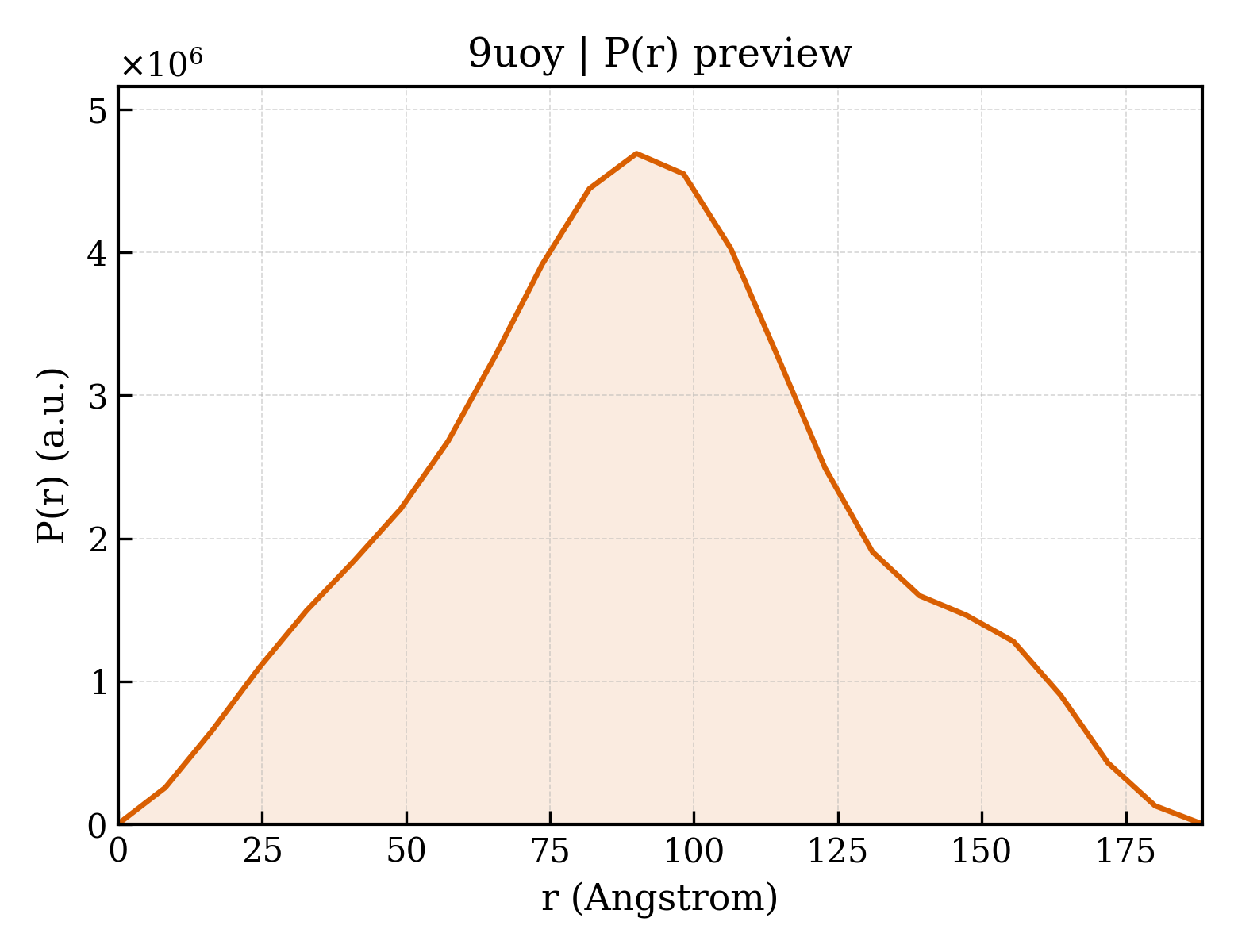

P(r) Distribution
