9urk

Crystal structure of Imine Reductase Mutant(AHtanRedAm) from Actinoalloteichus hymeniacidonis in complex with NADPH

Method: X-RAY DIFFRACTION D_max: 96.0 Å Quality: GOOD

SAXS Profile

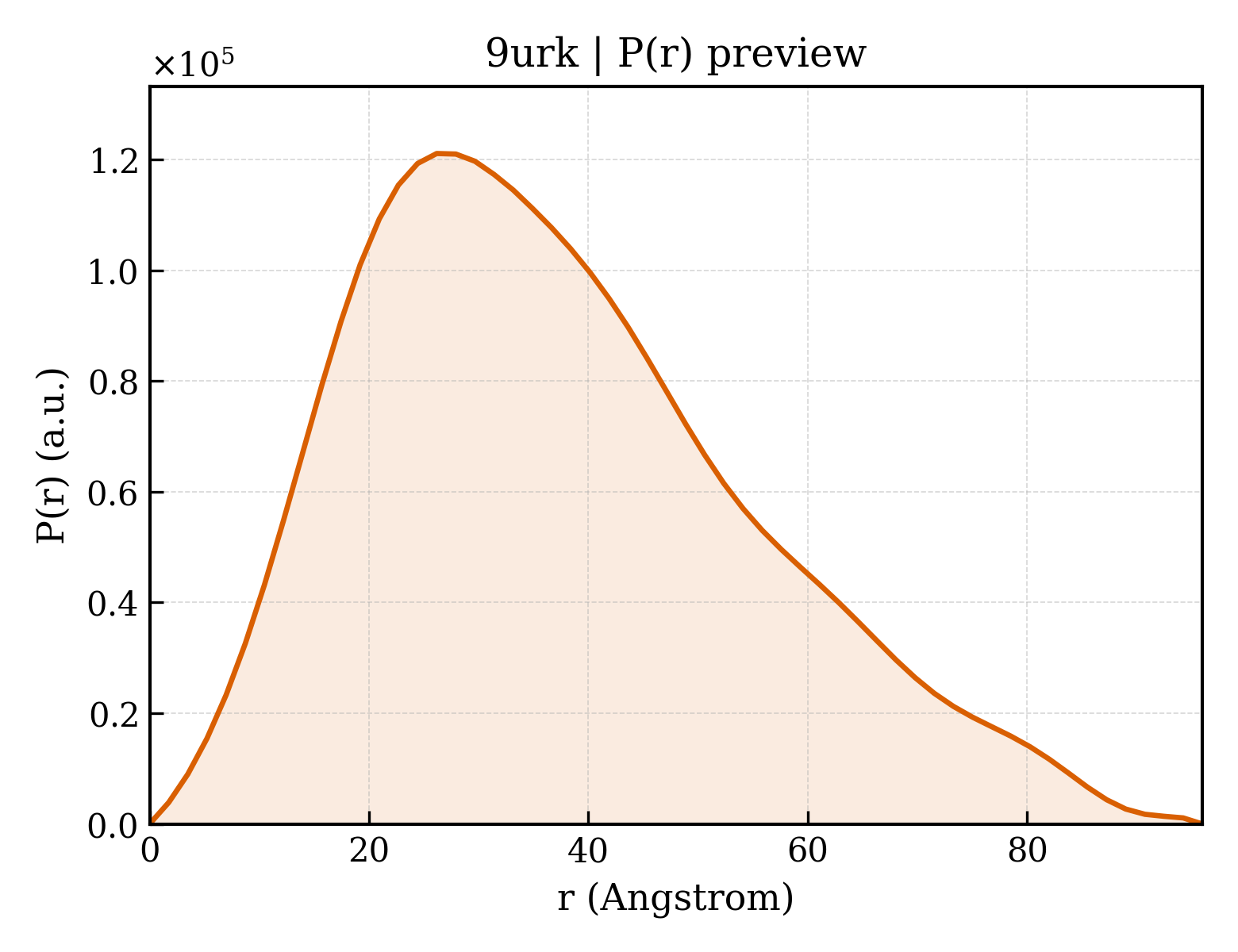

P(r) Distribution

▼

1. Structure Basics

entry_id	9urk
deposition_date	2025-04-30
last_revision	2026-05-06
title	Crystal structure of Imine Reductase Mutant(AHtanRedAm) from Actinoalloteichus hymeniacidonis in complex with NADPH
keywords	Reductive amination, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.89 Å
rg_electron	28.16 Å
i0	65624700.00
molecular_weight	61816.0 kDa
excluded_volume	76484 Å³
envelope_volume	92878 Å³
shell_volume	29243 Å³
envelope_diameter	99.9 Å
shell_rg	33.81 Å
envelope_rg	28.33 Å
shape_rg	28.19 Å
total_rg	28.56 Å
total_atoms	4347
n_residues	579
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	96.0 Å
rg_real	29.09 Å
rg_real_error	0.70 Å
i0_real	6.5620e+07
i0_real_error	9.8490e+05
rg_reciprocal	29.00 Å
i0_reciprocal	65620000.0000
total_estimate	0.8398
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	26.2 Å
skewness	0.554
kurtosis	-0.221
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	20920000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.700

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Beta-hydroxyacid dehydrogenase, 3-hydroxyisobutyrate dehydrogenase
formula_weight	35130.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4424

MGSSHHHHHHSSGLVPRGSHMPESTTPSTATPVTIIGLGAMGTALANAFLDAGHSTTVWNRTAARATALAARGAHHAETVTEAIAASPLVIACVLDYDAFHETLAPATDALAGRALVNLTTGTPKQARETASWAADHRIDYLDGGIMAIPPGIATPDSFILYSGPLGTFEAHRSTLEVLGAANHVGTDHGLASLHDLALLTGMYGMIAGILQAFALIDSEGIPAGDLAPMLTNLLTGAAHSVAHYAQQIDTGDYETGVVFNLAHQSTGFANLVQAGEDQGVDVGLLRPLFELMRHQVAAGYGNGDVASVIELIRREERRQPAKSPGADKITRARRP

Source

organism	Actinoalloteichus hymeniacidonis
ncbi_taxonomy_id	340345
host_organism	Escherichia coli

Entity 2 non-polymer

description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
formula_weight	743.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	nat
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	77

▶

6. Citations (1)

▶

length_a	109.615 Å
length_b	68.047 Å
length_c	95.161 Å
angle_alpha	90.00 °
angle_beta	96.75 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	2.200 Å
resolution_low	32.020 Å
r_factor	0.2007
r_work	0.1989
r_free	0.2346

fit	/app/data/saxs_computation/ur/9urk/9urk.fit
pddf	/app/data/pr_computation/ur/9urk/9urk.pr.out
profile	/app/data/saxs_computation/ur/9urk/9urk.dat
