9uro
Response regulator RR468 binding with Mg2+

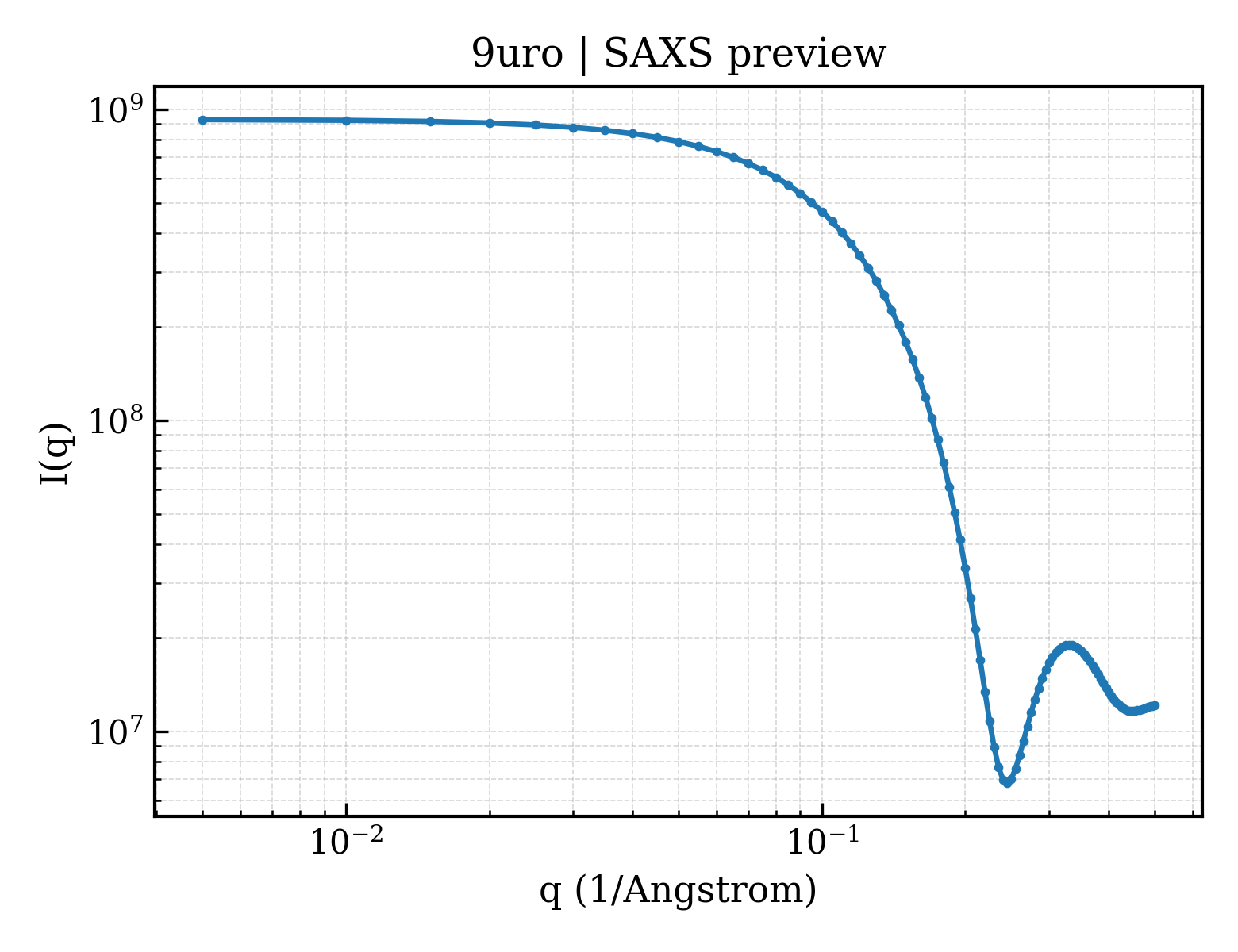

SAXS Profile

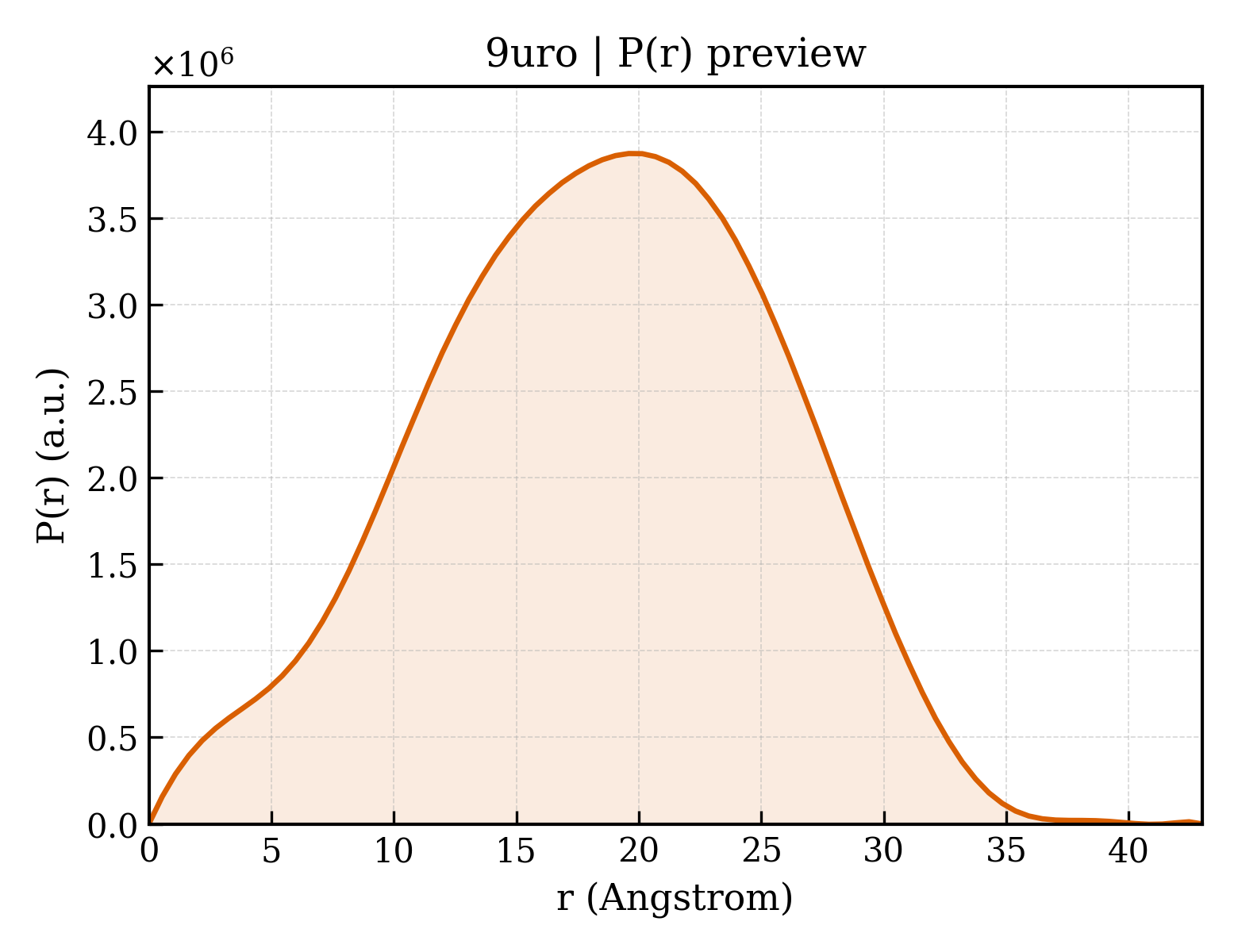

P(r) Distribution
1. Structure Basics
| entry_id | 9uro |
| deposition_date | 2025-04-30 |
| last_revision | 2026-05-06 |
| title | Response regulator RR468 binding with Mg2+ |
| keywords | Bacterial response regulator, Two-component system, Signaling protein; SIGNALING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.12 Å |
| rg_electron | 13.71 Å |
| i0 | 927797000.00 |
| molecular_weight | 277010.0 kDa |
| excluded_volume | 354780 ų |
| envelope_volume | 29290 ų |
| shell_volume | 15763 ų |
| envelope_diameter | 48.0 Å |
| shell_rg | 21.72 Å |
| envelope_rg | 15.46 Å |
| shape_rg | 13.69 Å |
| total_rg | 13.94 Å |
| total_atoms | 39900 |
| n_residues | 2440 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.0 Å |
| rg_real | 13.96 Å |
| rg_real_error | 0.25 Å |
| i0_real | 9.2780e+08 |
| i0_real_error | 1.0770e+07 |
| rg_reciprocal | 13.98 Å |
| i0_reciprocal | 927800000.0000 |
| total_estimate | 0.8083 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.6 Å |
| skewness | -0.139 |
| kurtosis | -0.468 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 320000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.000 |
