9us7

Crystal Structure of Hemophore HphA from A. baumannii with Cobalt Phthalocyanine

Method: X-RAY DIFFRACTION D_max: 55.9 Å Quality: GOOD

SAXS Profile

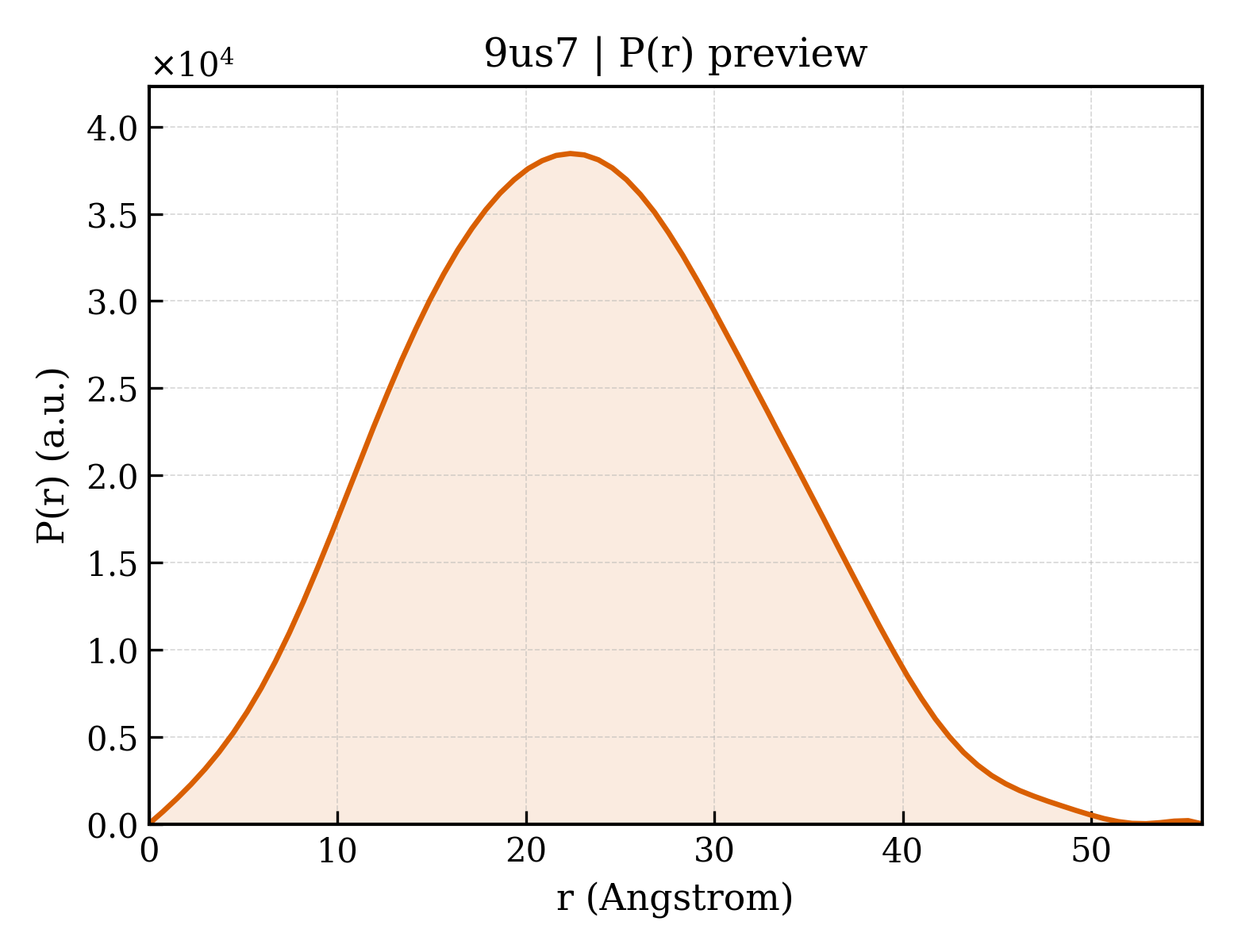

P(r) Distribution

▼

1. Structure Basics

entry_id	9us7
deposition_date	2025-05-01
title	Crystal Structure of Hemophore HphA from A. baumannii with Cobalt Phthalocyanine
keywords	Hemophore, Phthalocyanine, Beta Barrel, Heme Substitution, METAL TRANSPORT; METAL TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.75 Å
rg_electron	16.59 Å
i0	11915000.00
molecular_weight	24586.0 kDa
excluded_volume	30175 Å³
envelope_volume	32687 Å³
shell_volume	16540 Å³
envelope_diameter	57.4 Å
shell_rg	22.69 Å
envelope_rg	16.78 Å
shape_rg	16.55 Å
total_rg	17.61 Å
total_atoms	3338
n_residues	243
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	55.9 Å
rg_real	17.63 Å
rg_real_error	0.24 Å
i0_real	1.1920e+07
i0_real_error	1.2410e+05
rg_reciprocal	17.65 Å
i0_reciprocal	11920000.0000
total_estimate	0.8953
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	22.4 Å
skewness	0.155
kurtosis	-0.417
angular_range	— – 0.4500 Å⁻¹
current_alpha	0.0000
highest_alpha	2338000.0000
n_real_points	76
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.962

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Transferrin-binding protein-like solute binding protein
formula_weight	24125.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3793

GSMGIDGISSNESNIKIGAAANASHPGGVAAVSVQAAGAPYNAFTGFSSLKGLAQAFAAQGTSNTNVTVGSKTFNISHIPVSAMPPSHSALGNFNFGQVGTQEVYFGEWWKAGDTPASASHTVYYAGDNTNTTVPTAGTATYTVAGINGSGSNLLSGTFTANYGAGTLEGTLTGTGTAVSSLSLDGVAFNPGTAAFAGLATANGTAGIDNSGVVQGQFFGANASALAGIAQFDNVSYNTAFGGAKN

Source

organism	Acinetobacter baumannii AB5075
ncbi_taxonomy_id	1116234
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	Cobalt(II) phthalocyanine
formula_weight	571.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	290

▶

6. Citations (1)

▶

length_a	57.264 Å
length_b	62.957 Å
length_c	70.483 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.410 Å
resolution_low	46.998 Å
r_factor	—
r_work	0.1289
r_free	0.1597
