9uuz
Crystal structure of Thoeris protein ThsA

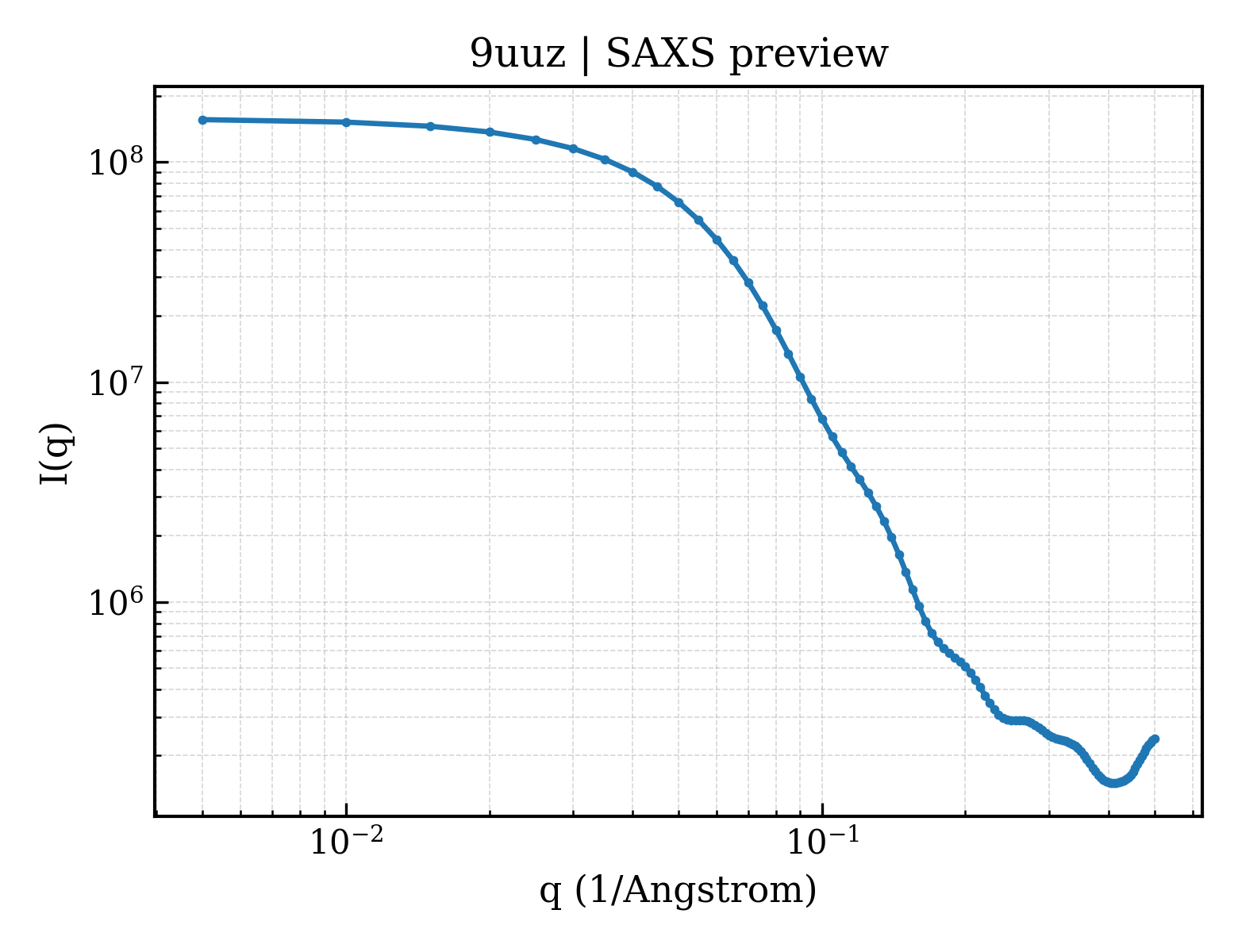

SAXS Profile

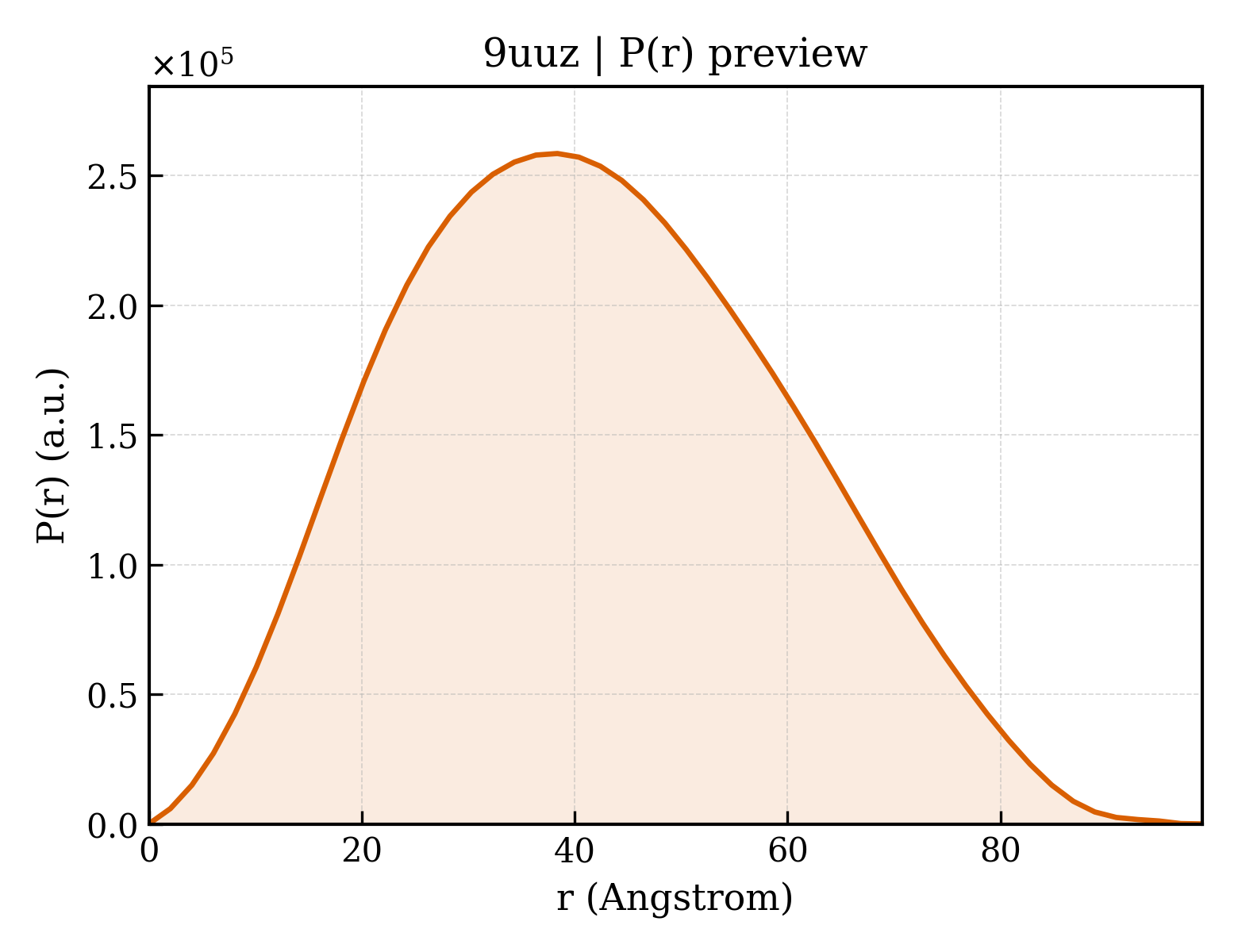

P(r) Distribution
1. Structure Basics
| entry_id | 9uuz |
| deposition_date | 2025-05-08 |
| last_revision | 2026-05-13 |
| title | Crystal structure of Thoeris protein ThsA |
| keywords | antiphage, NAD, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 32.22 Å |
| rg_electron | 31.19 Å |
| i0 | 157497000.00 |
| molecular_weight | 102110.0 kDa |
| excluded_volume | 128550 ų |
| envelope_volume | 162620 ų |
| shell_volume | 42648 ų |
| envelope_diameter | 102.8 Å |
| shell_rg | 38.95 Å |
| envelope_rg | 30.81 Å |
| shape_rg | 31.18 Å |
| total_rg | 31.88 Å |
| total_atoms | 7159 |
| n_residues | 850 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 99.0 Å |
| rg_real | 32.10 Å |
| rg_real_error | 0.64 Å |
| i0_real | 1.5750e+08 |
| i0_real_error | 2.4000e+06 |
| rg_reciprocal | 32.15 Å |
| i0_reciprocal | 157500000.0000 |
| total_estimate | 0.9069 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 38.4 Å |
| skewness | 0.204 |
| kurtosis | -0.582 |
| angular_range | — – 0.2450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 45170000.0000 |
| n_real_points | 50 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.899 |
