9uv0
Crystal structure of Thoeris protein ThsB
SAXS Profile

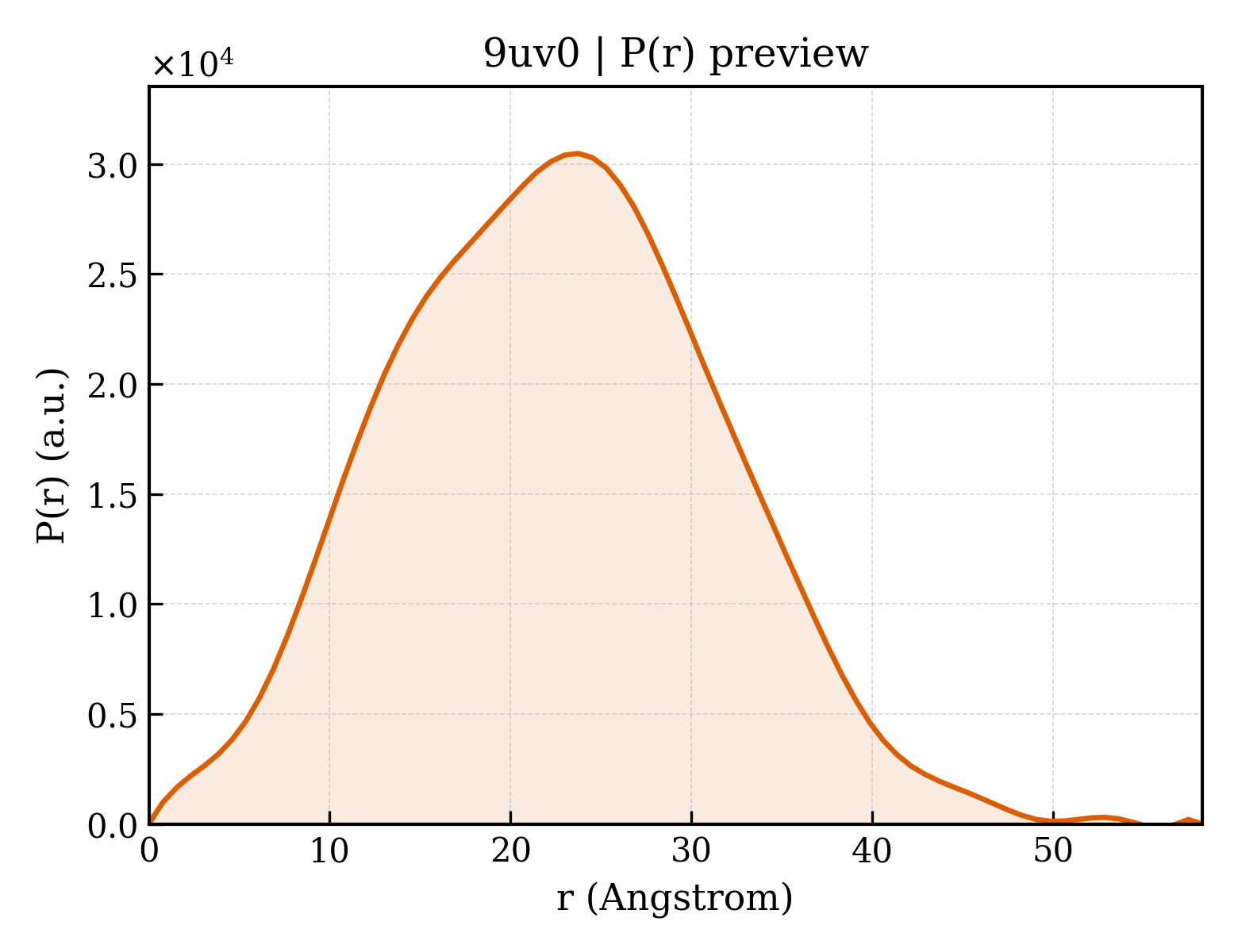

P(r) Distribution
1. Structure Basics
| entry_id | 9uv0 |
| deposition_date | 2025-05-08 |
| last_revision | 2026-05-13 |
| title | Crystal structure of Thoeris protein ThsB |
| keywords | TIR domain, anti-phage, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.27 Å |
| rg_electron | 15.88 Å |
| i0 | 8913160.00 |
| molecular_weight | 22285.0 kDa |
| excluded_volume | 28047 ų |
| envelope_volume | 30982 ų |
| shell_volume | 16139 ų |
| envelope_diameter | 59.4 Å |
| shell_rg | 22.31 Å |
| envelope_rg | 16.35 Å |
| shape_rg | 15.82 Å |
| total_rg | 17.19 Å |
| total_atoms | 1573 |
| n_residues | 195 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.3 Å |
| rg_real | 17.14 Å |
| rg_real_error | 0.36 Å |
| i0_real | 8.9130e+06 |
| i0_real_error | 1.0980e+05 |
| rg_reciprocal | 17.16 Å |
| i0_reciprocal | 8913000.0000 |
| total_estimate | 0.7795 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.8 Å |
| skewness | 0.137 |
| kurtosis | -0.295 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2992000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.710; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
