9uxt
The Structural Basis of ClpP1 in Pseudomonas plecoglossicida

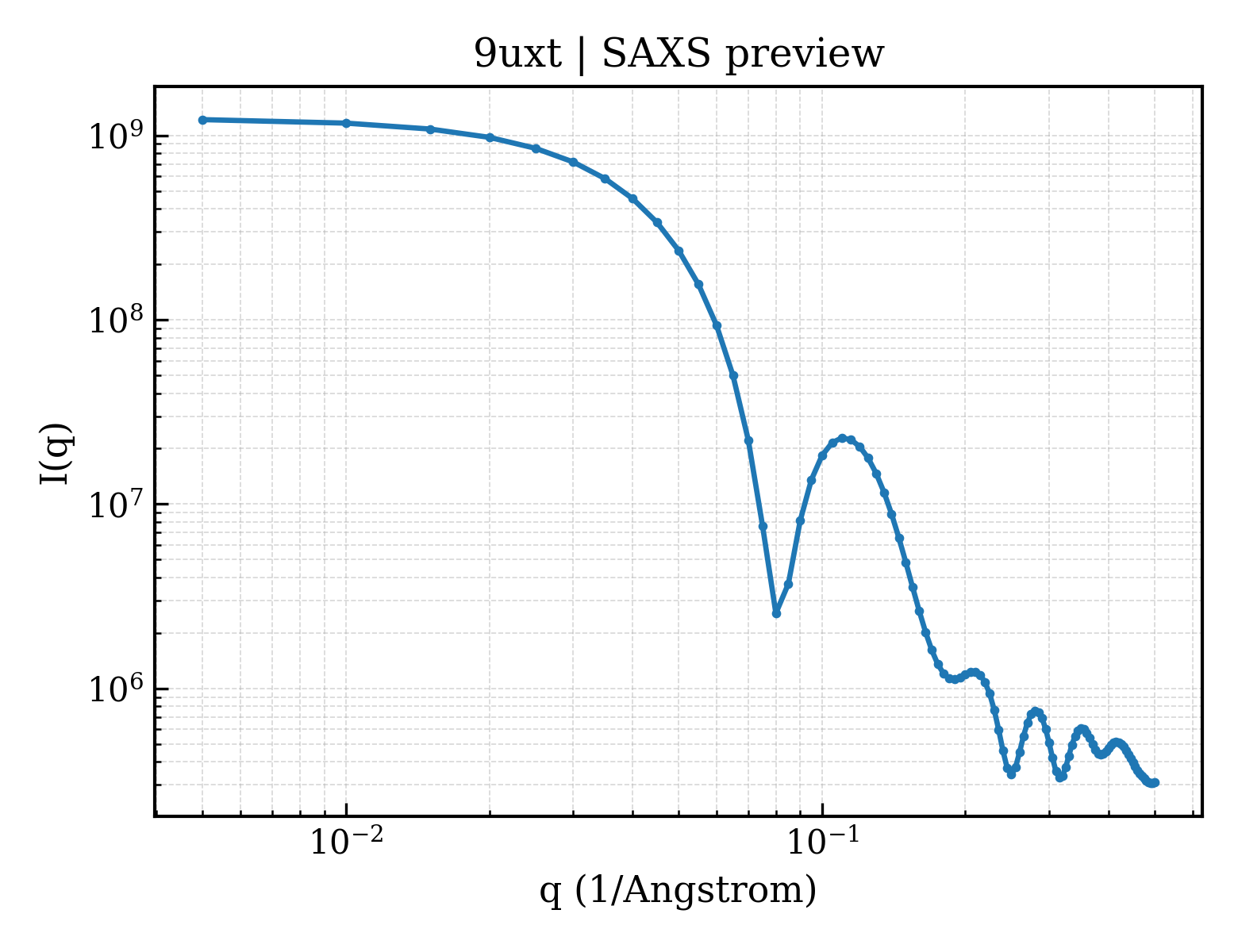

SAXS Profile

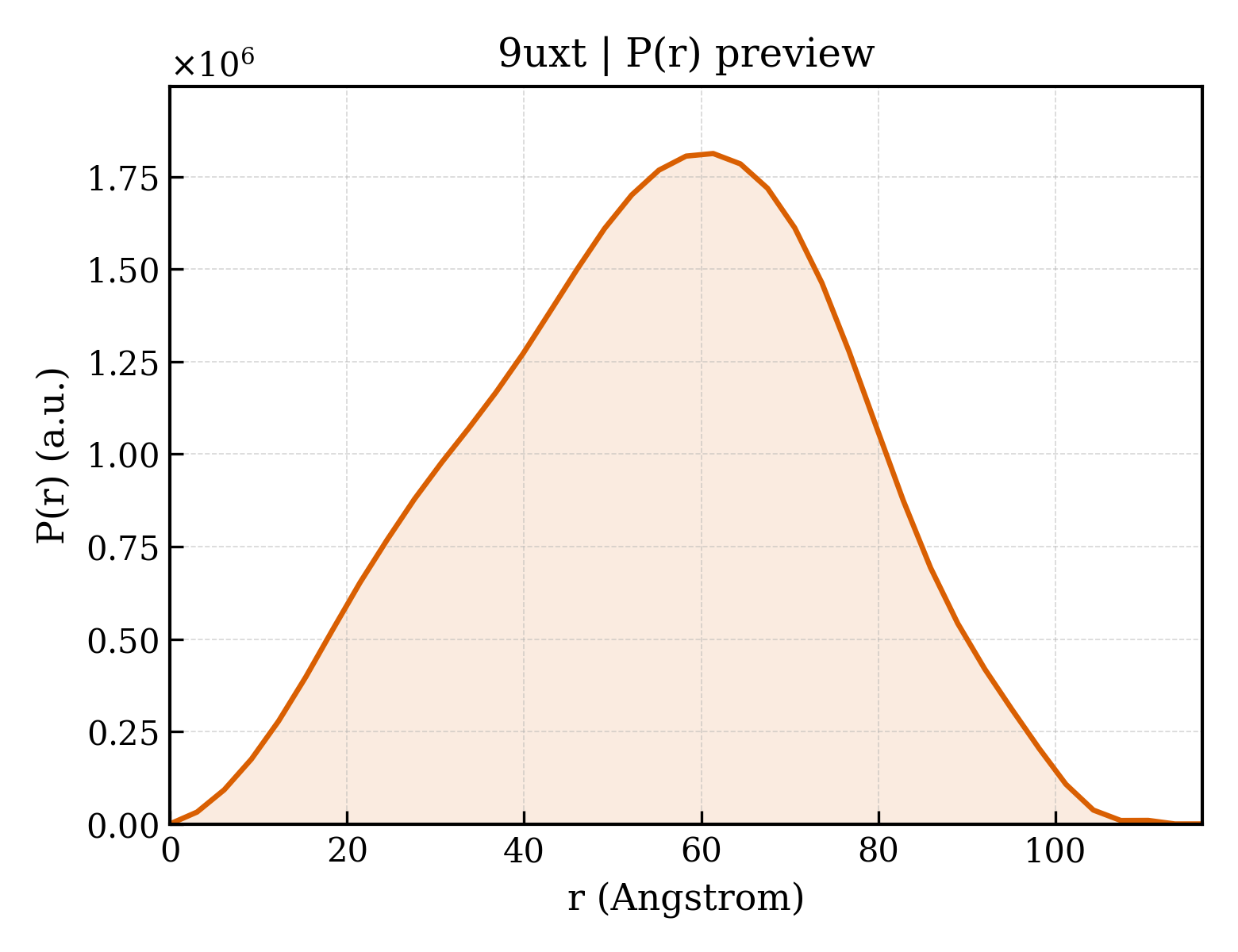

P(r) Distribution
1. Structure Basics
| entry_id | 9uxt |
| deposition_date | 2025-05-15 |
| title | The Structural Basis of ClpP1 in Pseudomonas plecoglossicida |
| keywords | Pseudomonas plecoglossicida; caseinolytic proteases; tetradecameric; Cryo-EM structure, HYDROLASE; HYDROLASE |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 42.03 Å |
| rg_electron | 41.05 Å |
| i0 | 1234150000.00 |
| molecular_weight | 284960.0 kDa |
| excluded_volume | 353960 ų |
| envelope_volume | 467030 ų |
| shell_volume | 89367 ų |
| envelope_diameter | 119.7 Å |
| shell_rg | 51.35 Å |
| envelope_rg | 39.49 Å |
| shape_rg | 41.03 Å |
| total_rg | 41.57 Å |
| total_atoms | 19992 |
| n_residues | 2562 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 116.6 Å |
| rg_real | 41.66 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.2340e+09 |
| i0_real_error | 1.6980e+07 |
| rg_reciprocal | 42.03 Å |
| i0_reciprocal | 1235000000.0000 |
| total_estimate | 0.8690 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 61.4 Å |
| skewness | -0.126 |
| kurtosis | -0.570 |
| angular_range | — – 0.1900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 443600000.0000 |
| n_real_points | 39 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.488 |
