9v2a
The Chlamydomonas reinhardtii bicarbonate transporter LciA
SAXS Profile

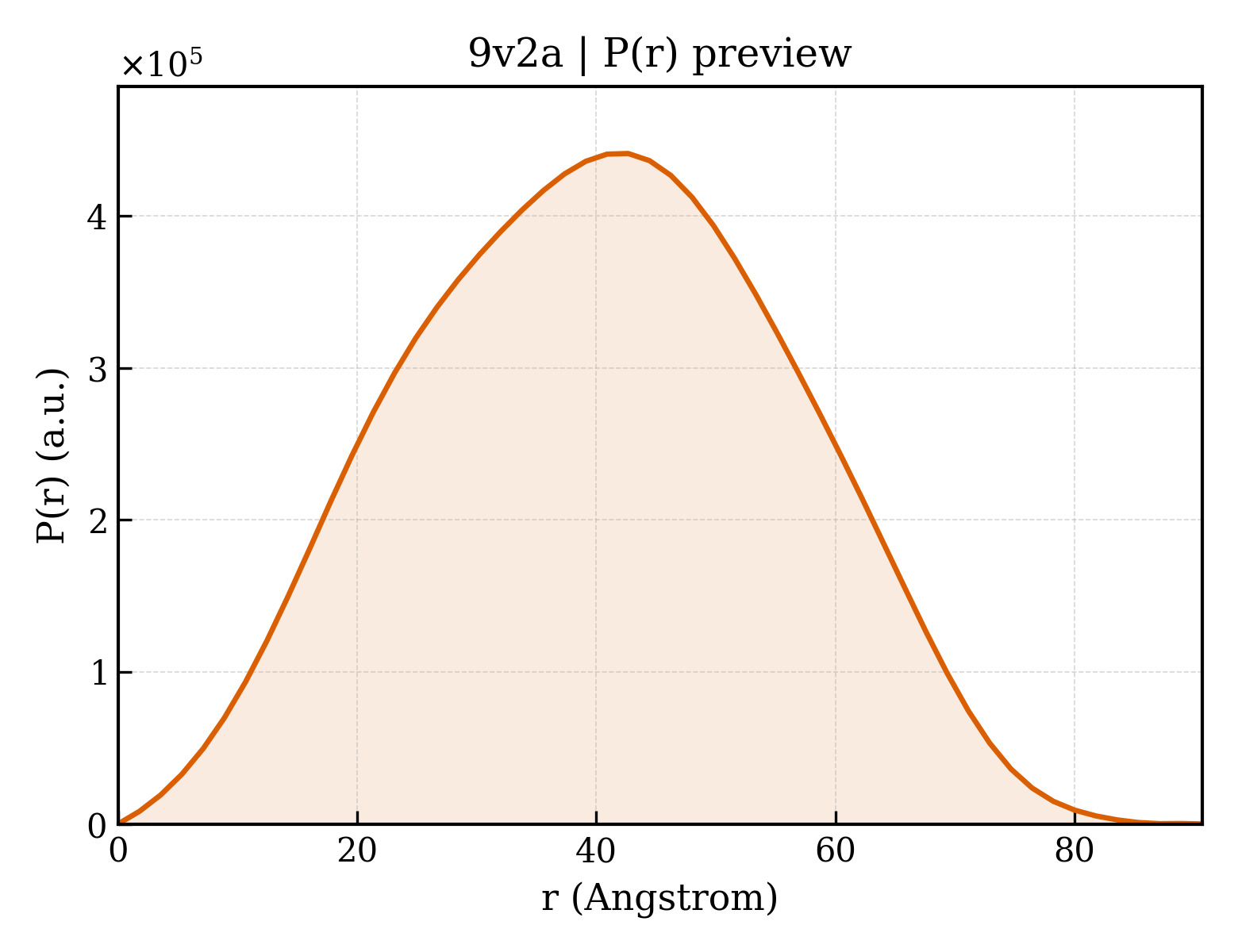

P(r) Distribution
1. Structure Basics
| entry_id | 9v2a |
| deposition_date | 2025-05-19 |
| title | The Chlamydomonas reinhardtii bicarbonate transporter LciA |
| keywords | Chlamydomonas reinhardtii, bicarbonate transporters, LciA, CO2-concentrating mechanism, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.78 Å |
| rg_electron | 29.92 Å |
| i0 | 237208000.00 |
| molecular_weight | 133230.0 kDa |
| excluded_volume | 171060 ų |
| envelope_volume | 192440 ų |
| shell_volume | 50570 ų |
| envelope_diameter | 90.1 Å |
| shell_rg | 39.51 Å |
| envelope_rg | 29.71 Å |
| shape_rg | 29.96 Å |
| total_rg | 30.63 Å |
| total_atoms | 9350 |
| n_residues | 1280 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 90.7 Å |
| rg_real | 30.53 Å |
| rg_real_error | 0.41 Å |
| i0_real | 2.3720e+08 |
| i0_real_error | 3.1820e+06 |
| rg_reciprocal | 30.64 Å |
| i0_reciprocal | 237200000.0000 |
| total_estimate | 0.9066 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 42.7 Å |
| skewness | 0.015 |
| kurtosis | -0.602 |
| angular_range | — – 0.2550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 53120000.0000 |
| n_real_points | 52 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.944 |
