9v4c
Selective Production of Versatile L-Glyceraldehyde from C1 and/or C2 aldehydes

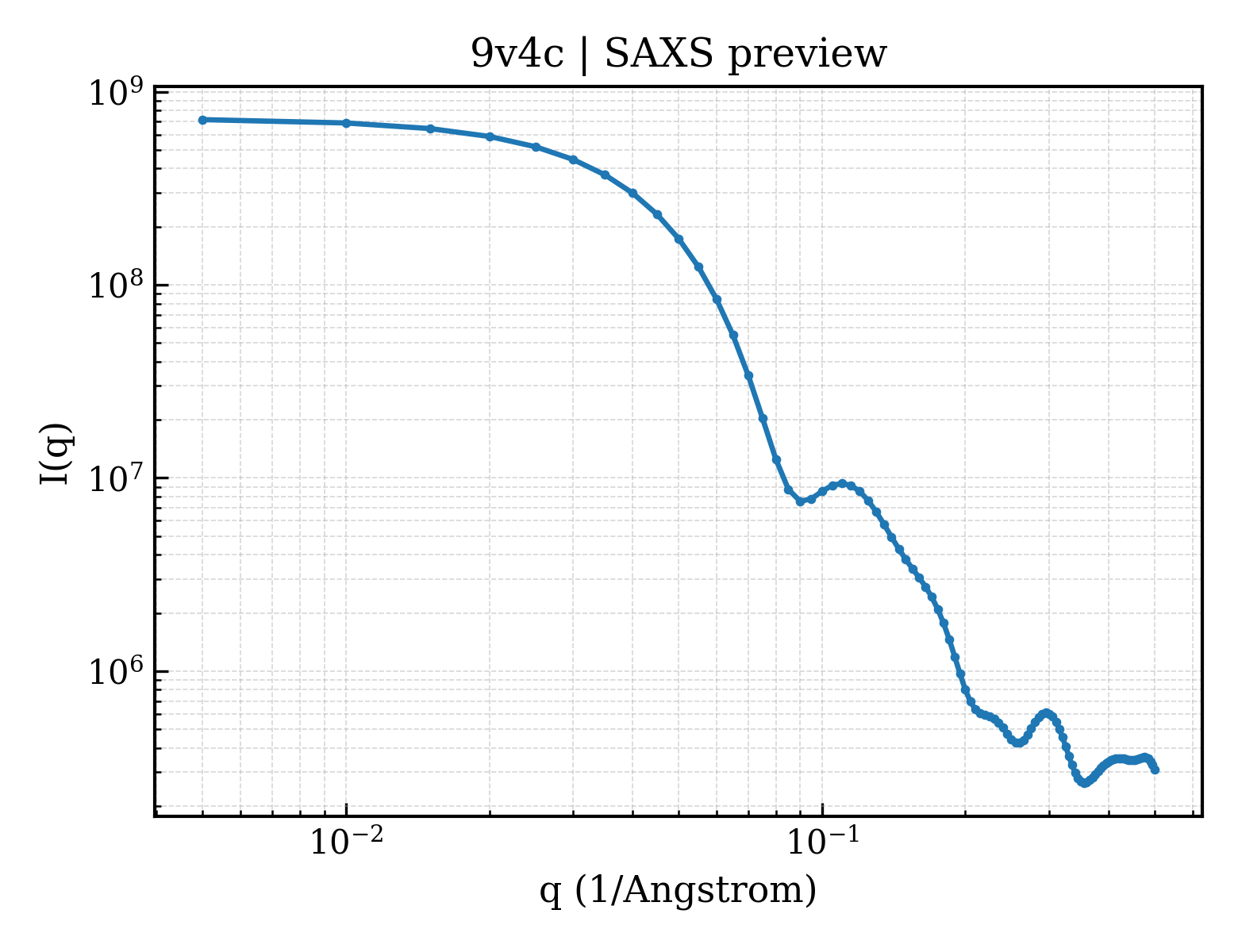

SAXS Profile

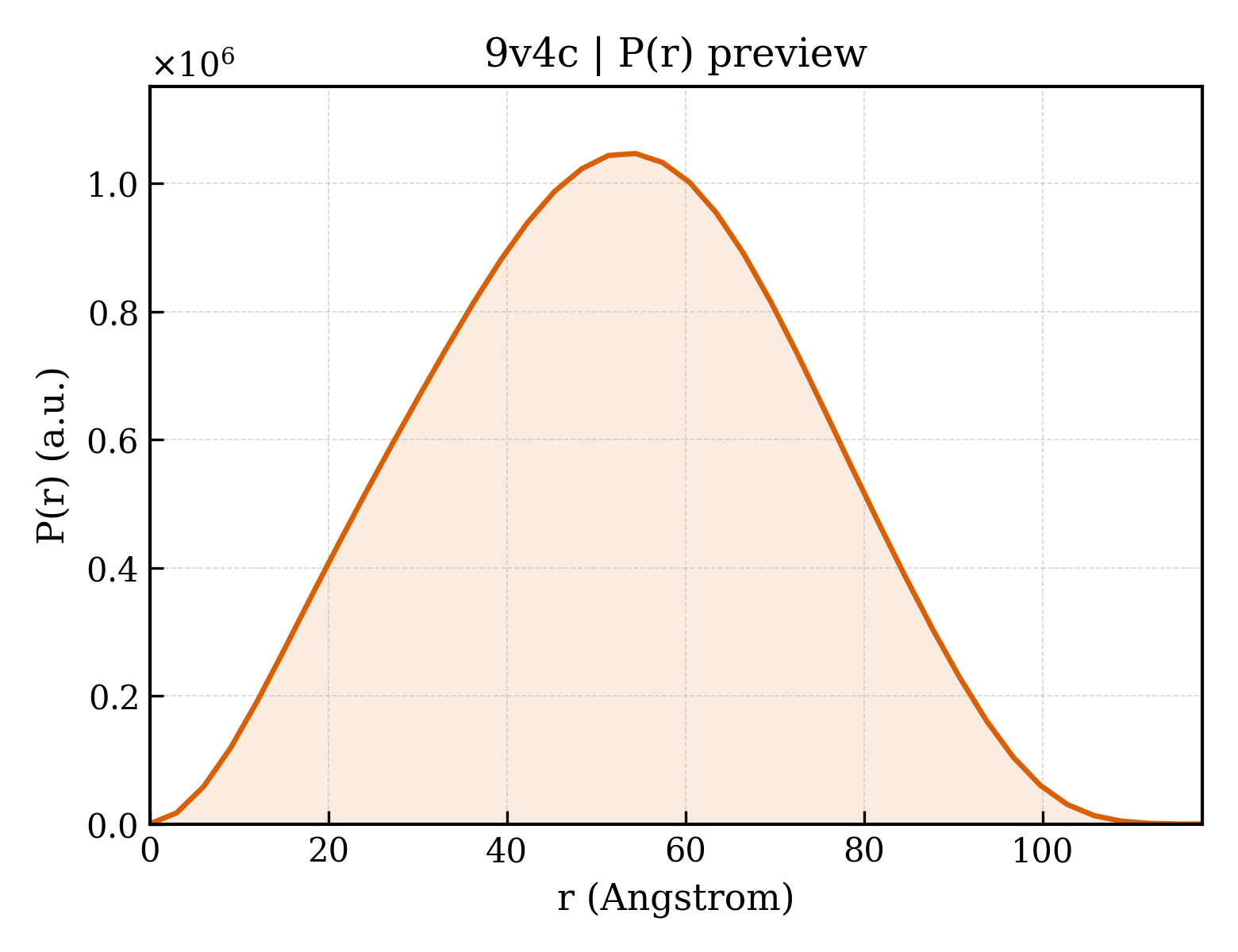

P(r) Distribution
1. Structure Basics
| entry_id | 9v4c |
| deposition_date | 2025-05-23 |
| last_revision | 2025-11-12 |
| title | Selective Production of Versatile L-Glyceraldehyde from C1 and/or C2 aldehydes |
| keywords | Fructose-6-phosphate aldolase, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 40.02 Å |
| rg_electron | 39.37 Å |
| i0 | 726116000.00 |
| molecular_weight | 235880.0 kDa |
| excluded_volume | 301620 ų |
| envelope_volume | 377720 ų |
| shell_volume | 75071 ų |
| envelope_diameter | 118.7 Å |
| shell_rg | 48.93 Å |
| envelope_rg | 38.74 Å |
| shape_rg | 39.39 Å |
| total_rg | 39.80 Å |
| total_atoms | 16594 |
| n_residues | 2211 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 117.9 Å |
| rg_real | 39.77 Å |
| rg_real_error | 0.68 Å |
| i0_real | 7.2610e+08 |
| i0_real_error | 1.1040e+07 |
| rg_reciprocal | 40.01 Å |
| i0_reciprocal | 726300000.0000 |
| total_estimate | 0.8967 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 54.4 Å |
| skewness | 0.017 |
| kurtosis | -0.589 |
| angular_range | — – 0.1950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 112000000.0000 |
| n_real_points | 40 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.816 |
