9v5z

PfDXR - Mn2+ - SHOK314 - NADPH quaternary complex

Method: X-RAY DIFFRACTION D_max: 100.4 Å Quality: GOOD

SAXS Profile

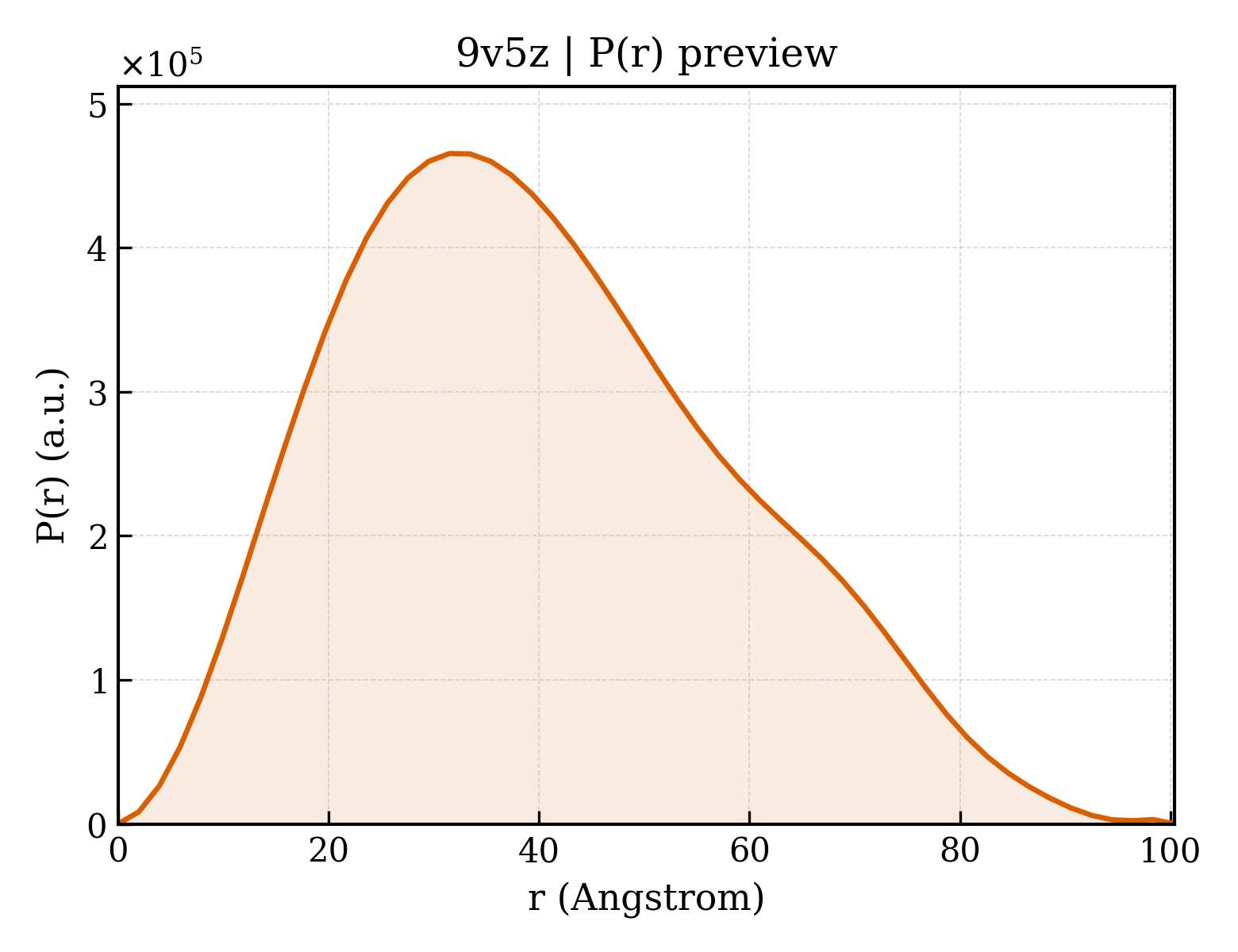

P(r) Distribution

▼

1. Structure Basics

entry_id	9v5z
deposition_date	2025-05-26
title	PfDXR - Mn2+ - SHOK314 - NADPH quaternary complex
keywords	Inhibitor, Malaria, ISOMERASE; ISOMERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.11 Å
rg_electron	30.65 Å
i0	273214000.00
molecular_weight	89318.0 kDa
excluded_volume	86697 Å³
envelope_volume	142190 Å³
shell_volume	38971 Å³
envelope_diameter	106.7 Å
shell_rg	37.64 Å
envelope_rg	31.04 Å
shape_rg	30.66 Å
total_rg	31.06 Å
total_atoms	6735
n_residues	822
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	100.4 Å
rg_real	31.18 Å
rg_real_error	0.76 Å
i0_real	2.7320e+08
i0_real_error	3.9830e+06
rg_reciprocal	31.15 Å
i0_reciprocal	273200000.0000
total_estimate	0.8843
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	31.5 Å
skewness	0.391
kurtosis	-0.473
angular_range	— – 0.2550 Å⁻¹
current_alpha	0.0000
highest_alpha	59940000.0000
n_real_points	52
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.874

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	1-deoxy-D-xylulose 5-phosphate reductoisomerase, apicoplastic
formula_weight	55829.6 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7210

MKKYIYIYFFFITITINDLVINNTSKCVSIERRKNNAYINYGIGYNGPDNKITKSRRCKRIKLCKKDLIDIGAIKKPINVAIFGSTGSIGTNALNIIRECNKIENVFNVKALYVNKSVNELYEQAREFLPEYLCIHDKSVYEELKELVKNIKDYKPIILCGDEGMKEICSSNSIDKIVIGIDSFQGLYSTMYAIMNNKIVALANKESIVSAGFFLKKLLNIHKNAKIIPVDSEHSAIFQCLDNNKVLKTKCLQDNFSKINNINKIFLCSSGGPFQNLTMDELKNVTSENALKHPKWKMGKKITIDSATMMNKGLEVIETHFLFDVDYNDIEVIVHKECIIHSCVEFIDKSVISQMYYPDMQIPILYSLTWPDRIKTNLKPLDLAQVSTLTFHKPSLEHFPCIKLAYQAGIKGNFYPTVLNASNEIANNLFLNNKIKYFDISSIISQVLESFNSQKVSENSEDLMKQILQIHSWAKDKATDIYNKHNSS

Source

organism	Plasmodium falciparum HB3
ncbi_taxonomy_id	137071
host_organism	Escherichia coli

Entity 2 non-polymer

description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
formula_weight	745.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	[(1~{S})-4-[4-[1,3-bis(oxidanylidene)isoindol-2-yl]butyl-oxidanyl-amino]-4-oxidanylidene-1-phenyl-butyl]phosphonic acid
formula_weight	460.4 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	3

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	475

▶

6. Citations (1)

▶

length_a	51.578 Å
length_b	76.876 Å
length_c	111.148 Å
angle_alpha	90.00 °
angle_beta	92.54 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.580 Å
resolution_low	45.010 Å
r_factor	0.1642
r_work	0.1630
r_free	0.1857
