9v62
Cryogenic temprature crystal structure of Escherichia coli CyaY
SAXS Profile

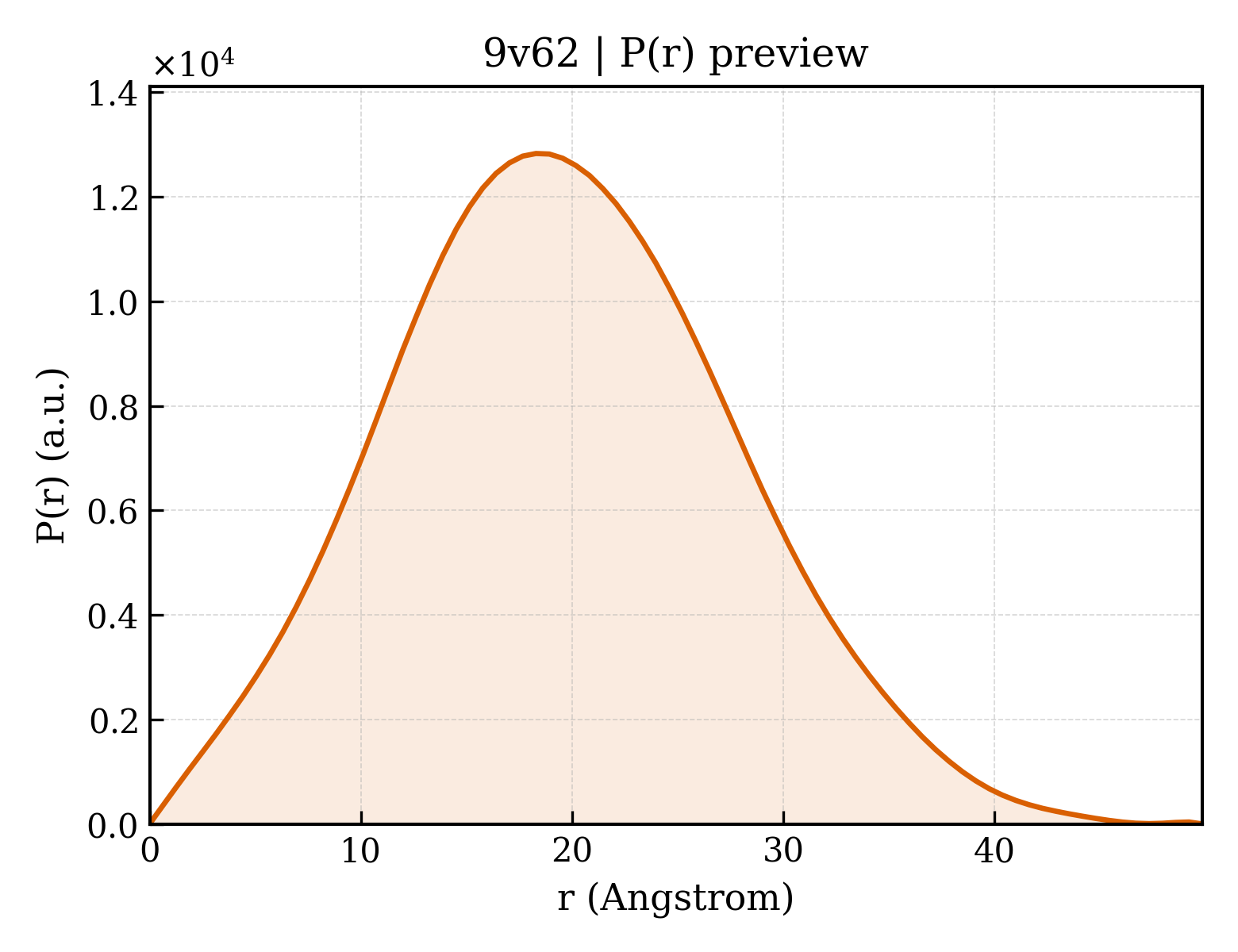

P(r) Distribution
1. Structure Basics
| entry_id | 9v62 |
| deposition_date | 2025-05-26 |
| last_revision | 2026-05-06 |
| title | Cryogenic temprature crystal structure of Escherichia coli CyaY |
| keywords | CyaY, Escherichia coli, Frataxin, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.06 Å |
| rg_electron | 13.42 Å |
| i0 | 3328130.00 |
| molecular_weight | 12217.0 kDa |
| excluded_volume | 14997 ų |
| envelope_volume | 17126 ų |
| shell_volume | 11050 ų |
| envelope_diameter | 48.2 Å |
| shell_rg | 18.90 Å |
| envelope_rg | 13.72 Å |
| shape_rg | 13.41 Å |
| total_rg | 14.62 Å |
| total_atoms | 863 |
| n_residues | 106 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.8 Å |
| rg_real | 14.98 Å |
| rg_real_error | 0.35 Å |
| i0_real | 3.3280e+06 |
| i0_real_error | 3.9510e+04 |
| rg_reciprocal | 14.99 Å |
| i0_reciprocal | 3328000.0000 |
| total_estimate | 0.8776 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.3 Å |
| skewness | 0.199 |
| kurtosis | -0.266 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 458500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.985 |
