9v9f

Methionyl-tRNA synthetase from Staphylococcus aureus in complex with an inhibitor

Method: X-RAY DIFFRACTION D_max: 97.4 Å Quality: GOOD

SAXS Profile

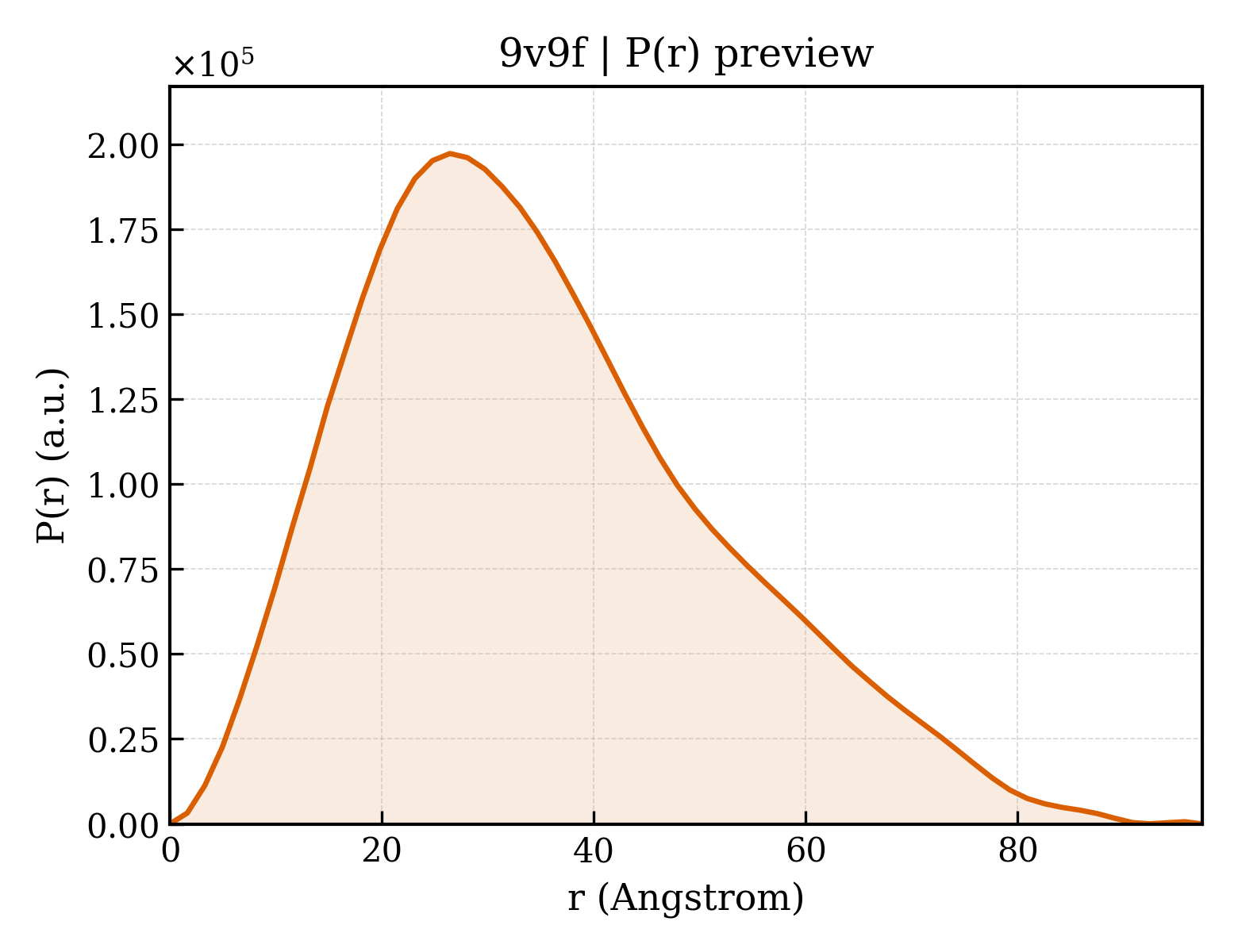

P(r) Distribution

▼

1. Structure Basics

entry_id	9v9f
deposition_date	2025-05-30
last_revision	2026-06-03
title	Methionyl-tRNA synthetase from Staphylococcus aureus in complex with an inhibitor
keywords	methionyl-tRNA synthetase, complex, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.05 Å
rg_electron	26.67 Å
i0	96934700.00
molecular_weight	53569.0 kDa
excluded_volume	52680 Å³
envelope_volume	84308 Å³
shell_volume	27770 Å³
envelope_diameter	101.3 Å
shell_rg	32.42 Å
envelope_rg	26.97 Å
shape_rg	26.62 Å
total_rg	27.19 Å
total_atoms	4072
n_residues	507
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	97.4 Å
rg_real	27.28 Å
rg_real_error	0.98 Å
i0_real	9.6930e+07
i0_real_error	1.4840e+06
rg_reciprocal	27.21 Å
i0_reciprocal	96930000.0000
total_estimate	0.8082
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.4 Å
skewness	0.583
kurtosis	-0.142
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	15670000.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.619; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.675; Smooth: 0.977

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Methionine--tRNA ligase
formula_weight	61104.0 kDa
ec_number	6.1.1.10
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	AAA
atom_count	4602

MGSSHHHHHHSAKETFYITTPIYYPSGNLHIGHAYSTVAGDVIARYKRMQGYDVRYLTGTDEHGQKIQEKAQKAGKTEIEYLDEMIAGIKQLWAKLEISNDDFIRTTEERHKHVVEQVFERLLKQGDIYLGEYEGWYSVPDETYYTESQLVDPQYENGKIIGGKSPDSGHEVELVKEESYFFNISKYTDRLLEFYDQNPDFIQPPSRKNEMINNFIKPGLADLAVSRTSFNWGVHVPSNPKHVVYVWIDALVNYISALGYLSDDESLFNKYWPADIHLMAKEIVRFHSIIWPILLMALDLPLPKKVFAHGWILMKDGKMSKSKGNVVDPNILIDRYGLDATRYYLMRELPFGSDGVFTPEAFVERTNFDLANDLGNLVNRTISMVNKYFDGELPAYQGPLHELDEEMEAMALETVKSYTESMESLQFSVALSTVWKFISRTNKYIDETTPWVLAKDDSQKDMLGNVMAHLVENIRYAAVLLRPFLTHAPKEIFEQLNINNPQFMEFSSLEQYGVLNESIMVTGQPKPIFP

Source

organism	Staphylococcus aureus
ncbi_taxonomy_id	1280
host_organism	Escherichia coli

Entity 2 non-polymer

description	;9-[(1R)-1-[[3,5-bis(chloranyl)phenyl]amino]ethyl]-N-(2-hydroxyethyl)-N-methyl-2-morpholin-4-yl-4-oxidanylidene-pyrido[1,2-a]pyrimidine-7-carboxamide ;
formula_weight	520.4 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	nat
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	530

▶

6. Citations (1)

▶

length_a	59.181 Å
length_b	76.758 Å
length_c	118.751 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.000 Å
resolution_low	46.964 Å
r_factor	—
r_work	0.1961
r_free	0.2185

fit	/app/data/saxs_computation/v9/9v9f/9v9f.fit
pddf	/app/data/pr_computation/v9/9v9f/9v9f.pr.out
profile	/app/data/saxs_computation/v9/9v9f/9v9f.dat
