9vbs
Crystal structure of the coiled-coil of ALLO-1a

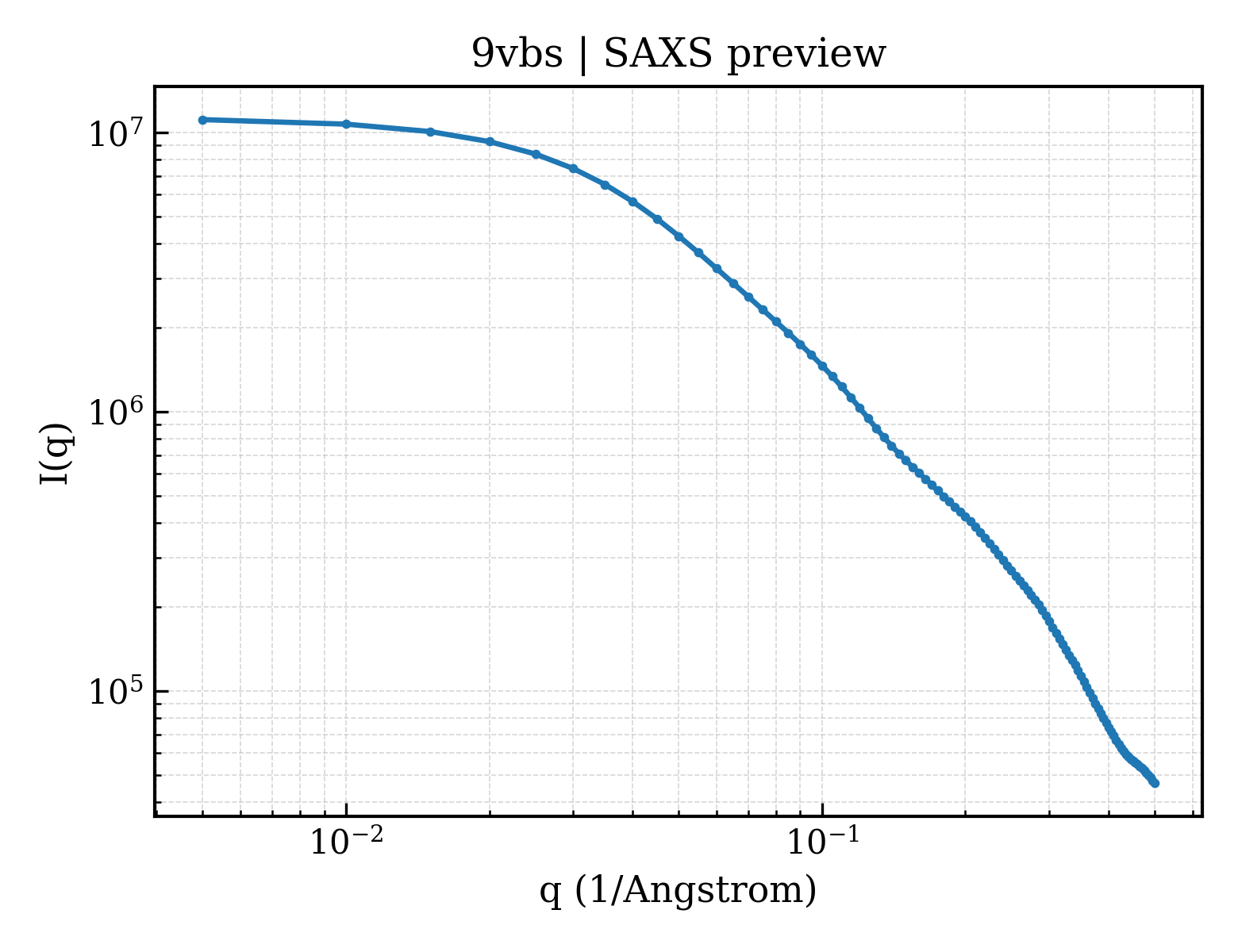

SAXS Profile

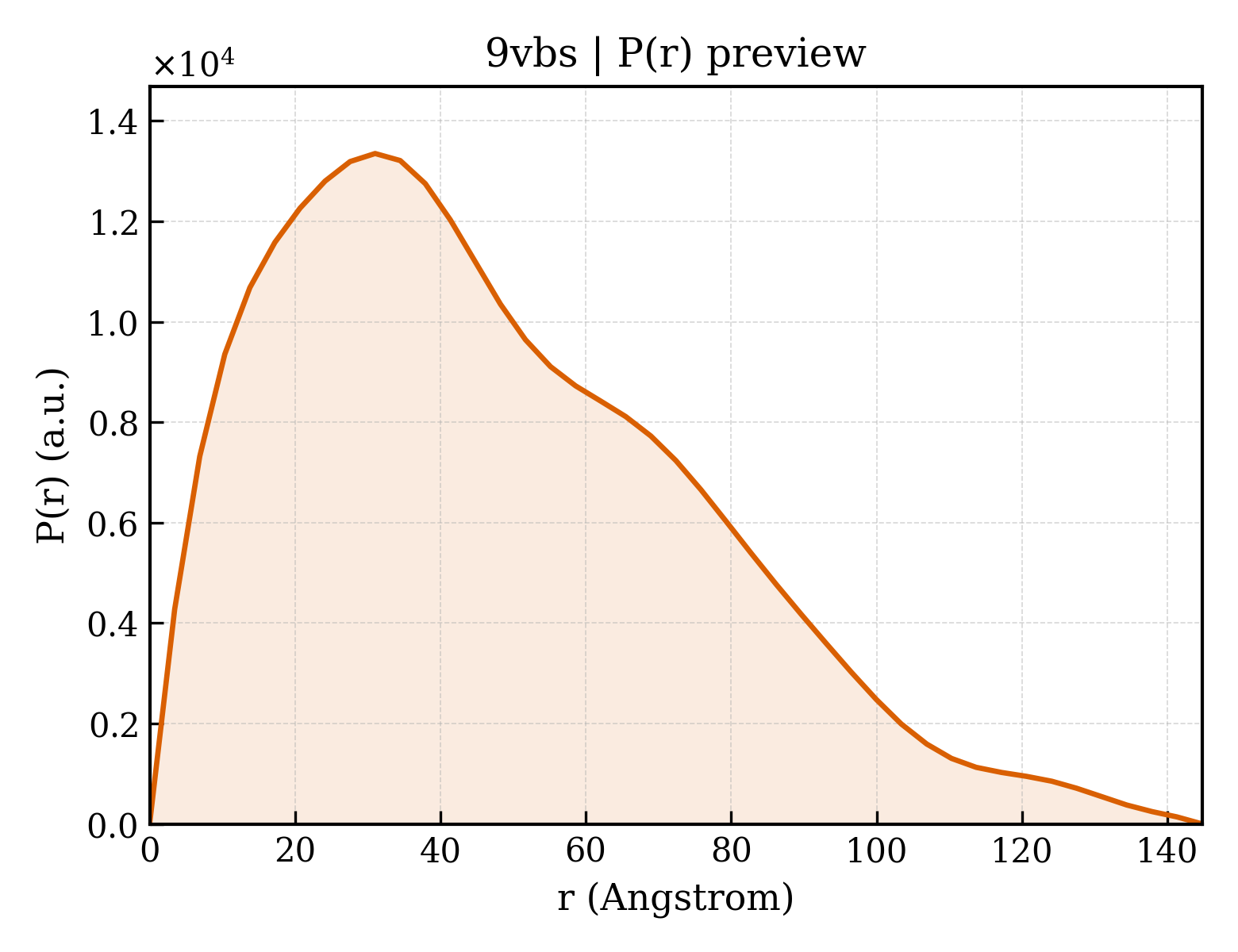

P(r) Distribution
1. Structure Basics
| entry_id | 9vbs |
| deposition_date | 2025-06-04 |
| title | Crystal structure of the coiled-coil of ALLO-1a |
| keywords | autophagy adaptor, ubiquitin binding, ATG8 binding, PROTEIN BINDING; PROTEIN BINDING |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 37.70 Å |
| rg_electron | 40.09 Å |
| i0 | 11273900.00 |
| molecular_weight | 24459.0 kDa |
| excluded_volume | 30062 ų |
| envelope_volume | 54544 ų |
| shell_volume | 14295 ų |
| envelope_diameter | 149.5 Å |
| shell_rg | 35.24 Å |
| envelope_rg | 40.28 Å |
| shape_rg | 40.12 Å |
| total_rg | 39.52 Å |
| total_atoms | 1711 |
| n_residues | 216 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 144.8 Å |
| rg_real | 38.74 Å |
| rg_real_error | 2.11 Å |
| i0_real | 1.1270e+07 |
| i0_real_error | 2.3100e+05 |
| rg_reciprocal | 38.09 Å |
| i0_reciprocal | 11270000.0000 |
| total_estimate | 0.6693 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 31.0 Å |
| skewness | 0.654 |
| kurtosis | -0.113 |
| angular_range | — – 0.2100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 534500.0000 |
| n_real_points | 43 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.313; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.193; Smooth: 0.566 |
