9vdq

Crystal structure of voltage-gated sodium channel NavAb N49K mutant

Method: X-RAY DIFFRACTION D_max: 86.0 Å Quality: GOOD

SAXS Profile

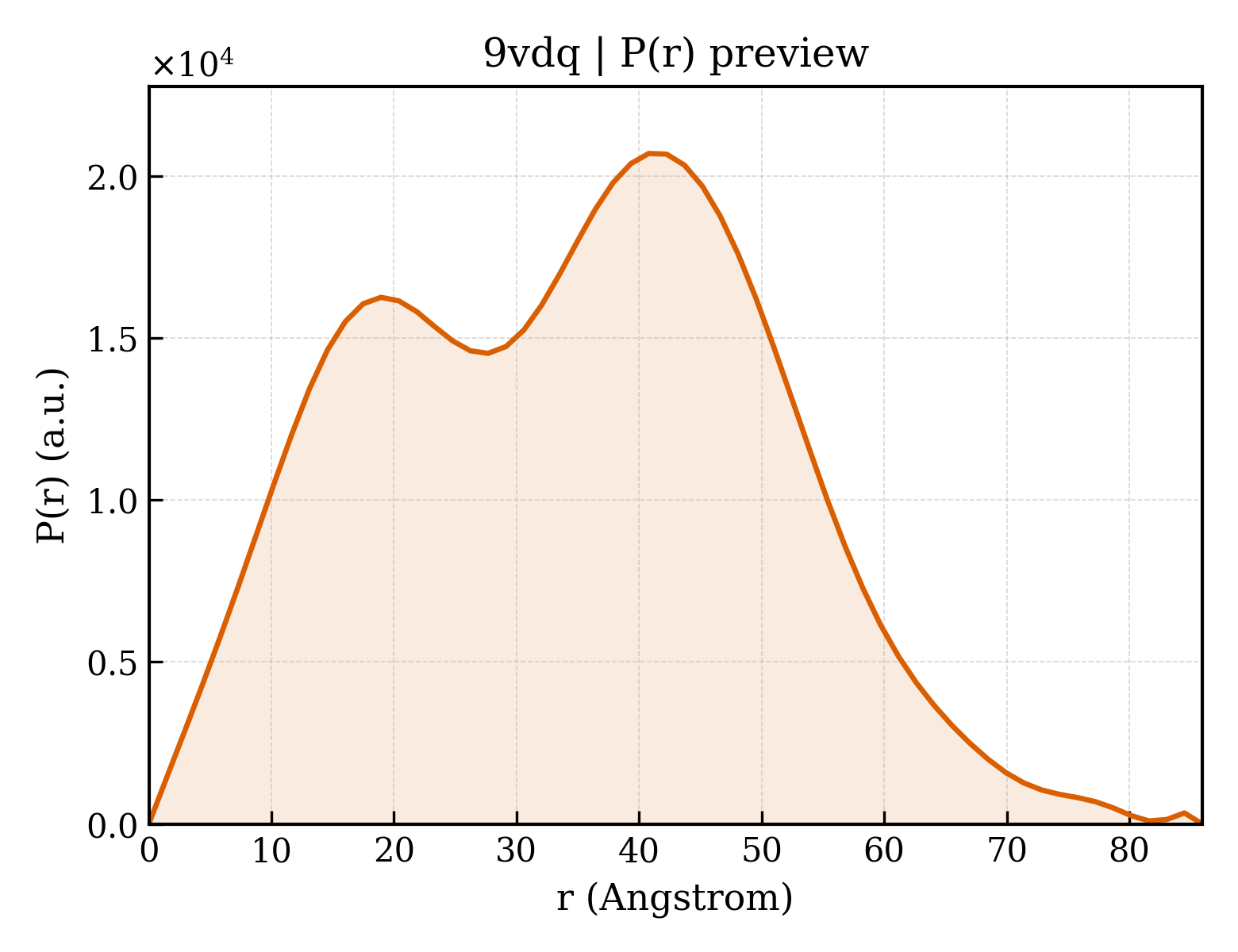

P(r) Distribution

▼

1. Structure Basics

entry_id	9vdq
deposition_date	2025-06-09
title	Crystal structure of voltage-gated sodium channel NavAb N49K mutant
keywords	ion channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.89 Å
rg_electron	25.53 Å
i0	10880300.00
molecular_weight	32371.0 kDa
excluded_volume	43951 Å³
envelope_volume	59997 Å³
shell_volume	20508 Å³
envelope_diameter	90.9 Å
shell_rg	31.53 Å
envelope_rg	24.71 Å
shape_rg	25.51 Å
total_rg	26.64 Å
total_atoms	2271
n_residues	229
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	86.0 Å
rg_real	26.88 Å
rg_real_error	0.81 Å
i0_real	1.0880e+07
i0_real_error	1.6820e+05
rg_reciprocal	26.88 Å
i0_reciprocal	10880000.0000
total_estimate	0.8082
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	40.8 Å
skewness	0.095
kurtosis	-0.641
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	813700.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.750; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.863; Smooth: 0.395

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Ion transport protein
formula_weight	31253.1 kDa
mutation	N49K
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2281

GSMYLRITNIVESSFFTKFIIYLIVLNGITMGLETSKTFMQSFGVYTTLFKQIVITIFTIEIILRIYVHRISFFKDPWSLFDFFVVAISLVPTSSGFEILRVLRVLRLFRLVTAVPQMRKIVSALISVIPGMLSVIALMTLFFYIFAIMATQLFGERFPEWFGTLGESFYTLFQVMTLESWSMGIVRPLMEVYPYAWVFFIPFIFVVTFVMINLVVAIIVDAMAILNQKEEQHIIDEVQSHEDNINNEIIKLREEIVELKELIKTSLKN

Source

organism	Aliarcobacter butzleri (strain RM4018)
ncbi_taxonomy_id	367737
host_organism	Escherichia coli

Entity 2 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	CHAPSO
formula_weight	631.9 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
formula_weight	678.9 kDa
src_method	syn
entity_count	8

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	10

▶

6. Citations (1)

▶

length_a	127.183 Å
length_b	127.183 Å
length_c	201.410 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	I 4 2 2
int_tables_number	97
crystal_system	tetragonal

resolution	3.100 Å
resolution_low	43.930 Å
r_factor	0.2457
r_work	0.2412
r_free	0.2893
