9vf7
Structure of Meiothermus ruber Mrub_1259 LOV domain with N- and C-terminal alpha helices (MrLOVe)
SAXS Profile

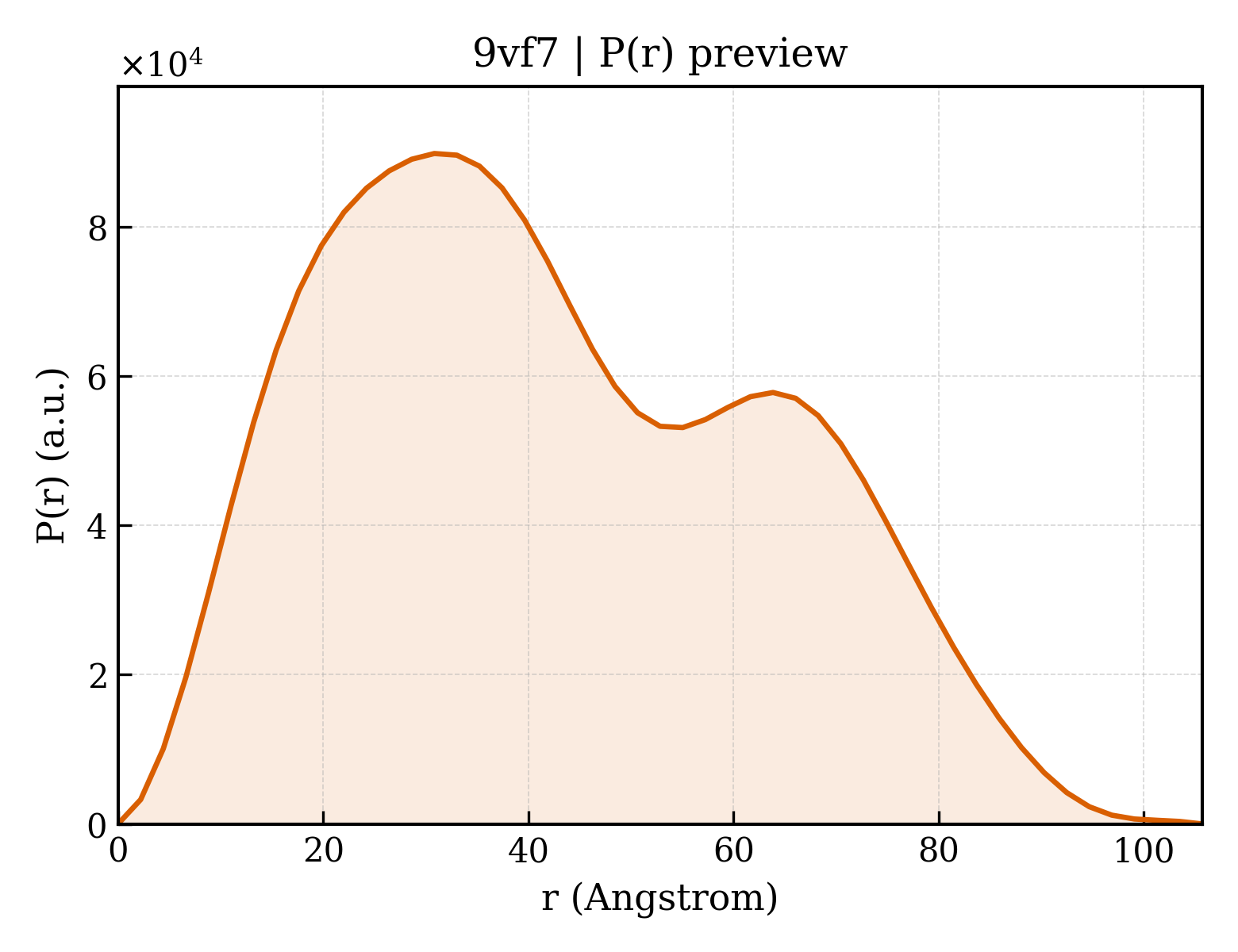

P(r) Distribution
1. Structure Basics
| entry_id | 9vf7 |
| deposition_date | 2025-06-10 |
| title | Structure of Meiothermus ruber Mrub_1259 LOV domain with N- and C-terminal alpha helices (MrLOVe) |
| keywords | LOV, FMN, photoreceptor, fluorescent protein, flavoprotein; FLUORESCENT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 33.12 Å |
| rg_electron | 32.99 Å |
| i0 | 60870300.00 |
| molecular_weight | 62173.0 kDa |
| excluded_volume | 77984 ų |
| envelope_volume | 101310 ų |
| shell_volume | 27521 ų |
| envelope_diameter | 110.6 Å |
| shell_rg | 37.31 Å |
| envelope_rg | 32.43 Å |
| shape_rg | 32.97 Å |
| total_rg | 33.43 Å |
| total_atoms | 4394 |
| n_residues | 556 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 105.7 Å |
| rg_real | 33.36 Å |
| rg_real_error | 0.80 Å |
| i0_real | 6.0870e+07 |
| i0_real_error | 1.0060e+06 |
| rg_reciprocal | 33.27 Å |
| i0_reciprocal | 60870000.0000 |
| total_estimate | 0.6469 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 30.8 Å |
| skewness | 0.325 |
| kurtosis | -0.824 |
| angular_range | — – 0.2400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4368000.0000 |
| n_real_points | 49 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.785; Stabil: 1.000; Sysdev: 0.145; Positv: 1.000; Valcen: 0.773; Smooth: 0.843 |
